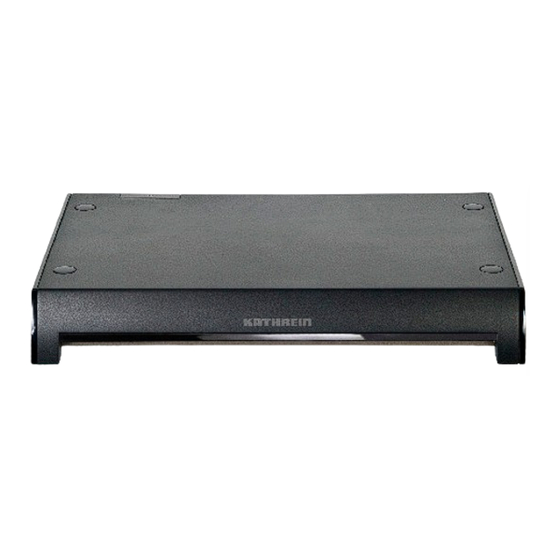

- Page 1 Operating Instructions CAP Converter Control Unit for Camping & Caravan Reception Systems...
-
Page 2: Table Of Contents
CAP Converter Connections ..................6 Installing the CAP Converter ..................7 Connecting the CAP Converter to the WLAN ...................7 Connecting the CAP Converter to other CAP Systems..........7 Change of Location ..........................7 Operating the Turntable Using the External Pushbutton ..............8 6.2.1 Raising the Turntable from the Park Position ............................8... - Page 3 • Restrict cleaning to the outer surface of the unit. Ambient conditions • The CAP Converter and the power supply unit are for indoor use only. • Protect the unit from moisture, dripping and splash water. – Do not operate the unit in damp areas.
- Page 4 General Safety Instructions Note Risk of damage to the unit. Note the following points: Incorrect wiring of the connections Incorrect wiring of the connections can lead to malfunctions or defects in the unit. Overheating Observe the following points, so that the heat generated in the unit is adequately dissipated.
- Page 5 If new software which affects the information in this manual (e.g. changes to functions) is released for your receiver, we will provide a new manual for download at www.kathrein-ds.com if we deem it necessary.
-
Page 6: About These Operating Instructions
These operating instructions describe how to quickly and easily connect the control unit to CAP or HDS systems and put it into operation. All further information can be found in the detailed operating instructions of the CAP or HDS systems at www.kathrein-ds.com. ► Go to www.kathrein-ds.com ▶ Products ▶... -
Page 7: Installing The Cap Converter
3. Open the WLAN settings on your smartphone and select the WLAN network provided by your CAP Converter. The WLAN access data and the network key can be found on the top side of your CAP Converter. 4. Open the CAPcontrol app on your smartphone/tablet. -
Page 8: Operating The Turntable Using The External Pushbutton
S l a v e M a s t e a l c a b c o a x i 1 2 V HDS 50* CAP Converter separate control panel control unit * Available as accessory 8 of 16... -
Page 9: Led Status Display In Conjunction With Cap Systems
Transponder does not exist To return the CAP Converter to normal operation: 1. Check the cause of error. 2. Press the pushbutton once to acknowledge the error so that the CAP Converter can return to normal operation. LED flashes slowly Turntable is in the park position Turntable is moving, e.g. -
Page 10: Operating Hds Systems Using The External Pushbutton
8.1.1 CAP Converter in Standby ✔ The antenna was successfully aligned with a satellite. ► Press the pushbutton. ➯ The CAP Converter switches from standby to normal operation. 8.1.2 Resetting the Turntable ► Keep the pushbutton pressed for 5 seconds. -
Page 11: Led Status Display In Conjunction With The Hdz 66/Hds 166
No connection to antenna To return the CAP Converter to normal operation: 1. Check the cause of error. 2. Press the pushbutton once to acknowledge the error so that the CAP Converter can return to normal operation. Connection to antenna OK,... -
Page 12: Updating The Channel List And Software
5. Switch off the CAP Converter at the mains switch. 6. Switch the CAP Converter on again. ➯ The channel list is loaded automatically when the CAP Converter is switched on. The LED status indicates if the channel list has been loaded successfully or if a problem has occured, see LED Display in Conjunction with CAP Systems, page 9. -
Page 13: Streaming
• Click on the icon circled in red to show or hide the playlist. Double-click on the playlist to switch to the desired channel: The VLC Media Player may be downloaded free of charge from the Internet. The m3u list may be downloaded at www.kathrein-ds.com (country-specific downloads: firmware, config files and channel list) 13 of 16... -
Page 14: Accessories (Not Included)
Accessories (Not Included) Accessories (Not Included) The following accessories are available for the control unit: HDS 50 Order number: 20410070 External control panel • The external control panel HDS 50 allows easy and convenient ope- ration of the CAP 650, 750 und 950 without having to switch on a receiver or TV set •... -
Page 15: Possible Errors
CAP Converter. If there is a connection problem between the CAP converter and the turntable or HDS system, check the cabling. Device information required for a claim under warranty If a claim under warranty is made, we require as much information as possible about your device, e.g. - Page 16 | support@kathrein-ds.com 9360000295/b/PM/0919/GB | Subject to change. KATHREIN Digital Systems GmbH | Anton-Kathrein-Str. 1–3 | 83022 Rosenheim | Germany | Phone +49 731 270 909 70...
