PRESENTATION (Display, keys)
5
4
3
2

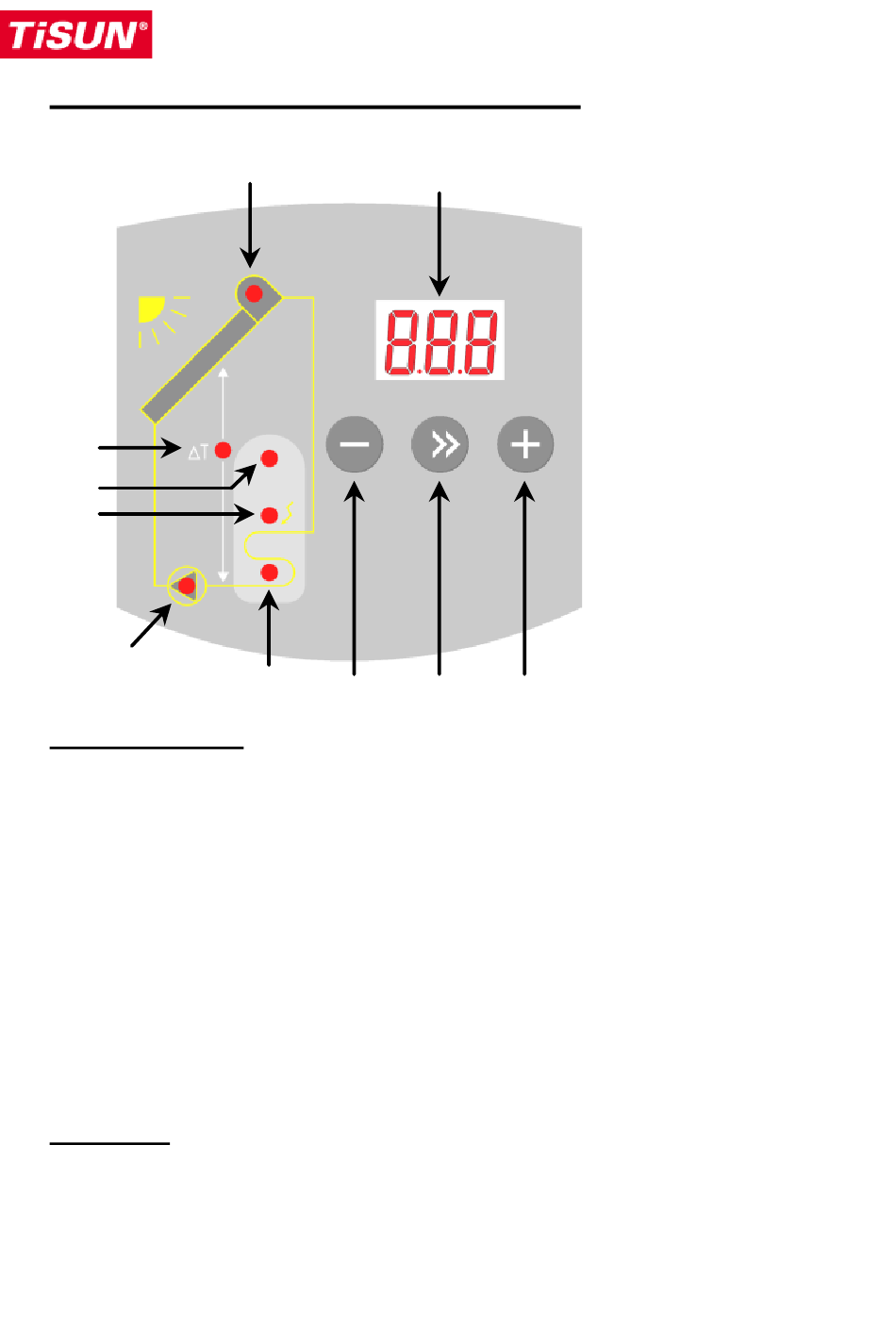

LED and Display

1: Tank bottom temperature indicator
The display "7" shows the measured temperature.
2: Pump indicator
3: Additional heat indicator, blinks when operating.
If lit up the display "7" shows the measured temperature.
4: Max Temperature in the tank (setting level).
dt Difference temperature between the Collector "6" & Tank "1".
5:
(setting level)
Collector temperature indicator (The display "7" shows the
6:
measured temperature).
7: Display (Red).

Key board

A: (-) Minus key (to decrease the current value)
B: (>>) Navigation key
C: (+) Plus key (to increase the current value)
