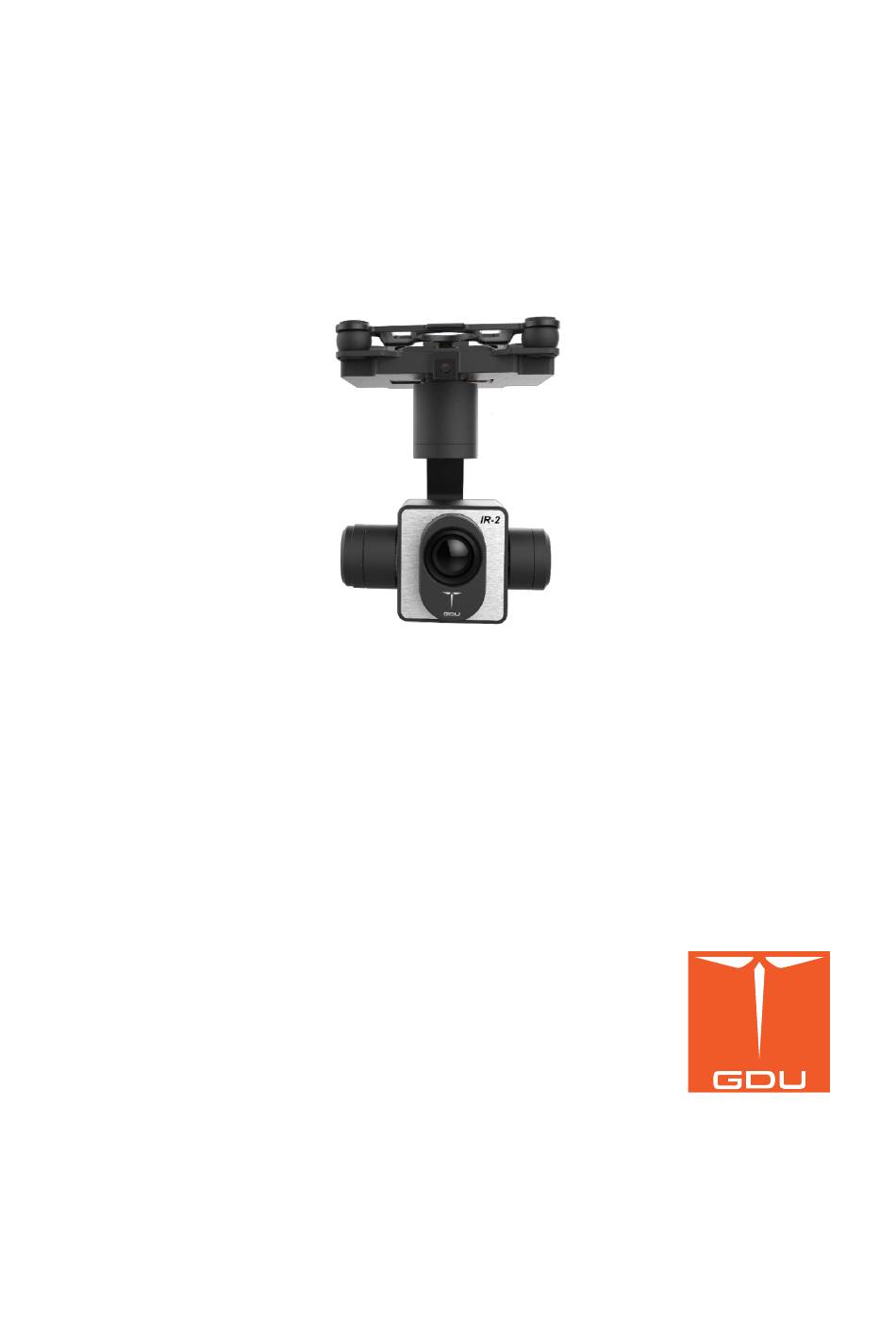

- Page 1 User Manual GTIR800 Infrared Camera V1.0...
-
Page 2: Table Of Contents
Index Disclamer ........................... 3 Product Features ......................... 3 Product Installation ........................3 Camera ............................4 GDU Flight APP ........................5 Maintenance ..........................10 Technical Data ......................... 10... -
Page 3: Disclamer
Dual light source - infrared + visible light The GTIR800 Infrared camera can shoot using two different types of light. It supports light switching and picture in picture mode. Visible light can be used to guide the aircraft and infrared can be used to take pictures of the setting. -
Page 4: Camera
Please insert/remove the SD card when the aircraft power is off. Camera The GTIR800 infrared camera can be used with both the GDU Byrd and GDU SAGA series products. The gimbal uses the brand new position fusion control algorithm, creating a highly precise 3 axis stabilizing platform. -
Page 5: Gdu Flight App
Supported functions Using the GDU SAGA remote as an example, you can take photos or videos by using the photo and video controls. The left dial controls the yaw of the gimbal and the right dial controls the pitch of the gimbal. This allows the user to control the camera’s field of view. - Page 6 ※ GDU Flight App requires systems with iOS 8.0 or above or Android 5.0 or above. Connecting to the App Connect the mobile device to the remote with an USB cable. Turn on the remote and aircraft then run the app.
- Page 7 Press start shooting to enter the camera interface. ① Manual focus adjustment Press +/- to adjust the focus distance. ② One click focus Press to use the one click focus ③ Light cursor temperature test (full screen) Press the icon then the target on the screen to show the temperature of the target.
- Page 8 Display current functions: picture taking/video recording. ⑦ C amera settings Click to unfold camera function parameter settings. Display mode: infrared, visible light in infrared, visible light, infrared in visible light. Image style: white-hot, fulgurite, iron red, hot iron, medical, arctic, rainbow 1, rainbow 2, tint, black-hot.
- Page 9 The App interface language is consistent with the mobile device system language. If you need to change the interface language, please change the system’s language first. ※ The App interface and functions will be continuously updated. Specific details are dependent on the latest version. ※ For more information, please read the “GDU SAGA User Manual”.
-
Page 10: Maintenance
When using the gimbal, if there is severe shaking on the screen, please contact after-sales services. When not using the gimbal, please attach the lens cover to protect the camera. Technical Data GTIR800 Infrared Camera Gimbal Technical Data Model Number GTIR800 ＜440g... - Page 11 horizontal axis. Camera Infrared 800×600 Resolution Visible light 1280×720 Infrared 20mm F1.2 Focal Distance Visible light 3mm F2.2 infrared, infrared picture in picture, visible light, visible light picture in Video Mode picture. Infrared One click zoom, fine focusing adjustment+/- Zoom Mode Visible light One click focus Photo Storage Format...
