Summary of Contents for Aeon Labs Aeotec Door/Window Sensor Gen5

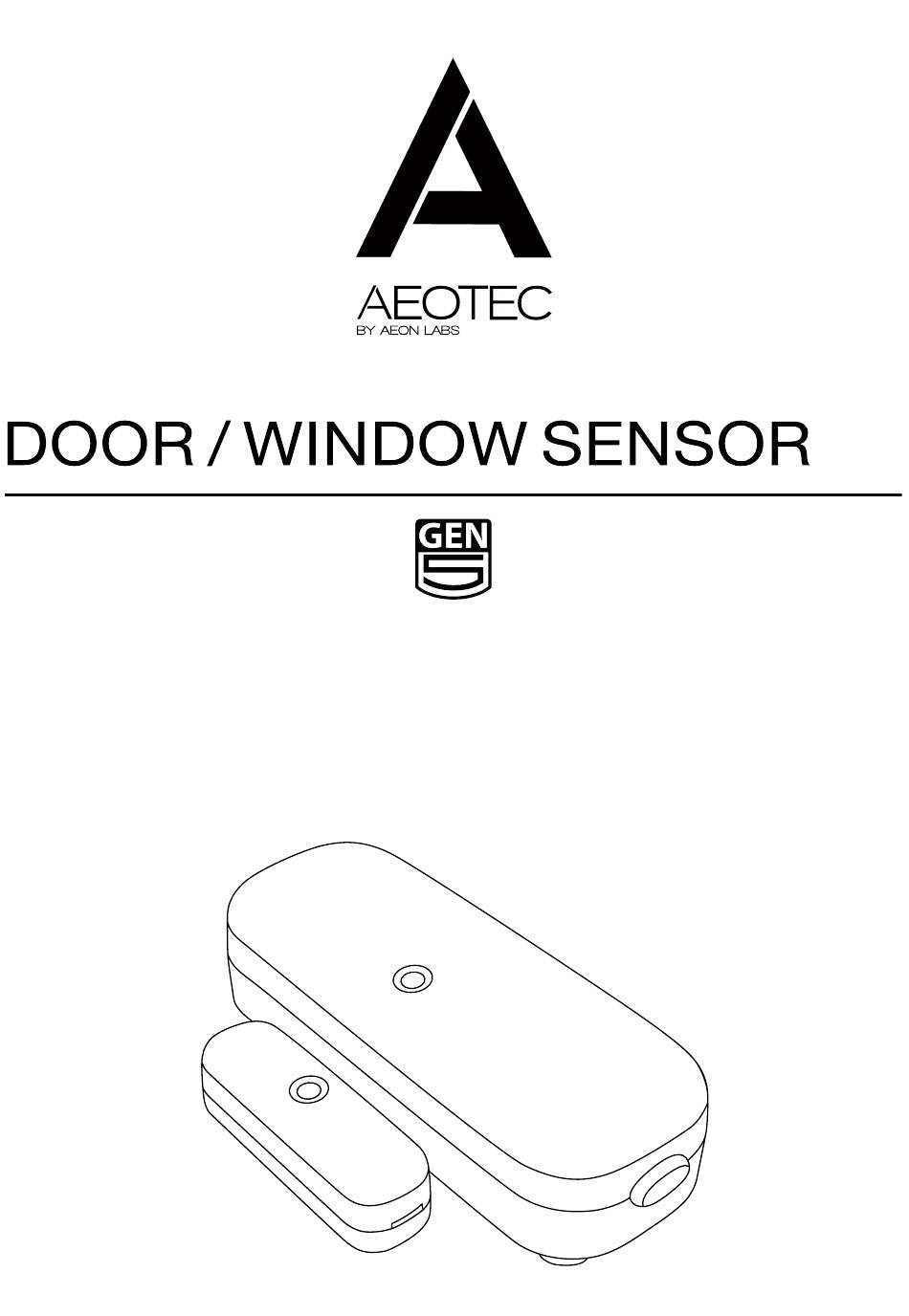

- Page 1 GEN5 View the expanded manual: http://aeotec.com/support...

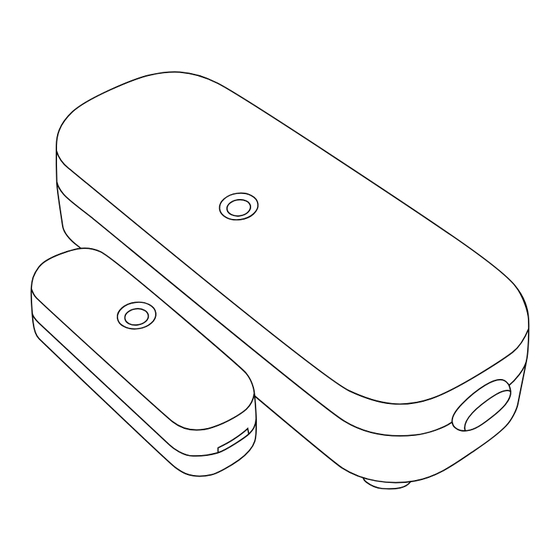

- Page 2 Aeotec by Aeon Labs Door/Window Sensor. The Aeotec by Aeon Labs Door/Window Sensor Gen5 provides your Z-Wave network with the intelligence required for a modern home automation and security system. And it does it all in a smaller, more elegant design crafted to suit any home's decor.
- Page 3 Security Tamper LED Latch Button Switch Hole Hitch Hole Hitch Screw Holes Orientation Dimples Magnet Unit Magnet Unit Outer Sehll Action Button Security Tamper Switch Battery Holder Double-Sided Mounting Tape Sticking Area...
-
Page 4: Quick Start
Quick start. The installation of your Door Window Sensor has two major steps: the Main Sensor and the Magnet. Your Door Window Sensor will use wireless technology to talk to your Z-Wave network once paired to your Z-Wave network. Selecting where you'll place your Door/Window Sensor in your home is just as important as the actual affixing it to the surface. - Page 5 Affix your Sensor plates to a surface. The Mounting plates can be affixed using screws or double- sided tape. If you are using screws, attach both mounting plates to the respective surface using the two 20mm screws provided. If you are using double-sided tape, wipe the two surfaces clean of any oil or dust with a damp towel.
- Page 6 Adding your Sensor to your Z-Wave network. With your mounting plates prepared to hold each component of your sensor, it’s time to add it to your Z-Wave network. Let your Z-Wave primary controller/gateway enter into adding/inclusion mode. Take your Sensor near to your primary controller. Press the Action Button once on your Sensor.
-
Page 7: Advanced Functions
Advanced functions. Send a wake up notification. In order to send your Sensor new configuration commands from your Z-Wave controller or gateway, it will need to be woken Remove your Sensor unit from its Back Mounting Plate, press the Action Button on the back of the Sensor unit and then release the Action Button. - Page 8 gateway. To do this, please refer to the part of their respective manuals that tell you how to remove devices from your network. Put your primary controller into device removal mode. Unlock your Sensor from the Back Mount plate and take the Sensor unit near to your primary controller.
-
Page 9: Technical Specifications
This guarantee made by the company who you purchased the product from includes the transfer of Aeon Labs’ full warranty to... - Page 10 Aeon Labs' sole obligation under the foregoing warranty is, at Aeon Labs' option, to repair, replace or correct any such defect that was present at the time of delivery, or to remove the Products and to refund the purchase price to Company.
- Page 11 Products except as set forth herein. Aeon Labs will pass on to Company all manufacturers’ Material warranties to the extent that they are transferable, but will not independently warrant any Material.
- Page 12 OR THE SALE OR USE OF PRODUCTS SHALL BE DEEMED WAIVED UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM AEON LABS' DELIVERY, OR THE DATE FIXED FOR DELIVERY IN THE EVENT OF NONDELIVERY. THE INDEMNITY AND WARRANTY IN ABOVE ARE EXCLUSIVE AND IN LIEU...
- Page 13 STORE INDOORS WHEN NOT IN USE. SUITABLE FOR DRY LOCATIONS. DO NOT IMMERSE IN WATER. NOT FOR USE WHERE DIRECTLY EXPOSED TO WATER. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
- Page 14 Warning Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. Certifications (regional): Z-Wave Z-Wave Plus registered trademarks of Silicon Labs and its subsidiaries in the United States and other countries FCC ID: XBAFT120 Version:501012000001-AA...
- Page 15 Association information Configuration parameters information...
- Page 17 We have extensive online resources where you can search user guides, release notes, and technical tips, and more. Go to the support page: https://aeotec.freshdesk.com/support/home...
