DriSteem Vapor-logic version 3 Conversion Instructions

Vapor-logic version 3 to Vapor-logic version 6 Field
®
Conversion Instructions: CRUV

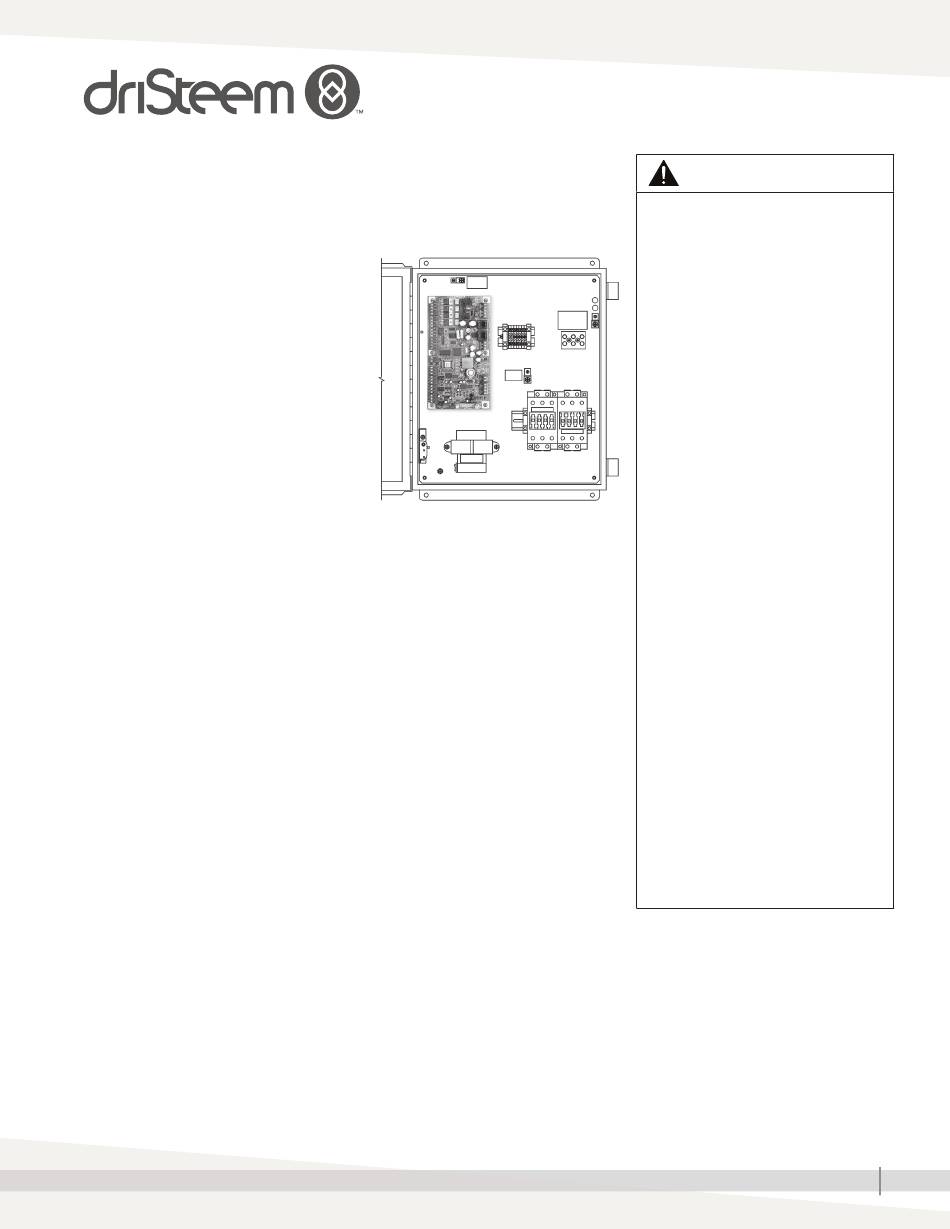

The drawing at right depicts the
Vapor-logic version 3 board orientation
in a CRUV humidifier control cabinet
without SSRs. The board would be
oriented horizontally in a control cabinet
with the SSR option.
These instructions pertain only to CRUV
humidifier units with Vapor-logic control.
This does not apply to CRUV units with
the standard onboard controller.
1. Leave the wires connected to
the Vapor-logic version 3 board
terminals. Use needlenose pliers to pull the terminals off of the pins.
2. Remove the six screws holding the Vapor-logic version 3 board to the
subpanel, and remove the board. When removing the screws, take care
to prevent the standoffs behind the board from falling down the subpanel
and into other electrical components.
Note: The Vapor-logic version 6 board has adhesive-backed standoffs that
adhere to the subpanel. For the best adhesion, make sure the subpanel
surface is clean and dry.
3. Note the Vapor-logic version 6 board orientation shown in Figure 3-1.
Remove the adhesive backing paper from the Vapor-logic version 6 board
standoffs, and press the Vapor-logic version 6 board onto the subpanel
as close as possible to the original footprint of the Vapor-logic version 3
board.
4. See Figure 3-1. The Vapor-logic version 3 disconnections and
Vapor-logic version 6 connections needed for this conversion are labeled.
Note: If any wires are too short to reach their new locations on the
Vapor-logic version 6 board, add pigtail extensions to them.
5. Skip this step if the humidifier does not have the SSR option:
Disconnect wire #434 from Vapor-logic version 3 terminal 34, and
connect it to Vapor-logic version 6 P19 plug terminal +SSR. Disconnect
wire #435 from Vapor-logic version 3 terminal 35, and connect it to
Vapor-logic version 6 P19 plug terminal –BL.
6. Disconnect the wires from Vapor-logic version 3 terminals 1, 3, and
5, and connect them to the following Vapor-logic version 6 P17 plug
terminals: Connect wire #401 to FILL, wire #403 to DRAIN, and wire
#405 CT1.
Humidifiers
®
Vapor-logic version 3 board in a control cabinet
VAPOR-LOGIC VERSION 3 TO VAPOR-LOGIC VERSION 6 FIELD CONVERSION INSTRUCTIONS: CRUV HUMIDIFIERS
WARNING
Fire and electrical shock hazards
This page provides important
safety instructions; it is intended to
supplement — not replace — the
humidifier's Installation, Operation,
and Maintenance Manual (IOM). Read
the IOM that was provided with the
humidifier before performing service
or maintenance procedures on any
part of the system. Failure to follow
all warnings and instructions could
produce the hazardous situations
described here and in the IOM,
resulting in property damage, personal
injury, or death.
If the IOM is missing, go to
www.dristeem.com to download a
replacement.
Improper installation, adjustment,
alteration, service, maintenance, or
use can cause fire, electrical shock,
and other hazardous conditions. These
hazardous conditions could cause
personal injury, property damage, or
death.
To prevent hazardous conditions, read
all warnings; lock all power disconnect
switches in the OFF position before
removing any access panels; and
consult a qualified installer, service
agency, or your distributor or branch
for information or assistance. The
qualified installer or agency must use
only factory authorized and listed kits
or accessories when modifying this
product.
Note: If literature shipped with the humidifier
is not available, historical literature is
available at www.dristeem.com.
DriSteem humidifiers are warranted according
to the terms and conditions of the standard
two-year Limited Warranty effective when the
humidifier was purchased. See the literature
that was shipped with the humidifier for
warranty information.
