Installation Instructions
teleCARE M
Mounting the backplate
When mounting the backplate on an
uneven surface, be sure not to bend
the backplate. Just use enough
pressure to tighten the screws without
bending the backplate.

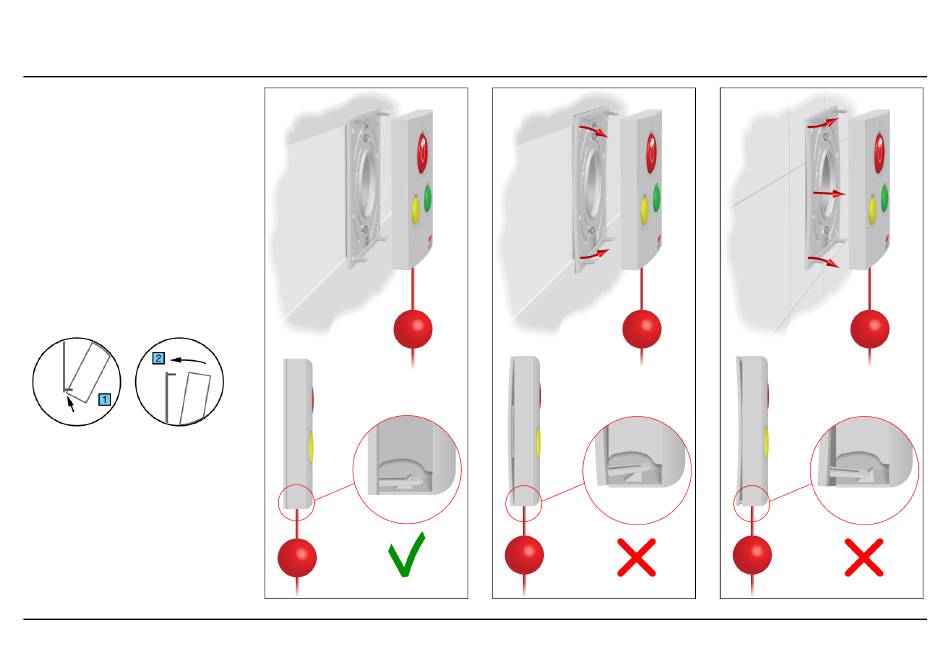

Attaching the pull-cord module
Step 1: Place the bottom of the switch
module over the lower snap fittings of
the backplate.
Step 2: Hold the bottom of the switch
module in place while moving the top
towards the backplate until it locks
onto the upper snap fittings.
Because the pull-cord module is snap
fitted on top of the backplate, it is
possible that when excessive force is
used, the pull-cord module can be
pulled off of the backplate just before
the safety brake balls come apart. To
minimize the risk of pulling it off,
make sure that the backplate is
mounted straight.
