To Service The Seat Slide Assembly - Midway Cruis'n Exotica Operation Manual

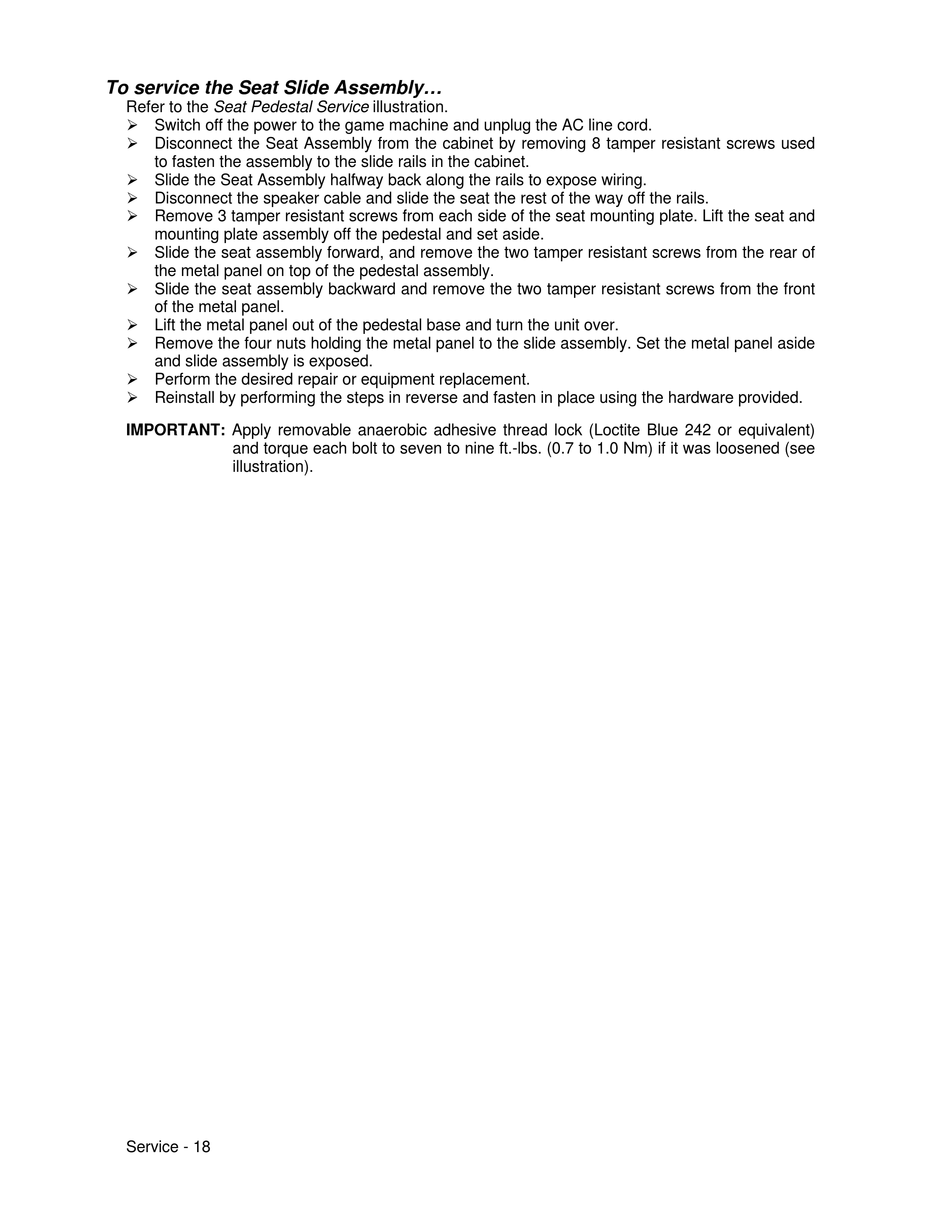

To service the Seat Slide Assembly...

Refer to the Seat Pedestal Service illustration.
Ø Switch off the power to the game machine and unplug the AC line cord.
Ø Disconnect the Seat Assembly from the cabinet by removing 8 tamper resistant screws used
to fasten the assembly to the slide rails in the cabinet.
Ø Slide the Seat Assembly halfway back along the rails to expose wiring.
Ø Disconnect the speaker cable and slide the seat the rest of the way off the rails.
Ø Remove 3 tamper resistant screws from each side of the seat mounting plate. Lift the seat and
mounting plate assembly off the pedestal and set aside.
Ø Slide the seat assembly forward, and remove the two tamper resistant screws from the rear of
the metal panel on top of the pedestal assembly.
Ø Slide the seat assembly backward and remove the two tamper resistant screws from the front
of the metal panel.
Ø Lift the metal panel out of the pedestal base and turn the unit over.
Ø Remove the four nuts holding the metal panel to the slide assembly. Set the metal panel aside
and slide assembly is exposed.
Ø Perform the desired repair or equipment replacement.
Ø Reinstall by performing the steps in reverse and fasten in place using the hardware provided.
IMPORTANT: Apply removable anaerobic adhesive thread lock (Loctite Blue 242 or equivalent)
and torque each bolt to seven to nine ft.-lbs. (0.7 to 1.0 Nm) if it was loosened (see
illustration).
