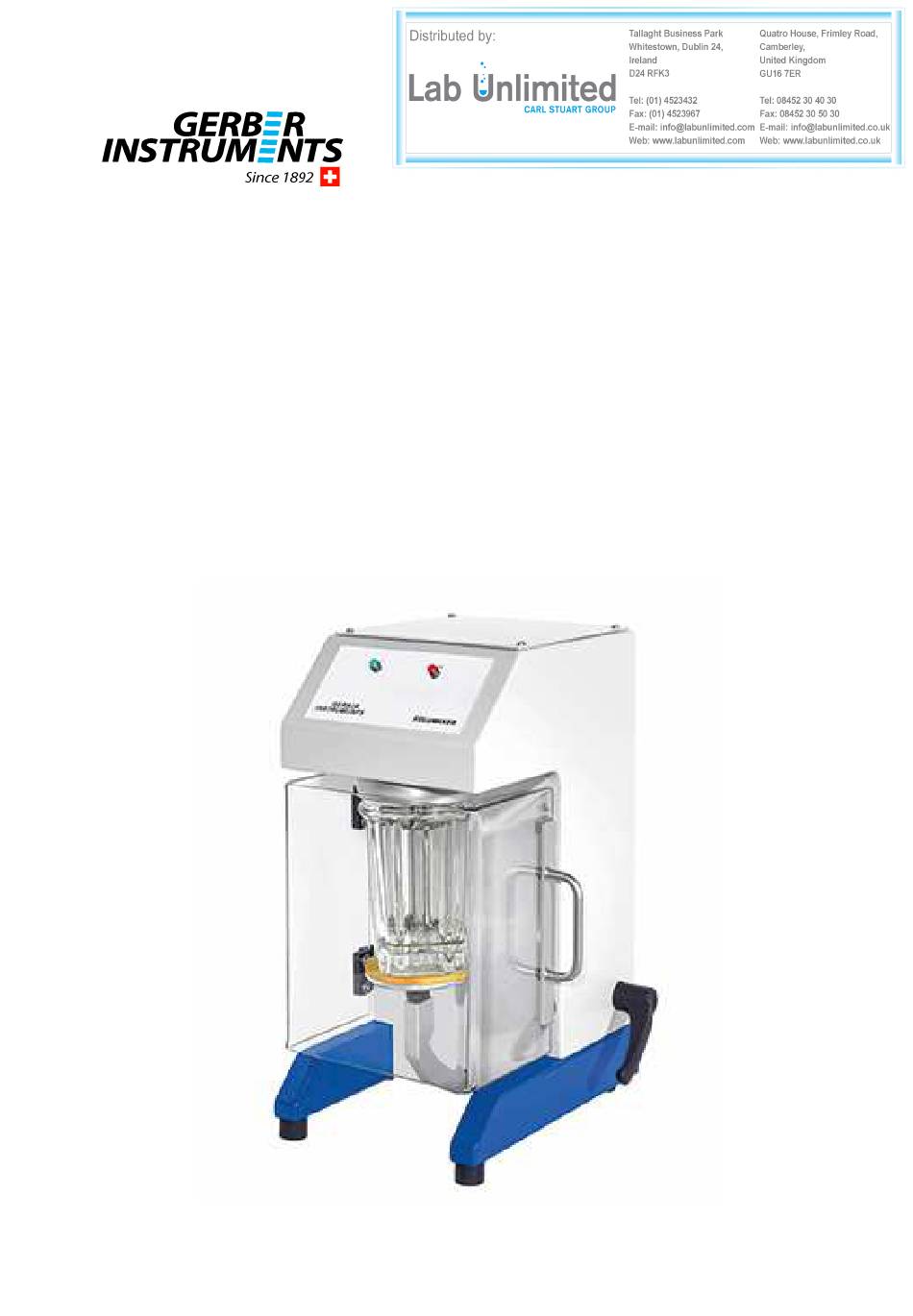

- Page 1 Solumixer Standard with safety door OPERATING INSTRUCTIONS...
-
Page 2: Table Of Contents
Operating Instructions Solumixer Standard Table of contents: Introduction Use of Solumixer Description Ambient conditions Understanding the operating instructions Safety Instructions Description Solumixer Standard Unpacking and Checking the Solumixer Unpacking Checking Installation Daily Work Cleaning Packaging Disposal 10. Technical Service 11. Warranty 12. -
Page 3: Introduction
Operating Instructions Solumixer Standard Introduction Use of Solumixer The Solumixer is designed for the determination of the solubility of milk powder, in accordance with the instructions of the American dairy products Institute (ADPI) and of general application for the determination of the solubility of various powder. -
Page 4: Safety Instructions
Never touch moving parts. (with the safety door that is hardly possible) Don’t use the Solumixer when cable or plug is damaged. When using accessories that are not sold by Gerber instruments, persons could be injured. Any kind of change or modification of this product is not recommended. -
Page 5: Description Solumixer Standard

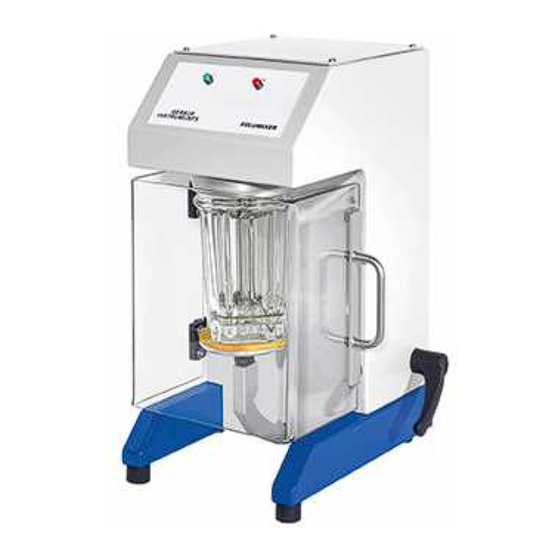

Operating Instructions Solumixer Standard Description of Solumixer Standard Start button Stop button Glass jar and stirrer blade Lever Glass holder Safety door Gerber Instruments AG Version 1.1 (05/2016) -
Page 6: Unpacking And Checking The Solumixer
Operating Instructions Solumixer Standard Unpacking and checking the Solumixer Unpacking Put the packaging box on the floor. Remove the rest of the packaging material. Take the Solumixer and the glass jar out of the packaging and put all parts on a suitable surface. -
Page 7: Daily Work
Operating Instructions Solumixer Standard Daily work Open the safety door. Push the lever up. The Glass holder thus moves downward. Fill the glass with sample material. Put the glass jar under the stirrer blade. Push the lever down, till it is fixed. Now the glass jar is fixed. -
Page 8: Cleaning
Operating Instructions Solumixer Standard Cleaning Switch off the main switch (back panel). Clean the surface of the Solumixer with a moist, lint-free cloth. The shaft of the mixing knife can be cleaned with water with the mixing knife. Packaging The device will be delivered in a special packaging. -
Page 9: Warranty
Operating Instructions Solumixer Standard 11. Warranty Gerber instruments warrants that this product during the period of 2 years from the date of delivery or date of installation is free from defects. Prerequisite for this intended use, complying with the instructions of this manual as well as the use original Gerber spare parts. -
Page 10: Specifications
Operating Instructions Solumixer Standard 14. Specifications Speed/Time 3600 rpm, 90 sec. Power 50 - 60W Voltage 115 or 230 VAC (50/60 Hz) Dimensions (WxDxH) 205 x 280 x 435 mm Net weight 12 kg Gross weight 15 kg Warranty 2 years Gerber Instruments AG Version 1.1 (05/2016)
