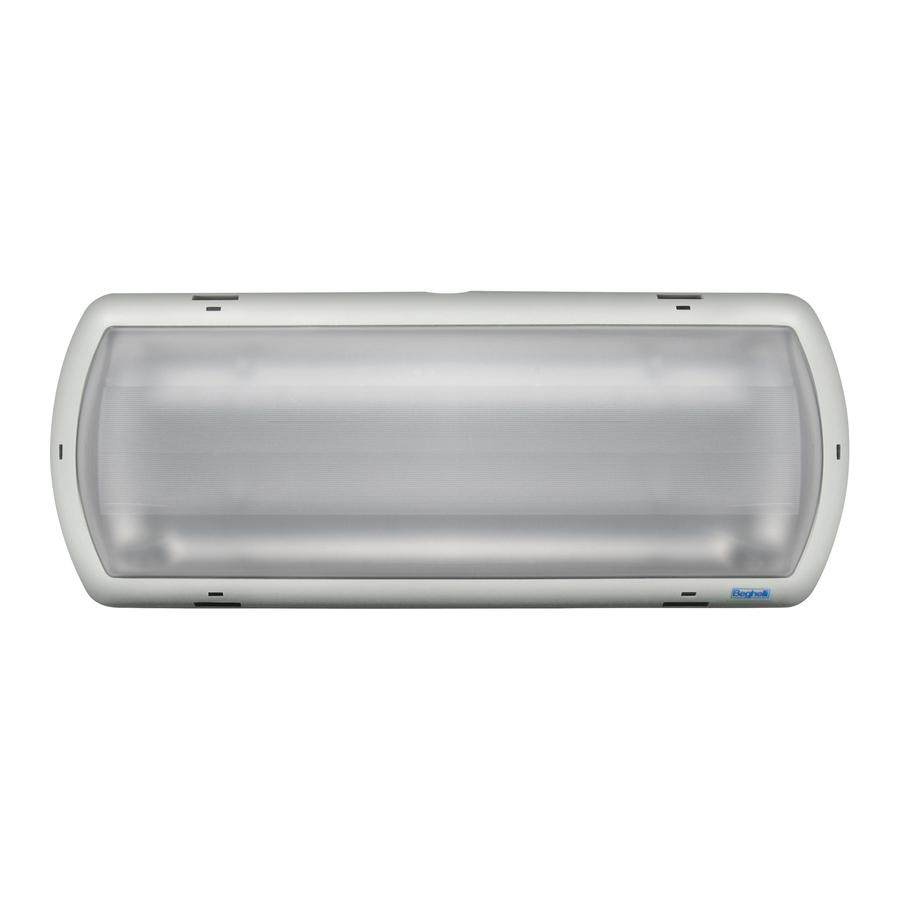

Beghelli Tempesta Test Manual

When using electrical equipment, basic safety precautions should always be followed including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Turn off power supply before attempting to install the unit.
3. Do not let power cords touch hot surfaces.
4. Do not mount near gas or electric heaters.
5. Equipment should be mounted in locations where unauthorized personnel will not readily subject it to tampering.
6. The use of accessories not recommended by Beghelli, may cause an unsafe condition, and will void the warranty.
7. Do not use this equipment for other than its intended purpose.
8. Qualified service personnel should perform servicing of this equipment.
9. Consult building code for approved wiring and installation.
10. The fixture must be grounded to avoid potential electric shock.
11. SAVE THESE INSTRUCTIONS!
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
After unit is properly installed according to Installation Instruction Sheet and with AC power supplied, the LED strips will
be ON if it is a Normally ON fixture, the dual colour LED indicator will be green, and the self-diagnostic test function will
automatically initiate. The dual colour indicator points out the current unit status. The green colour indicates the normal
service/ green blinking indicates testing. The red colour indicates the service alert, please refer to Diagnostic Display for
detail. The green/red flash indicates the unit under charging. The indicator will be off at emergency mode.

SELF-DIAGNOSTIC SERVICE

The self-diagnostic function is factory pre-set. Any field adjustments are not required. The automatic self-diagnostic
performs the following tests and the internal counter will begin from the date of installation:
i) 5 minutes discharge and self-testing every 30 days; after AC power is applied
ii) 90 minutes discharge and self-testing every 6 months; after AC power is applied
At all times the following are being monitored: Battery disconnection, LED failure, battery charging operation and the
battery test failure.

DIAGNOSTIC DISPLAY

The Auto-Test Self-Diagnostics provides a visual indication of unit status via a multi-coloured LED. The LED may indicate
just one or any combination of various conditions as follows:
Steady Green:
Flashing Green:
Flashing Red/Green:
Steady Red:
Flashing Red:
Red Double Blink:
Red Three Blink:
Beghelli U.S.A., 3250 Corporate Way, Miramar, Florida, Tel: (954) 442-6600 Fax: (954) 442-6677
926000397
INSTRUCTIONS

IMPORTANT SAFEGUARDS

INTRODUCTION

Normal operation
Testing under way
High Charging
Battery Disconnected
Battery Test Failure
Battery Charging Failure
LED Failure
Tempesta™ LED Self-Diagnostics Test
10/23/18
