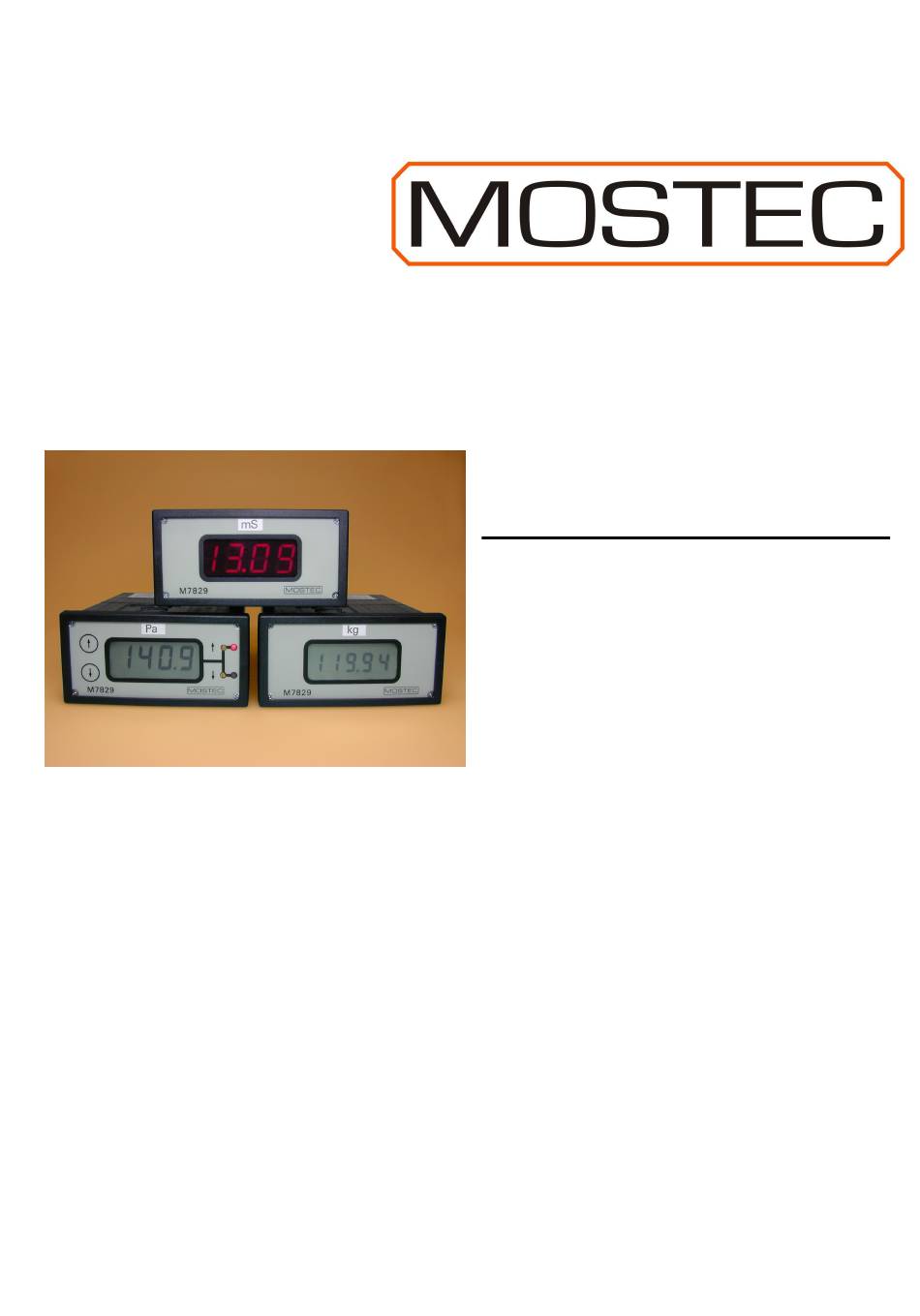

- Page 1 MOSTEC AG Elektronische Mess- und Regelsysteme CH-4410 Liestal, Switzerland TEL. +41 61 921 40 90 +41 61 921 40 83 Internet: www.mostec.ch E-Mail: info@mostec.ch Operating Manual Digital Display M7829A (AR)
- Page 2 Operating Manual A. Warranty Mostec warrants this product to be free of manufacturing defects for a 2-year period following the original date of purchase. Within this 2-year period, defective products will be repaired free of charge provided that the defect occurred during normal operation.
- Page 3 M7829 Operating Manual B. Technical description The M7829AR digital display is used to check or control any type of current/voltage signal. It converts the input signal to any desired display between -1999 to +1999. The displayed value can then be monitored or controlled by two alarm contacts. Those alarm contacts can be set independently.
- Page 4 3) set the input signal to maximum value, adjust the display with the "DVM MAX" screw and the signal output with the "mA MAX" screw. 9 10 11 12 13 14 Back panel with the terminals V1.01 02.12.02 © 2000 MOSTEC AG...
