Aolynk EP302 IP Phone Quick Start-(V1.00)

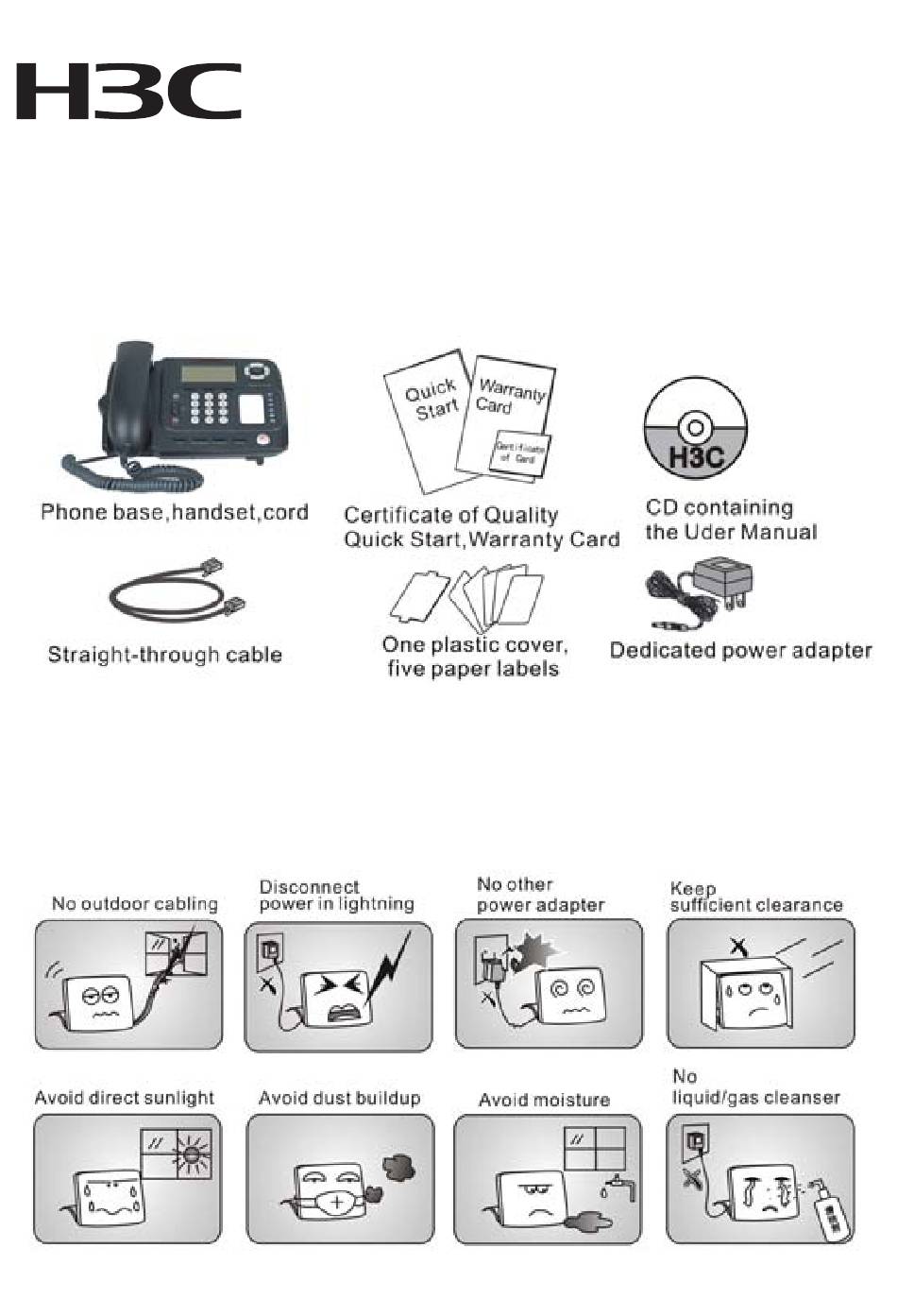

1 Packing List

If any item is broken or missing, contact your local dealer timely.

2 Safety Instructions

Use the phone indoors only. Outdoor cabling is prohibited. Read the technical
specifications of the phone before installing and using the phone, and follow the
instructions below to ensure its proper operation.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aolynk EP302 and is the answer not in the manual?

Questions and answers

Related Manuals for H3C Aolynk EP302

Summary of Contents for H3C Aolynk EP302

  • Page 1: Packing List

    Aolynk EP302 IP Phone Quick Start-(V1.00) 1 Packing List If any item is broken or missing, contact your local dealer timely. 2 Safety Instructions Use the phone indoors only. Outdoor cabling is prohibited. Read the technical specifications of the phone before installing and using the phone, and follow the...
  • Page 2 3 Introduction Aolynk EP302 IP Phone (hereinafter referred to as the EP302) is specially designed for business users. With elegant appearance and rich features, the EP302 works together with an XE series IP PBX to present a wonderful VoIP world to users.

  • Page 3: Keys And Leds

    4.2 Keys and LEDs Item Key/LED Description Used to enter the numbers 0 to 9 and symbols asterisk (*) and pound (#). Among these keys, 2 to 9 can be used to 0 to 9, *, # enter numbers 2 to 9 and letters A(a) to Z(z), and 1 can be used to enter the number 1 and some special characters, such as dot (.) and hyphen (-).
  • Page 4 ON: The speaker phone function is being used. Speaker LED OFF: The speaker phone function is not being used. ON: The mute function is being used. MUTE LED OFF: The mute function is not being used. ON: The Call Forward to Voice Mailbox function is enabled. OFF: The Call Forward to Voice Mailbox function is disabled.

  • Page 5: Cable Connections

    5 Cable Connections Before you use the phone, connect the handset, dedicated power adapter and LAN cable to the bottom of the phone correctly as illustrated in the following figure. The connection of the phone to the PC is optional. The EP302 can be powered through the dedicated power adapter, or through the Ethernet (provided that the device connected to the EP302 LAN port is PoE-capable).
  • Page 6 (provided by the network administrator), go to the next step. Otherwise, go to step 6. 2. Power on the EP302 (or power cycle it if it is H3C Model ep302- already powered on). Press MENU when the Wait for NCP message on the right appears.
  • Page 7 8. Press MENU and select 6. Advanced Settings > 1. Network Settings > 1. Primary PBX IP. Input the primary PBX IP address and press OK to save your settings. Press Back to return to the Advanced Settings page. 9. Select 4. Account Info. Enter the phone number and password, and then press OK.

  • Page 8: Using The Phone

    7 Using the Phone The operations on the EP302 to receive a call, use the speaker phone function and redial a number are the same as on other regular phones, and thus will not be elaborated in this manual. The following sections describe other common functions of the EP302. 7.1.1 Place a call Pick up the handset, dial the number and press the Call soft key.
  • Page 9 Press the line key for the call to user B, and dial user B’s telephone number. When finishing talking with user B, press the line key corresponding to the call with user A to resume the call with user A and end the call with user B at the same time.
  • Page 10 Note: For more information about the features of the EP302, refer to the user manual in the CD that came with the phone. Alternatively, you can visit the Website www.h3c.com to download the latest software and user manual for your EP302.
  • Page 11 8 FAQs 8.1.1 How can I enter alphabetic characters in the LCD configuration mode? The EP302 provides a similar input method as a cell phone for you to input alphabetic characters. The number keys on the keypad can also be used to input letters. For example, the number key 2 can be used to input “2”, and also letters a, b, c, A, B, and C.

  • Page 12: Technical Specifications

    –10°C to +70°C (14°F to 158°F) Operating humidity 20% to 85% (noncondensing) Storage humidity 10% to 90% (noncondensing) © 2006-2007 Hangzhou H3C Technologies Co., Ltd. Address: 310 Liuhe Road, Zhijiang Science Park, Hangzhou 310053, P. R. China Website: http://www.h3c.com E-mail: soho@h3c.com...
