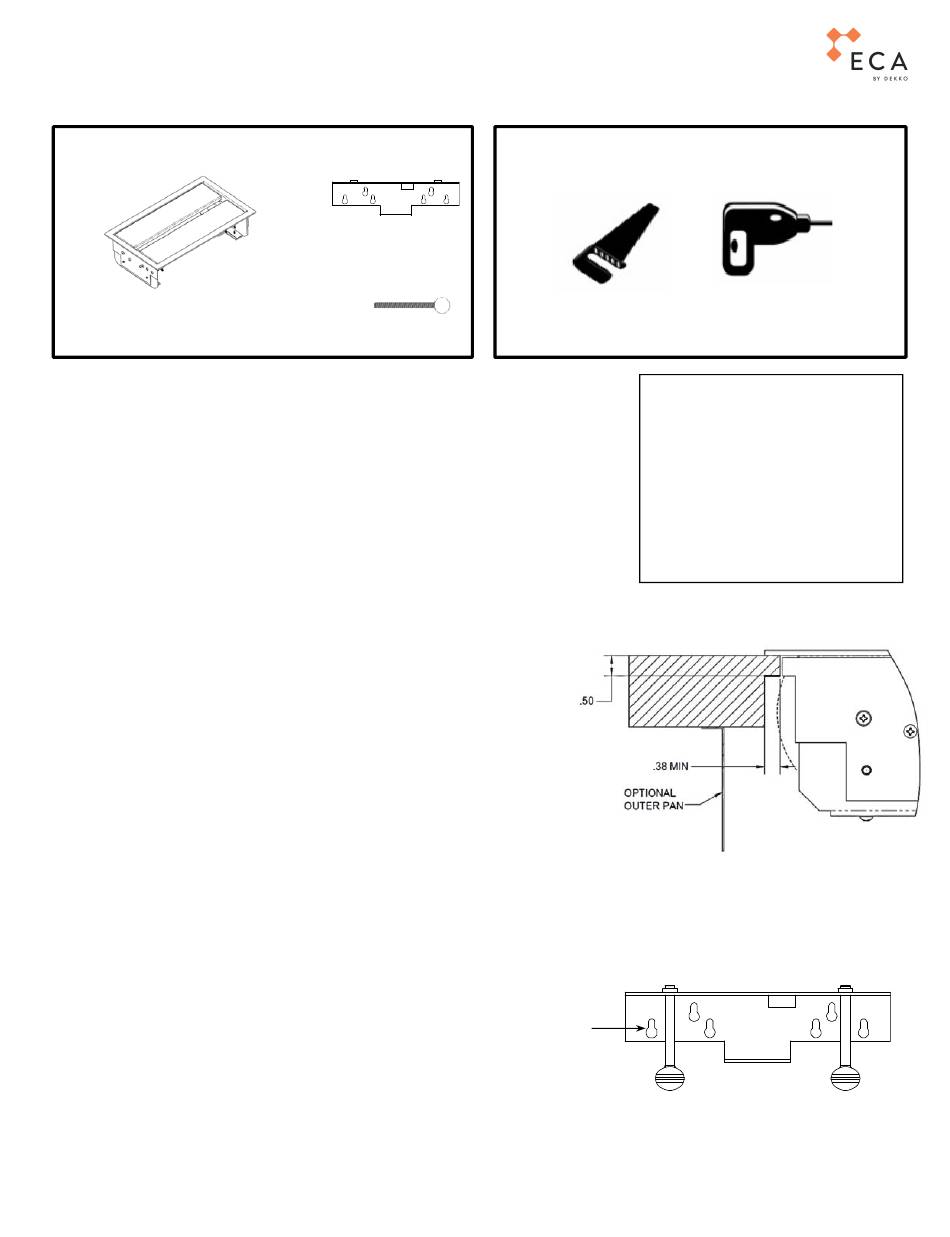

Dekko ECA OASIS Installation Manual

OASIS™ & OASIS™ MINI INSTALLATION
Components & Hardware
A) Oasis or Oasis Mini
Qty. 1
(Oasis Mini Shown)
For use with: This product fits tables .88" – 2" thick.
1‐
Locate and cut the hole for the Oasis or Oasis Mini based on the
chart to the right (.125" max corner radii). Note undercut
required for lid clearance along both long sides (see Detail A & C).
Insert the Oasis or Oasis Mini (A) into the cutout from above.
2‐
Key slots in clamps (B) engage over T-studs on Oasis's (A)
side plates, and thumb screws (C) thread into clamps and
tighten against the underside of the table. Use outermost
key slots on clamps for Oasis & Oasis Mini (see detail B & C).
Note: inner key slots on clamp (B) are not used for
this product.
3‐
Connect all power and data cabling as needed.
4‐
Check lids for smooth and uninterrupted movement.
10 Mountain View Drive | Shelton, CT 06484 | P: 800-521-3175 | www.electri-cable.com
9065-0099 REV M
B) Clamp,
Qty. 2
C) Thumb Screw,
Qty. 4
© ECA– January 2017—Product specifications subject to change without notice
Tools Needed
CUTOUT SIZES
Cutout
Width
Cutout
Length*
*Undercut required along this length
Use outer
key slots for
Oasis & Oasis Mini
Oasis Oasis Mini
8.25" 8.25"
29.12" 14.12"
Detail A
Detail B
Page 1 of 2
