- Page 1 JY-8010 SERIES LED BICYCLE LIGHT...
-
Page 2: Product General Description
User manual Thank you for purchasing JY-8010 series Bicycle Light Device. This user manual has been specially designed to guide you through the functions and features of the device. 1. Product general description ● Mode: 100%Brightness-50%Brightness- Flashing-Off (Press the button to change the mode ;... - Page 3 ● Waterproof grade: IPX4 ● High efficiency orange peel reflector ● 6061-T6 Aluminum alloy body, anodized anti-abrasive finish ● Easy mount O-rings ● Cable length: 65CM ● Automatic shift function: the brightness will be shifted from 100% to 50% if the temperature of the device exceeds the safety temperature.
- Page 4 Green —100~75% Blue — 75~50% Yellow — 50~25% Red — 25~5% Flashing Red — 5% to Off...
-
Page 5: Led Specifications
2. LED specifications 【Light source】CREE XML-T60 【Luminous flux】1000 lumens 【LED lifespan】50,000 hours 3. Battery specifications ● 4*18650 Li-ion batteries: 7.4V/4.4AH ● Batteries lifespan: 500 cycles of charging and discharging ● The battery capacity will fall by less than 10% after 500 cycles of charging and dis- charging ●... - Page 6 4. Operation of charging The battery has been partially charged at the factory.When charging is needed, please do as follows: ● Connect the charger to a wall outlet ● Connect the charger to the battery Green- fully charged Red- charging...

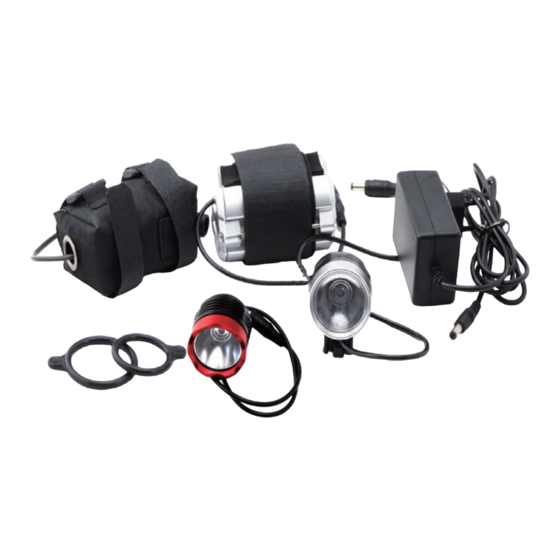

- Page 7 5. JY-8010 series Components ⑴ Head light A ⑷ Battery B ⑵ Head light B ⑸ Charger ⑶ Battery A ⑹ O-rings (2 PCS) ① ② ③ ④ ⑤ ⑥...
- Page 8 JY-8010 series include 4 models: Ⅰ JY-8010A-1：②+③+⑤+⑥ Ⅱ JY-8010-1：②+④+⑤+⑥...
- Page 9 Ⅲ JY-8010A-2：①+③+⑤+⑥ Ⅳ JY-8010-2：①+④+⑤+⑥...
- Page 10 6. Assembling (a) Put the O-ring on the head light (b) Fit the light on the handlebar with the O-ring (c) Wind the strap to the tube and make sure the battery is tightly fastened...
- Page 11 (d) Connect the cables of the battery and the head light...
- Page 12 7. Warning Read instructions carefully before use. Failure to comply with the safety instructions may lead to damage to the charger and\or batteries and may cause serious injury to the user or other person. ● Keep out of reach of children ●...
- Page 13 ● Do not use the device while charging or touch your device with wet hands ● Do not drop or cause an impact to the charger or the battery, and never crush or puncture the battery ● Do not charge the battery with chargers that are not approved by the manufacturer ●...
- Page 14 ● Always store the batteries fully charged ● Do not touch the liquid if the battery is leaking. If contacted, get medical help right away. ● Prevent batteries from contacting metal items, as this can create a connection between the + and – terminals of the device and lead to temporary or perma- nent battery damage ●...
- Page 15 8. Suggestion ● We recommend that light and battery should be separated for long-term storage ● We recommend that the batteries should be charged every half a year to prevent over discharge during long-term storage...
