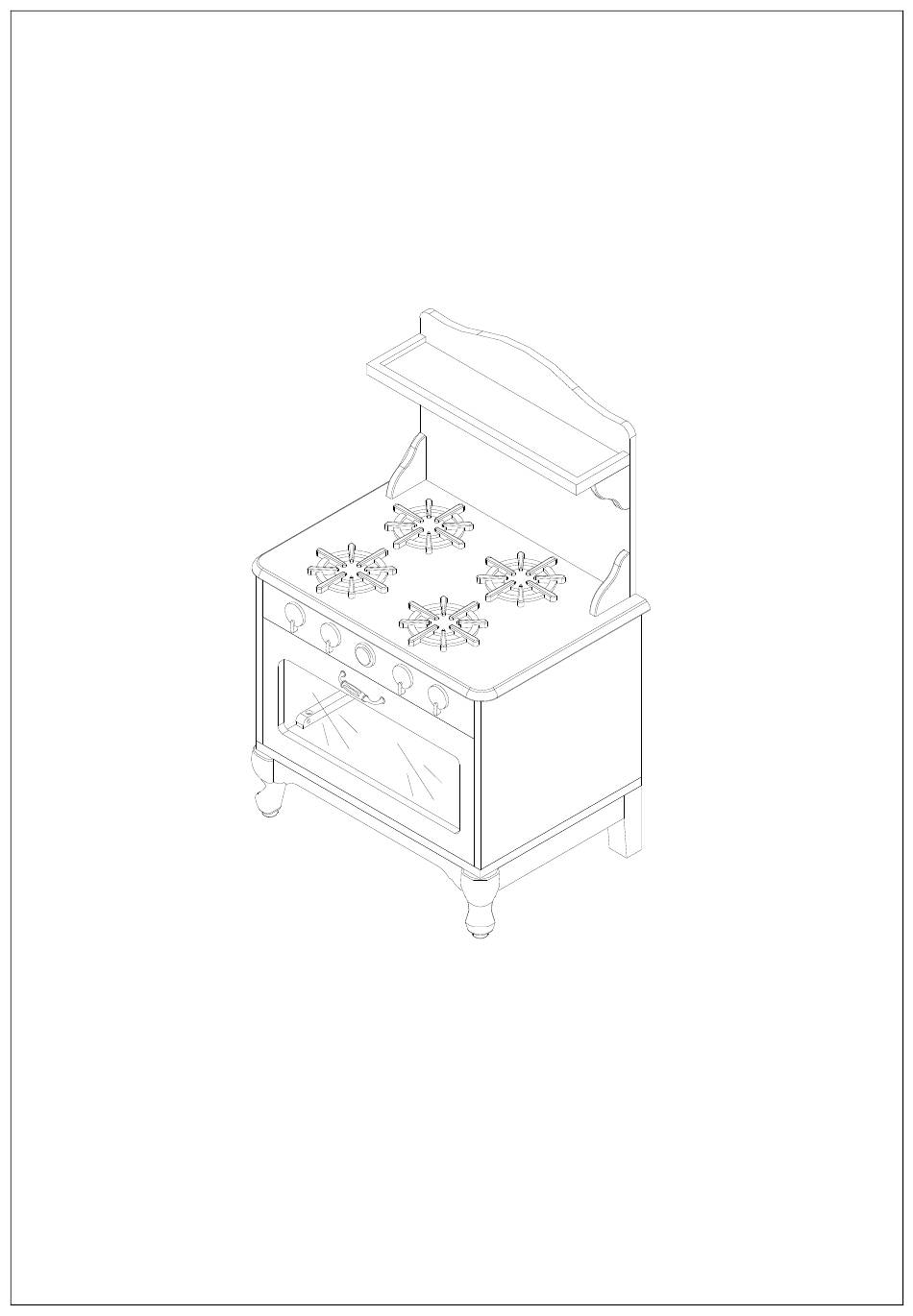

- Page 1 FARMHOUSE KITCHEN OVEN Date: 8‐Aug‐13 www. potterybarnkids.com ...
- Page 2 The use of power tools to aid in assembly is not recommended. Power tools can damage hardware and split wood. The illustrations provided allow for easier assembly when used in conjunction with the assembly instructions. It may take 2 hours or more to assembly your Farmhouse Kitchen Oven. Parts Included: Back top Top Tray...
- Page 3 Hardware Included: Door Catch Female Door Catch Male Flat Washer Spring Washer Screw Screw Screw Screw 10mm 12mm 15mm 25mm ( i ) ( j ) Bolt Bolt Screw Dia. 1/4”x1” Dia. 1/4” x1-1/2” 12mm ...
- Page 4 1. Attach Legs (M and N) to Bottom Panel (L) using Bolt ( j ), Spring Washer (d) and Flat Washer (c). Loosely tighten the bolts, and then tighten with Allen Key. Dia. 1/4” x 1-1/2” Arrow to Front ...
- Page 5 3. Attach Shelf (J) to the Left Side Panel (F) using Bolt ( i ), Spring Washer (d) and Flat Washer (c). Loosely tighten the bolts, and then tighten with Allen Key. Dia.1/4” x 1” 4. Attach assembly in step 3 to Right Side Panel (G) as shown. Insert Bolt ( i ), Spring Washer (d) and Flat Washer (c), loosely tighten the bolts, and then tighten with Allen Key.
- Page 6 5. Attach assembly in step 4 to Bottom Panel (L) using Bolt ( i ), Spring Washer (d) and Flat Washer (c). Loosely tighten the bolts, and then tighten with Allen Key. Dia.1/4” x 1” ...
- Page 7 7. Align the holes on Back Panel (K) with the pre-drilled holes on Shelf (J), insert the Screws (h) and tighten with Phillips head screwdriver. 25mm 8. Attach Upper Apron (C) to the Top Tray (B) using Bolt (j) and Spring Washer (d), tighten with Allen Key. Dia.1/4”...
- Page 8 9. Attach Lower Apron (D) to Back Top (A) using Bolt ( i ), Spring Washer (d) and Flat Washer (c). Loosely tighten the bolts, and then tighten with Allen Key. Dia.1/4” x 1” Countersink hole towards bolt 10.
- Page 9 11. Attach assembly in step 8 to assembly in step 10 as shown, insert Bolt ( i ), Spring Washer (d) and Flat Washer (c). Loosely tighten the bolts, and then tighten with Allen Key. Insert Screws (h) as shown and tighten with Phillips head screwdriver. 25mm Dia.1/4”...
- Page 10 13. Attach top assembly in step 12 to base assembly in step 7, carefully turn it onto its side lying on ground. Insert Bolt ( i ), Spring Washer (d) and Flat Washer (c) as shown. Loosely tighten the bolts, and then tighten with Allen Key.
- Page 11 15. Turn the Oven upright. Attach Door ( I ) to Bottom Panel (L) using Screw (f), tighten with Phillips head screwdriver. Attach Door Catch male (b) to Door ( I ) using Screw (e), tighten with Phillips head screwdriver . 10mm 12mm 16.
- Page 12 17. Attach Lid Stay (P) to Right Side Panel (G) and Door ( I ) using Screw (k), tighten with Phillips head screwdriver . 12mm 18. Close the door and check if the door catch can be matched very well. If not, slightly loose the screws of the door catch female on left side panel, adjust it to be matched as shown, and then tighten up the screws.
- Page 13 Adjusting the levelers: Due to an uneven floor, the furniture may not sit level due causing it to wobble. If the furniture wobbles, determine which corner does not touch the ground correctly. With two people follow these steps: 1. Carefully elevate the item slightly to provide access to the levelers attached to the bottom. 2.
