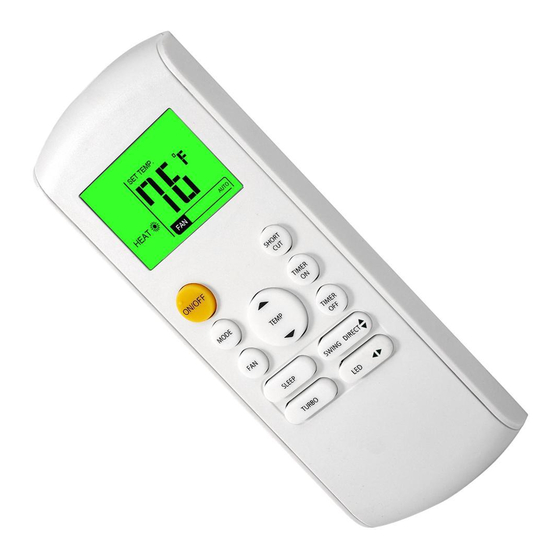

- Page 1 AIR CONDITIONER REMOTE CONTROL ILLUSTRATION Thank you very much for purchasing our air conditioner. Please read this owner's manual carefully before using your air conditioner.
-
Page 2: Table Of Contents
CONTENTS Remote control Specifications............Function buttons ................Handling the remote control............Remote LED screen indicators ............. How to use the basic functions............How to use the advanced functions .......... -
Page 3: Remote Control Specifications
Remote Control Specifications RG57H(B)/BG(C)E; RG57H1(B)/BG(C)E; RG57H2(B)/BG(C)EF; Model RG57H3(B)/BG(C)EF;RG57H1(B)/BG(C)E-M;RG57H(B)/BG(C)EU1 3.0V(Dry batteries R03/LR03 2) Rated Voltage Signal Receiving Range -5 C~60 C(23 F~140 F) Environment ON/OFF SHORT ON/OFF SHORT ON/OFF SHORT ON/OFF SHORT TIMER TIMER TIMER MODE MODE MODE TIMER MODE TEMP TEMP TEMP TEMP... -
Page 4: Function Buttons
Function Buttons Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual. SHORT CUT ON/OFF Sets and activates your... -
Page 5: Handling The Remote Control
Handling The Remote Control TIPS FOR USING REMOTE CONTROL The remote control must be used within 8 NOT SURE WHAT A FUNCTION DOES? meters of the unit. Refer to the How to Use Basic Functions and How to Use Advanced Functions sections The unit will beep when remote signal is of this manual for a detailed description of received. -
Page 6: Remote Led Screen Indicators
Remote LED Screen Indicators Transmission Indicator Lights up when remote sends signal to unit ON/OFF display MODE display Appears when the unit is turned on, Displays the current and disappears when it is turned off mode, including: TIMER OFF display TIMER ON display AUTO Displays when TIMER... -
Page 7: How To Use The Basic Functions
How To Use The Basic Functions SETTING TEMPERATURE The operating temperature range for units is 17-30 C(62 F-86 F). You can increase or decrease the set tmeperature in 1 C(1 F) increments. AUTO operation In AUTO mode, the unit will automatically ON/OFF SHORT select the COOL, FAN, HEAT or DRY mode... - Page 8 How To Use The Basic Functions DRY operation(dehumidifying) 1. Press the MODE button to select DRY mode. 2. Set your desired temperature using the Temp or Temp button. 3. Press the ON/OFFbutton to start the unit. NOTE: FAN SPEED can t be changed in ON/OFF SHORT DRY mode.
- Page 9 How To Use The Basic Functions HEAT operation 1. Press the MODE button to select HEAT mode. 2. Set your desired temperature using the Temp or Temp button. 3. Press the FAN button to select the fan speed: AUTO, LOW, MED,or HIGH. 4.
- Page 10 Setting the TIMER function Your air conditioning unit has two timer-related functions: TIMER ON- sets the amount of timer after TIMER ON TIMER ON which the unit will automatically turn on. TIMER OFF- sets the amount of time after which the unit will automatically turn off. TIMER ON function The TIMER ON function allows you to set a period of time after which the unit will...
- Page 11 TIMER OFF function The TIMER OFF function allows you to NOTE: When setting the TIMER ON or set a period of time after which the unit TIMER OFF functions, up to 10 hours, will automatically turn off, such as when the time will increase in 30 minute you wake up.
- Page 12 Setting both TIMER ON and TIMER OFF at the same time Keep in mind that the time periods you set for both functions refer to hours after the current time. For example, say that the current time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM.
- Page 13 Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off (see the figure below) Your remote display Timer on Timer is set To turn ON 6 hours from current time Timer off Timer is set to turn OFF 8 hours from current time Unit turns Unit turns...
-
Page 14: How To Use The Advanced Functions
How To Use The Advanced Functions SLEEP Function The SLEEP function is used to decrease energy use while you sleep (and don t need the same temperature settings to stay comfortable). This function can only be activated via remote control. Note: The SLEEP function is not available ON/OFF SHORT... - Page 15 NOTE: -Buttons design is based on typical model and might be slightly different from the actual one you purchased, the actual shape shall prevail. -All the functions described are accomplished by the unit, if the unit has no this feature, there is no corresponding operation happened when press the relative button on the remote controller.
- Page 16 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
