Axis SLIM SurroundLite Installation Instructions page 5

SLIM

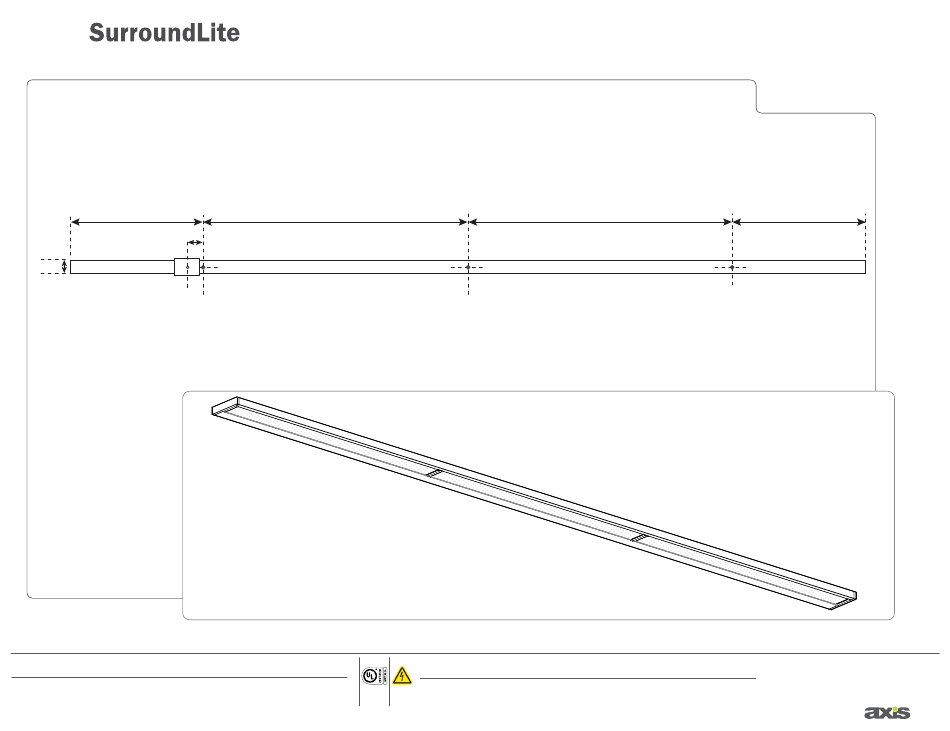

WALL MOUNT INSTALLATION INSTRUCTIONS TEMPLATE FOR HOLES AND J-BOX POSITION
GABARIT POUR LES POSITIONS DE TROUS ET DE LA BOÎTE DE JONCTION DANS LES DIRECTIVES D'INSTALLATION DU MONTAGE MURAL
24"
3"
13/8"
C L
Please consult Shop Drawings for final mounting points and dimensions.
La conception et le développement font partie d'un processus d'évolution continu chez Éclairage Axis. Nous nous réservons
le droit de changer les spécifications. Pour obtenir l'information la plus récente sur le produit, veuillez contacter Axis.
Product design and development is an ongoing process at Axis Lighting. We reserve the right to change specifications.
Contact Axis for the latest product information. © 2016 Axis Lighting Inc.
NOM DE FILIÈRE / FILE NAME:SLW.SURROUNDLITE.INST
RÉVISION 001 / REVISION 001 24 / 10 / 2018
TM
48"
SLIM 12' WALL MOUNT / MONTAGE MURAL
1.800.263.2947 [T]514.948.6272
48"
A V E R T I S S E M E N T : LOCALISER TOUS LES CIRCUITS ET CABLES RISK OF FIRE AND ELECTRICAL SHOCK. FIXTURE MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN ONLY IN
ACCORDANCE WITH NATIONAL, LOCAL BUILDING AND ELECTRICAL CODES. DISCONNECT POWER AT ELECTRICAL PANEL BEFORE SERVICING.
W A R N I N G : LOCATE ALL POWER CONDUITS AND CABLES. RISK OF FIRE AND ELECTRICAL SHOCK. FIXTURE MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN ONLY IN ACCORDANCE WITH
NATIONAL, LOCAL BUILDING AND ELECTRICAL CODES. DISCONNECT POWER AT ELECTRICAL PANEL BEFORE SERVICING.
SIDE VIEW
VUE LATÉRALE
24"
