HermanMiller
Canvas Vista T-Light Installation and
Disassembly for Recycling Instructions
How to assemble T-Light
Tools Required
Power Driver
T25 Torx Bit
Metric Allen
Wrench
Step 1
1.1 Attach the Top Light Reflector Assembly to the Support Post
using the two self-tapping machine screws and the nylon washer
as shown.
Be careful not to break zip tied cord inside.
Metal Washer
HermanMiller
Nylon Washer
Underneath metal
Parts Included
FG199 - Wire Manager
FG197 - Cable Management Clip
Step 2
2.1 Connect the Barrel Connector from the Top Reflector Assembly into
the receptacle in the top of the support post.
1
1BMYW4 rev C

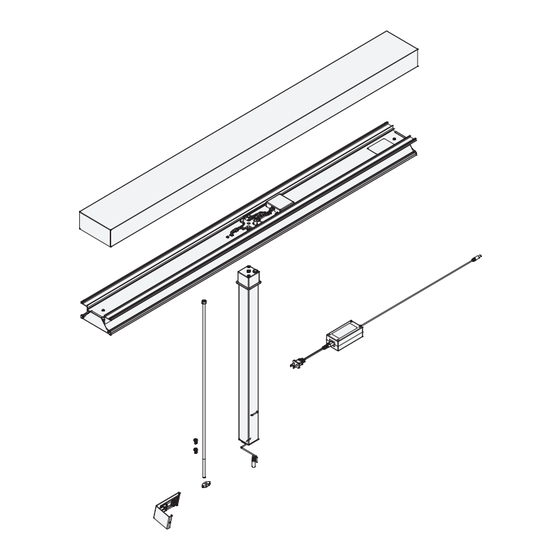

FG600 - T-Light Assembly
Installation Instructions
Advertisement
Table of Contents
Related Manuals for HermanMiller Canvas Vista T-Light
Summary of Contents for HermanMiller Canvas Vista T-Light
- Page 1 Parts Included HermanMiller Canvas Vista T-Light Installation and Disassembly for Recycling Instructions How to assemble T-Light FG600 - T-Light Assembly Tools Required FG199 - Wire Manager FG197 - Cable Management Clip Power Driver T25 Torx Bit Metric Allen Wrench Step 1 Step 2 1.1 Attach the Top Light Reflector Assembly to the Support Post...
- Page 2 - snug plus 1/2 - 3/4 turn (90 to 100 in-lb). Do not over-tighten. Pull up on the light to make sure it is secure in the slot. HermanMiller 1BMYW4 rev C Installation Instructions...
- Page 3 To disassemble product, reverse the above installation steps: For more information about our products and services please visit us at hermanmiller.com or call (800) 851 1196. ©2019 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1BMYW4 – C...
