INTRODUCTION .......................................................................... 1
Revision History ..................................................................... 2
Trademark Information ................................................................ 2
Admonishments ..................................................................... 2
Certification ........................................................................ 2
1
PRODUCT DESCRIPTION ............................................................... 2
2
SPECIFICATIONS..................................................................... 3
3
INSTALLATION ...................................................................... 3
4
OPERATIONAL CONSIDERATIONS ......................................................... 7
5
TROUBLESHOOTING .................................................................. 7
6
CUSTOMER INFORMATION AND ASSISTANCE ................................................. 8
INTRODUCTION

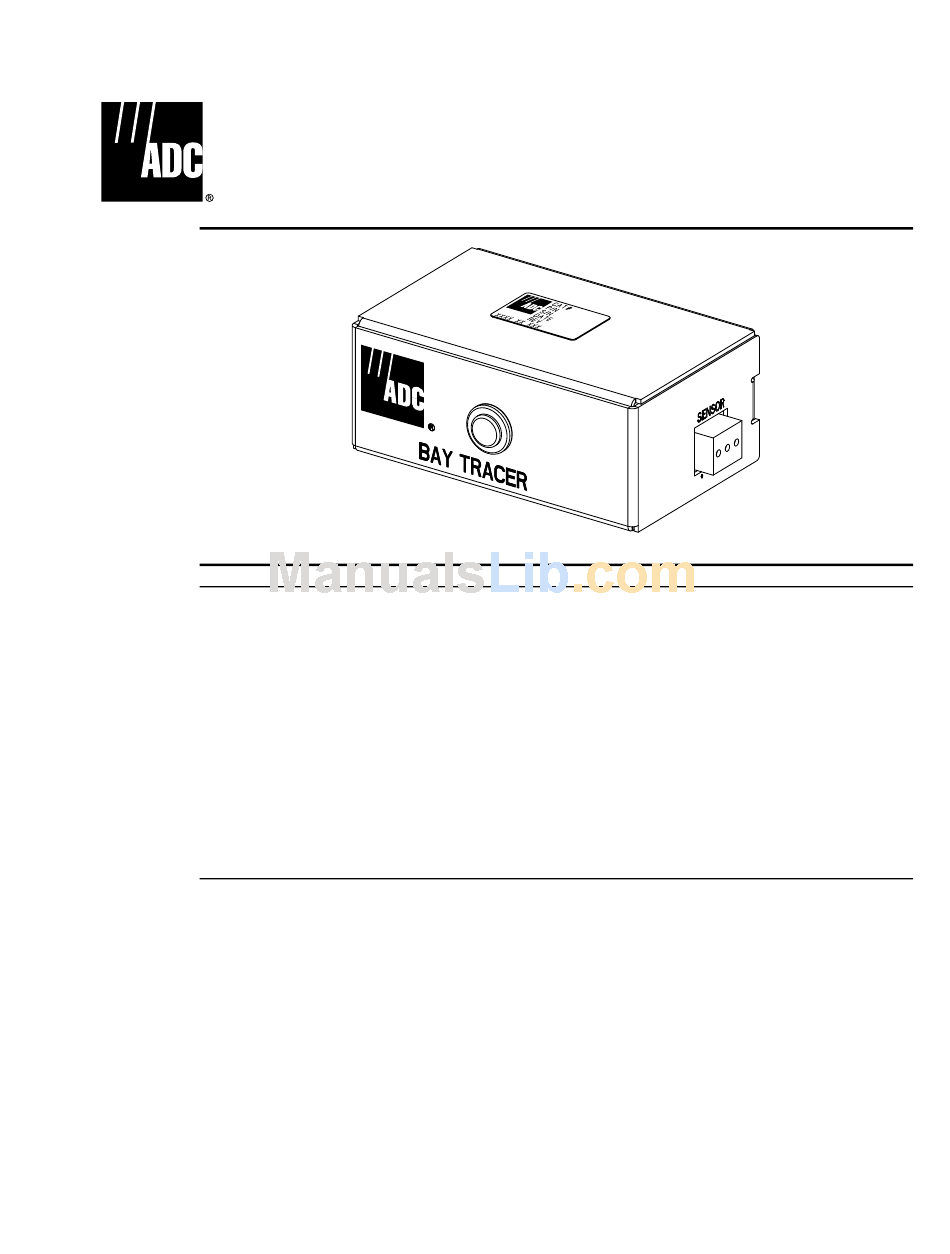

This guide describes the ADC DSX Bay Tracer Illuminator option used in large DSX-1 or
DSX-3 environments to enable technicians to locate far end LED tracer lamps more quickly.
The Bay Tracer Illuminator option consists of a stand-alone electronic sensor device that
mounts on the top of a DSX-1 or DSX-3 bay, and an inductive pick-up coil that mounts on
one or more -48 Vdc power input conductors feeding the bay fuse panel. Power to operate the
Bay Tracer Illuminator option is obtained from a branch of the same -48 Vdc central office
source that powers the components in the DSX-1 or DSX-3 bay.
1074399 Rev A
ADCP-80-412
DSX Bay Tracer Illuminator
User Manual
13914-B
^
2000, ADC Telecommunications, Inc.
N
N
Issue 1
April 2000
Page
Page 1
Advertisement
Table of Contents
Summary of Contents for ADC ADCP-80-412
-
Page 1: Table Of Contents
CUSTOMER INFORMATION AND ASSISTANCE ... 8 INTRODUCTION This guide describes the ADC DSX Bay Tracer Illuminator option used in large DSX-1 or DSX-3 environments to enable technicians to locate far end LED tracer lamps more quickly. The Bay Tracer Illuminator option consists of a stand-alone electronic sensor device that mounts on the top of a DSX-1 or DSX-3 bay, and an inductive pick-up coil that mounts on one or more –48 Vdc power input conductors feeding the bay fuse panel. -
Page 2: Revision History
04/2000 Original Trademark Information ADC and ADC Telecommunications are registered trademarks of ADC Telecommunications, Inc. Admonishments Important safety admonishments are used throughout this manual to warn of possible hazards to persons or equipment. An admonishment identifies a possible hazard and then explains what may happen if the hazard is not avoided. -
Page 3: Product Description
Coil Dimensions (H 3 INSTALLATION The ADC Bay Tracer Electronic Sensor is designed to be installed on the top cross-member or left/right vertical support flanges of the bay. The sensor and power cabling for the device must be routed over the top of the bay as shown in Table 1. - Page 4 (option A), proceed to step 2a. If the bay is configured with a mix of DSX and non-DSX equipment (option B), proceed to step 2b. Page 4 © 2000, ADC Telecommunications, Inc. BLANK PANEL (FRONT) CABLE TROUGH (REAR) FUSE PANEL...
-
Page 5: Rear View
Figure 3. Sensor Cabling Option A ADCP-80-412 Figure SENSOR ATTACHMENT POWER ATTACHMENT INDUCTION FUSE PANEL PANEL PANEL 14088-A © 2000, ADC Telecommunications, Inc. Issue 1 April 2000 Figure 3, making 4, making sure FILLER PANEL COIL —48V BATTERY RETURN Page 5... - Page 6 EQUIPMENT OUT OF COIL 4. Attach the trailing wires from the inductive pickup coil to the ADC-provided sensor connector making sure that the white conductor is routed to the negative (–) pin on the SENSOR receptacle and the black conductor is routed to the positive (+) pin on the receptacle.
- Page 7 –48 Vdc branch circuit on the DSX-1 or DSX-3 fuse panel as shown in Figures 3 and 4. Attach the opposite ends of these wires to the ADC-provided power connector on the electronic sensor device making sure that the wire supplying –48 Vdc is routed to the –48V pin on the POWER receptacle and the battery return wire is routed to the RET pin...
-
Page 8: Operational Considerations
–48 Vdc and battery return conductors are mis-wired on POWER connector Page 8 © 2000, ADC Telecommunications, Inc. Table 2. Bay Tracer Troubleshooting DESCRIPTION LED activates when jack is removed LED activates when jack is removed... -
Page 9: Customer Information And Assistance
Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages.
