GOLD LABEL 77648 Quick Start Manual

I. DESCRIPTION

Thank you for purchasing the Animated Musical Chimes. An elegant music box in a classic mantelpiece silhouette, our Animated
Musical Chimes is the perfect collector's piece. The unit plays 35 Christmas Carols and 35 Year Around Songs on the hour or
continuously. Adapter is included. This product is not a toy and is not intended for use by children.

CLOCK BATTERY INSTALLATION

1. Open the door and the battery compartment at the back of the door. (See Fig. I).
2. Insert the AA-size battery (included in the packaging) into the compartment making sure to align
the "+" and "-" as indicated in the bottom of the battery compartment.

II. OPERATION

1. Place the unit on any flat surface.
2.
Turn the time adjusting knob to adjust to the correct time. (See Fig. I).
3. Open the front window door and gently remove the cardboard (See Fig. II).
4. Insert the adapter plug into the unit jack at the rear of the unit. Plug the
adapter into a nearby working outlet. The adapter is intended to be
correctly oriented in a vertical or floor mount position.
5. Turn the unit on using the ON-OFF switch from the back of the unit.
Note: The adapter supplies power to the musical module only and will
not supply power to clock movement.
6. Turn the VOLUME dial to adjust the volume of the music. Note: When
the volume dial is at the LO setting, no music can be heard. the volume dial is at the LO setting, no music can be heard.
7. Use the Christmas Carols/Year-Round Songs switch to select the type
of music you wish to play. (See Fig. III).
8. Use the selectors (A-G) / (1-10) positioned at side panel to select which
song you wish to play. (See Fig. IV). The song selectors only choose the songs when the
unit is in the "ON" position.
9. Move the power switch to either of the following settings (See Fig. V):
"CLOCK" - When the minute hand is on the 12 (top of the hour), it will
randomly play one song from the song category selected (either Christmas Carols or
Year-Round Songs) and then stop. The unit will not play the next song until the minute
hand is back on 12. The song selectors (A-G) / (1-10) do not effect the song choice when
in the "CLOCK" setting.
"ON" - The music will play continuously.
"OFF"- The unit will be off.
10. Use the Chime On/Off switch to start and stop the sound of chimes.(See Fig.VI).
PLEASE NOTE: WHEN THE CHIME SWITCH IS IN THE OFF POSITION THE "HAMMER" WILL NOT STRIKE
THE CHIME, HOWEVER YOU WILL STILL HEAR THE CHIME SOUND IN THE MUSIC.

III. TROUBLESHOOTING

Your Animated Musical Chimes has been designed to give many reasons of trouble-free operation. In the event that a problem does
occur, please refer to the following chart for suggested solutions.
Problems
No Music or motion
No music is playing or the
chimes are playing alone
Chimes are not playing
Selected song is no longer Selected song is no longer
playing
www.mrchristmas.com
THIS PRODUCT IS NOT A TOY, FOR DECORATIVE USE ONLY
ANIMATED MUSICAL CHIMES
Likely Cause
No Power
U n i t i n " C l o c k " m o d e
Pause between songs
VOLUME dial is LO
CHIME ON/OFF switch is in
the "OFF" position
Unit is playing continuously Unit is playing continuously
after selected song is finished
Solution
Make sure the adapter is plugged into a working outlet and the adapter jack is
securely attached to the back of the unit.
Wait until the minute hand is on the 12 (top of the hour ) or turn the power
switch to "ON"
Wait one or two seconds for the next song to start.
Turn VOLUME dial to the HI position.
Move CHIME ON/OFF switch to the "ON" position
Turn the power switch first to "OFF" and then back to Turn the power switch first to "OFF" and then back to
"ON"

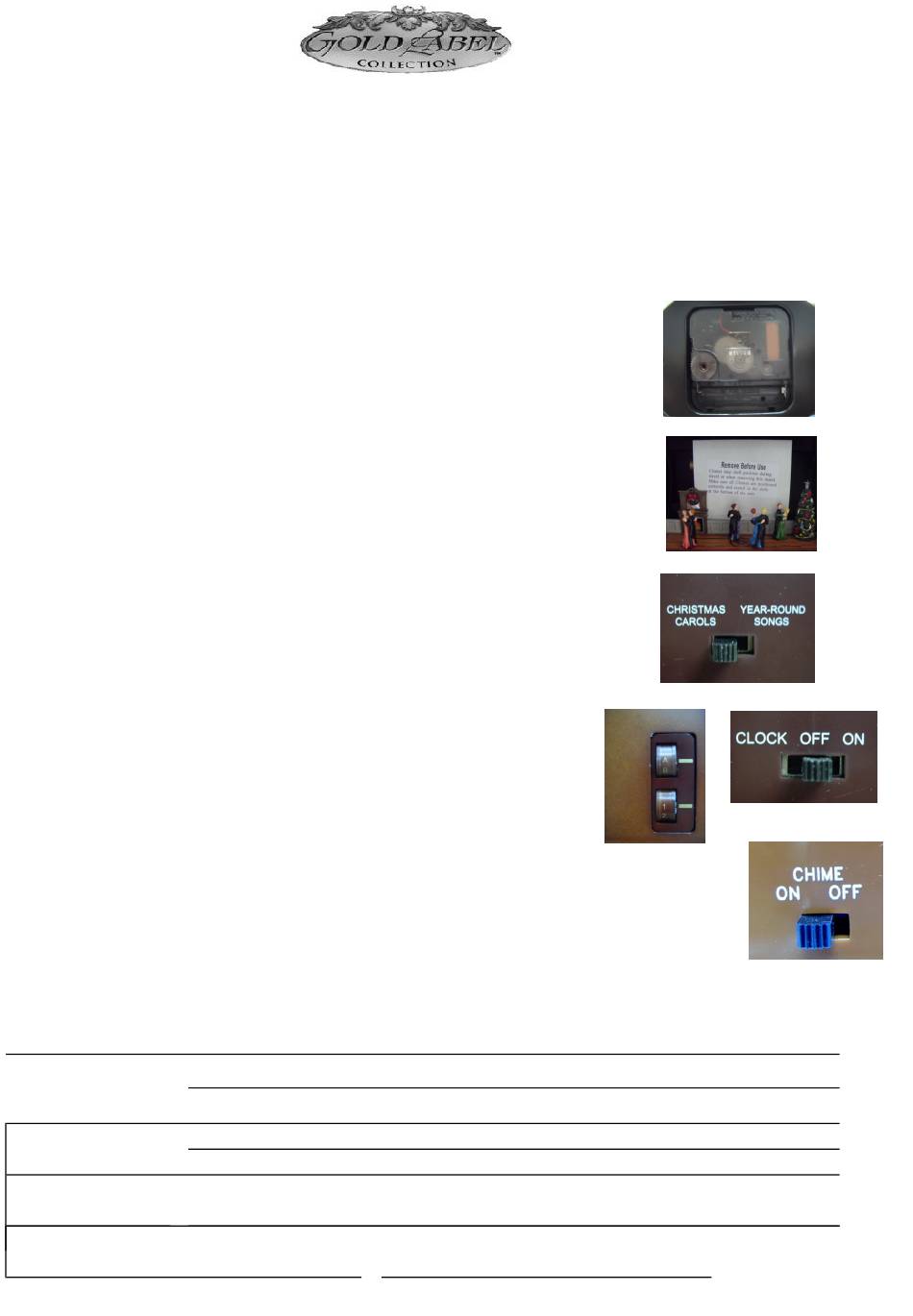

Figure I
Figure II
Figure III
Figure V
Figure IV
F i g u r e V I F i g u r e V I F i g u r e V I F i g u r e V I
