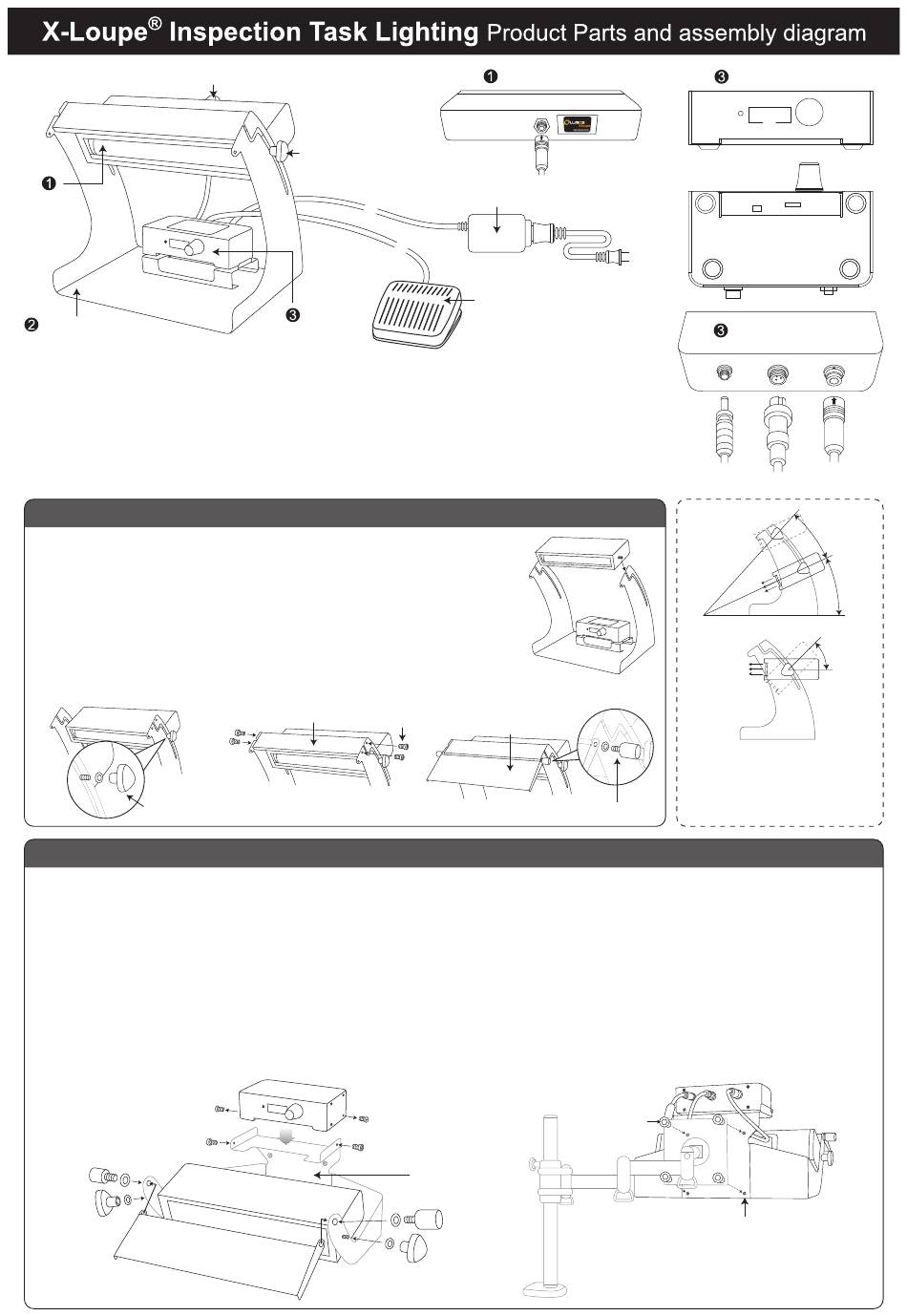

Lumos X-Loupe Inspection Task Lighting Product Parts And Assembly Diagram

Power / signal & control cable
⑦
Light bar
Flat-base Stand
① Power ON / OFF
② LCD status display LCD
•Show the status of Battery / lighting position /
lighting intensity digital
③ Control knob (illumination intensity)
•Stepless illumination Intensity
is dimmable from 1~100%
•Default setting 50%
Installation instruction (I)
1. From the upper entrance of sliding track get the Light Bar placed, as shown in
Figure (1).
2. Attach the gasket and the position Knob (for Light Bar) to the threaded rod
protruding from light bar. Adjust the light bar to the desired position and tighten it,
as shown in Figure (2).
3. Place the metal plate on the top of the Flat-base Stand, align the screw holes and
insert the 4 screws (Set A, Hexagon Socket Cap Screws) to the corresponding
holes and tighten them, as shown in Figure (3).
4. Insert the fixed screw (for light shielding plate) through the gasket; align the holes
of light shielding plate to the upper holes on the sides of the flat-base stand, and
then insert the fixed screw to the hole and tighten it, as shown in Figure (4).
(2)
LED Light bar position knob
(three-lobe knob)
Installation instruction (II)
〈Combination for Control unit and Frame bracket〉
1.Remove the lower right screws (Set B, Cross recessed Flat-Head Screw) from tapped holes of the left and right sides of the Control unit as
shown in the Figure(5); place the Control unit on the top of the frame bracket, reinsert another set of screws (Set C, Hexagon Socket Cap
Screws) to the corresponding holes and tighten them. (Note: Keep the two screws of Set A for next use)
〈Combination for Light Bar / Light shielding plate and Frame bracket〉
2.Insert the threaded rod protruding of light bar to the hole on the sides of the frame bracket as shown in the Figure(6). Attach the gasket
and the position Knob (for Light Bar) to the threaded rod protruding and tighten it.
3.Insert the fixed screw (for light shielding plate) through the gasket; align the holes of light shielding plate to the upper holes on the sides of
the frame bracket, and then insert the fixed screw to the hole and tighten it.
〈Combination for Lamp Holder Set B and VESA-mount Bracket〉
4.Align the screw holes on the back of assembled frame bracket to the rack hole of the VESA-mount Bracket (hole patterns: 100x100mm),
and then insert the screws (Set D, Hexagon Socket Cap Screws) to the hole and tighten it.
Screws(B)
Screws(C)
(7)
(6)
LED Light bar
position knob
(three-lobe knob)
⑤
⑥
Control Unit
④ Light source switching / Default lightness push button
•Sequentially toggle the switch to change light source
(standard 2-channel: Green / 4000k White)
•Directly press the switch to reply the illumination
intensity default setting (50%)
⑤ DC power supply
⑥ Cable port (for Footswitch pedal)
⑦ Power / signal & control cable
Lamp Holder Set A (Light bar / Light shielding Plate to Flat-base Stand)
Metal plate
Screws(A)
(3)
Lamp Holder Set B (Control unit / Light bar / Light shielding Plate to Frame Bracket / VESA-mount Bracket)
(5)
Screws(B)
Screws(C)
Light bar (back)
⑦
AC to DC voltage converter
Footswitch pedal
(option)
Light shielding plate
(4)
Light shielding plate fixed screw
Frame bracket
(7)
(6)
Control Unit (front)
①
②
Control Unit (back)
⑤
(1)
Note:
The illumination angle of the light bar
on the bracket is adjustable
(sliding track for up and down is about
23° / lighting bar is rotatable for 45°)
Screws(D)
VESA-mount bracket rack hole
③
④
⑥ ⑦
23°
25°
45°
(8)
