Endura TWC2M-MB Information For Installing

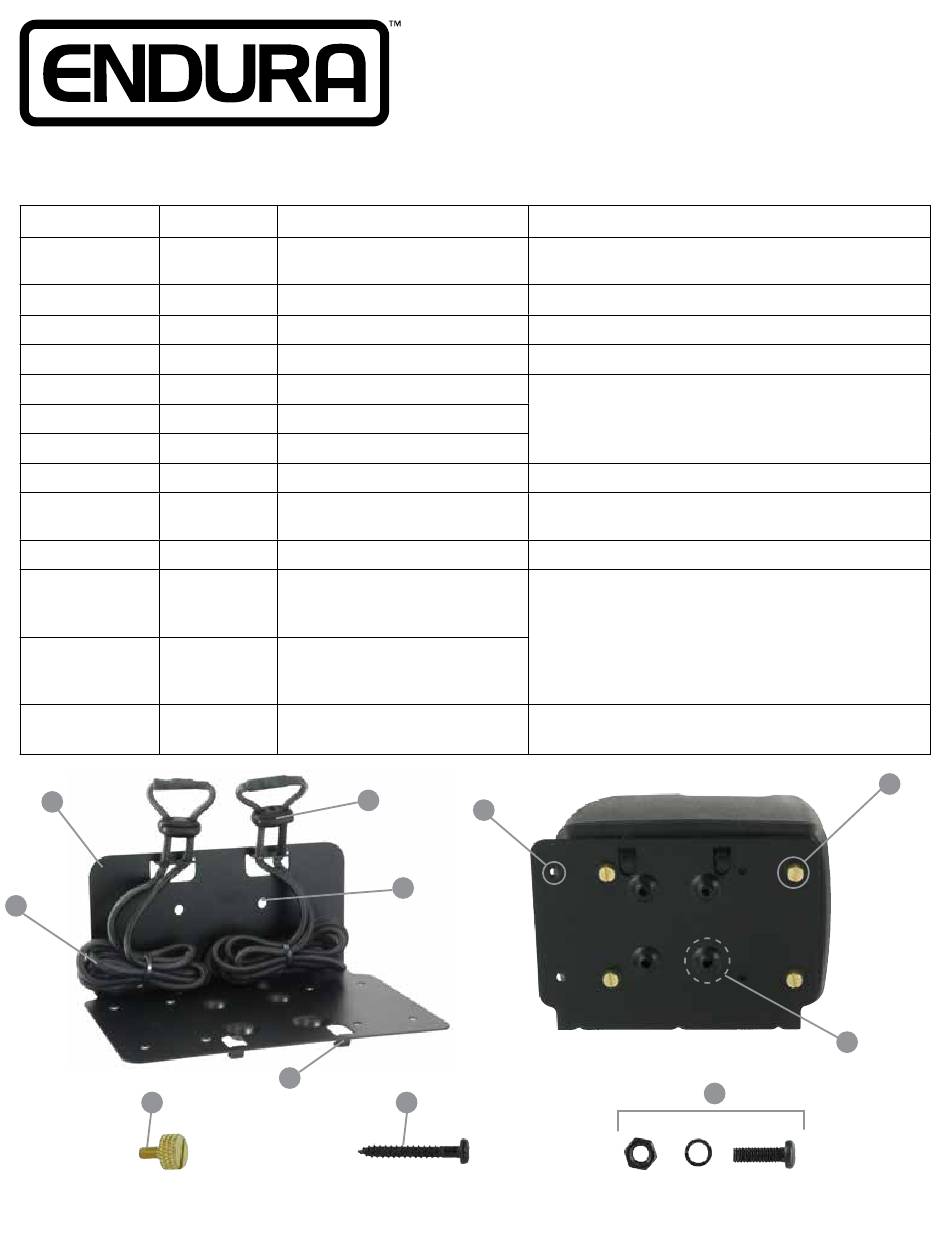

Overview – TWC2M-MB is designed for mounting TWC2M in a vehicle. Listed below are the parts included or
bracket features.
Reference Quantity
A
B
C
D
E
E
E
F
G
H
I
J
K
A
B
C
ENDURA Chargers By Power Products • www.powerproducts.com • Toll Free 800-529-1618 • PPU-12
™
Description
1
Bracket
2
Tie-down straps
4
Brass screws
4
Wood screws (3/4" length)
4
Machine screws (1/2" length)
4
Hex nuts
4
Lock washers
--
Retaining clip
--
Opening for dash mounting
--
Tie-down strap hook
Charger connection point for
--
positioning front charging slot to
the left
Charger connection point for
--
positioning front charging slot to
the right
Connection point for RAM-B-101U
--
mount
F
H
Information For Installing TWC2M-MB
Mounting Bracket For Endura
TWC2M Rapid Charger
Attach charger to this part. Use for mounting charger to a
dash or vertical surface.
Factory installed on bracket for each charging position.
Use to fasten charger to main bracket.
Used to attach bracket to dash or vertical surface.
Use to fasten bracket to RAM-B-101U for floor mounting
(RAM-B-101U sold separately).
Allows length of tie-down strap to be adjusted.
Use wood screws (D) to secure the main bracket at four
points.
Connection point at front of bracket for tie-down straps.
Use brass screws (C) to fasten charger to bracket. Insert
screw from underside of bracket at four points.
Use 4 machine screws, lock washers, and hex nuts to fas-
ten charger bracket to RAM-B-101U.
