Summary of Contents for Color Emajl L1

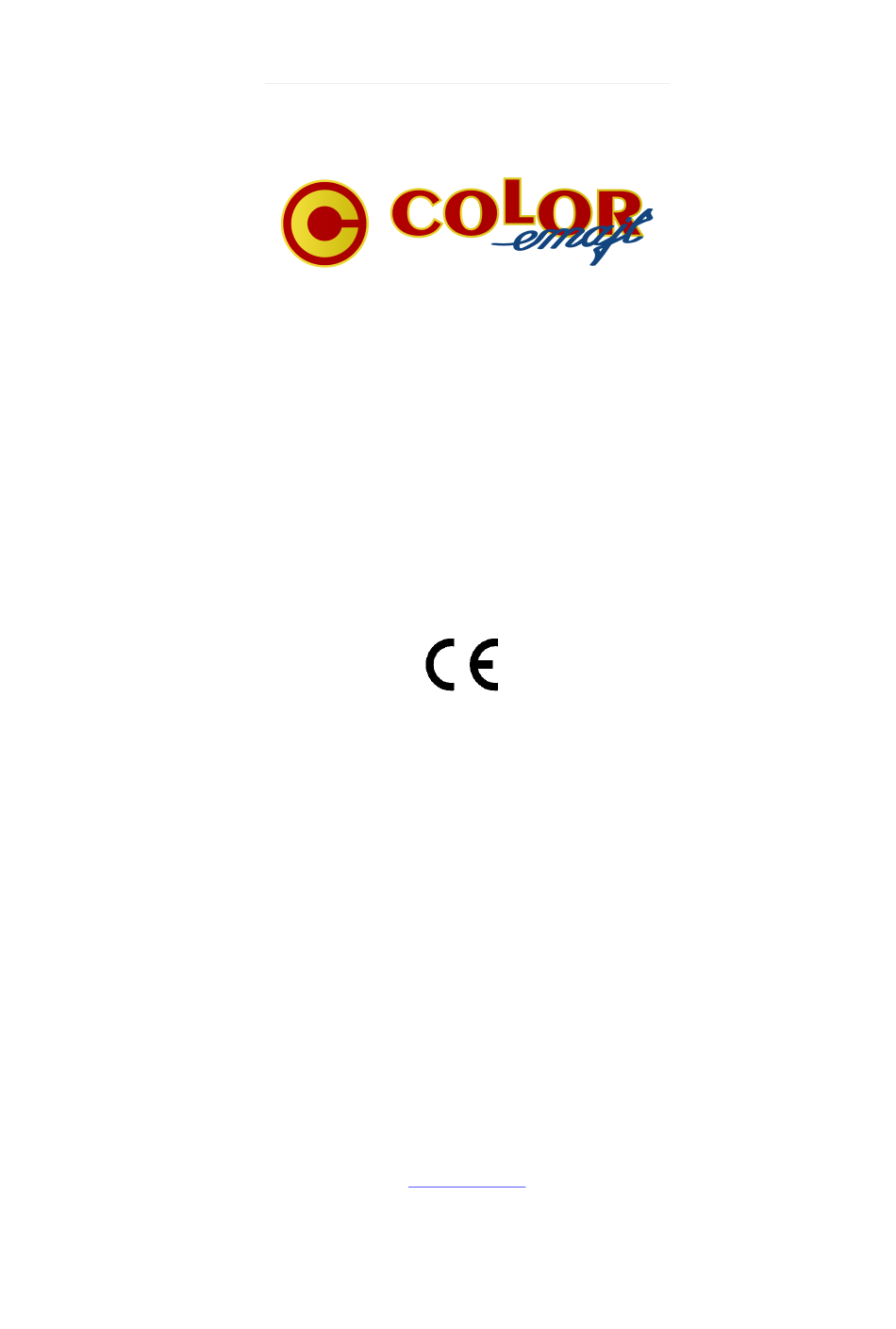

- Page 1 MANUAL FOR USE AND INSTALATION STOVE MODELS: L1, L2, L3 CE Tested by the DIN EN 13240 § 15a B-VG Austria Type 1 Color Emajl d.o.o. – Alaginci 87 a – 34000 Požega – Croatia www.color.hr team@color.hr ...
- Page 2 Congratulations on purchase of this shapely and modern fireplace. This manual for usage will introduce you to the functions and proper handling of the fireplace. Buyer and user are obligated, based on this manual, to inform them about proper handling of the fireplace! Our guarantee is valid only if the following guidelines are complied. Please keep this manual, in order to remind yourself how to properly handle the fireplace prior to the next heating season. Your contribution to environmental protection Disposal of the packaging. The packaging is intended to protect the new stove against transport damage. From a disposal point of view, environmentally compatible and recyclable materials have been selected and used for packaging.
- Page 3 If the fireplace is installed in a room with well-sealed windows and doors, dysfunctions are possible. You can consult with your chimney sweep if there is enough combustion air in the room. Your fireplace can be equipped with a connection for the external air supply. The corresponding connection (Ø 100 mm) can be ordered separately as additional equipment Picture 1 Outdoor air supply For especially well sealed rooms we recommend an outdoor air supply. If you are using an outdoor air supply pay attention to the sealed tube pipes. The total length of pipe should not be longer than 6 meters, do not calculate reductions, as well as top of 3 pieces of 90° elbow. Chimney sub pressure must be in a condition to overcome those additional resistances. Fireplaces that are described in this manual are tested through DIN EN 13240 norm. If the fireplace is connected to the multi-paneled chimney, then in any case do not remove the helix that closes the door. The door must, after putting firewood into the stokehole, self-close, in order to prevent air influence on sub- pressure and intensity of fire, and in order to avoid danger that is related with stokehole. Installation of the fireplace and the flue pipe connection Flue pipe connection For connection to the chimney there should be used a flue pipe that has 1-2 mm thickness. All connectors from fireplace into the chimney must be firm and tightly connected. Be careful that the flue pipe does not enter into the free section of the chimney. Wall covering is recommended. Horizontal part of the flue pipe, compared with fireplace, must be situated on 90° or higher. Safety rules At fireplace installation, you must comply with safety rules. Pay attention on minimum required distance from the wall, flammable elements and on protection of the floor! > 130 cm...
- Page 4 Picture 2: View from above BACKWALL RÜCKWAND B1 STOVE B2 A A SIDEWALL Technical specifications Fireplace Amount of Temp. Of outgoing model Strength Pressure Diameter off the flue pipe exhaust gas gas L1 – L2 Wood 7,8 kW 6,1 g/s 358 °C 12 Pa 148 mm Ancit 4,0 kW 8,2 g/s 289 °C 12 Pa 148 mm...
- Page 5 Table 2: Technical specifications General information about fireplace work Always use gloves! Do not use any flammable liquid fluids for lighting fire. The door of the stokehole can be opened only when adding fuel. Use only suitable fuels (see the table below). Check, is there enough quantity of fresh air in the room, when working on the open principle. Fireplaces can be used only by adults. Make sure that children are never alone near fireplace. Never leave fireplace for a longer period of time without surveillance. Fuel Fuel quantity Primary air Secondary air Firewood 2 – 3 pcs Max ½ Open Briquettes (coal) 2,5 kg Open cca. 1/4 Table 3: Regulation of the air regulators Start Primary and secondary regulators open maximally! Be careful, if the flue pipe has integrated flap it should also be opened maximally. 2-3 cubes for fire, place on the center of the stokehole and put on it firewood. Light the cubes and just lean the door. It prevents condensation of gas on the cold glass. After approximately 5 to 10 minutes, when the fire is fully burst, carefully open the door, put 1 to 2 pieces of the wood into the stokehole, and then close the door. When the amount of putted fueled material becomes well flamed and burst, and the working temperature of the fireplace is achieved, gradually move the primary air regulator backwards, but the flame still must be further visible. At optimum sub pressure and qualitative fuel, the primary regulator can be completely closed. Now you regulate the fire using the secondary regulator. The door of the stokehole can be opened again, only when the placed quantity of the fuel is burned, and when you want to put the new fuel. It is recommended that the secondary air regulator is kept maximally opened, in order for the “glass cleaning” to become maximally efficient, and to avoid glass “fogging”.
- Page 6 Suitable fuels Fireplace serves for combustion of natural wood, wooden briquette and brown coal briquette. Classical wood for fireplace is beech and birch. These types of wood have the highest burn degree; they burn cleanest, if they are storage on a dry place. Fresh wood should be torn up and stored 12 to 18 months on open storage, but protected from rain. According to the manual, there can be used only wood with maximum humidity of 20%. For lighting do not use: Humidified wood or wood treated with protection repellants • Paper and carton (except for disposal) • Bark or plywood • Plastic or other waste • Emptying ashtray Be careful that the ashtray is regularly emptied and that too much ash is not accumulated. Otherwise, there is danger that the bar does not cool enough and damages in that way. Before emptying the ashtray, check is there any ardor left in the ashtray. Even though the ash is cold from the outside, it is possible that in the inner of the ash is ardor which can lead to the inflammation of waste bin.
- Page 7 Layout and usage of air regulators Picture 3: Combustion air regulators Secondary air Primary air Open Closed Closed Open...
