Mi-T-M AW-7020-8009 Quick Start Manual

Mi-T-M Corporation
50 MI-T-M Drive Peosta, IA 52068
Ph: 800-553-9053 - Fax: 563-556-1235
SPECIFICATIONS
Model
Operating Pressure
Maximum Flow
Maximum Temp.
Nozzles (2 per unit)
Weight
Dimensions
HAZARD
RISK OF
BODILY INJURY
RISK OF EQUIPMENT
DAMAGE
OPERATION:
Read, understand, and follow ALL safety guidelines and operation instructions prior to use.
1. Connect the lance from your pressure washer to the surface cleaner.
2. Turn water on. Open trigger gun for flow of water through nozzles. Nozzles must have flowing spray. If not, remove
tips and clean; reassemble, making sure that groove of nozzle is parallel to spray bar. Use Teflon tape when
installing nozzles.
3. Start pressure washer. The Rotary Surface Cleaner is ready for operation.
4. Walk slowly behind the Rotary Surface Cleaner cleaning as you go. If striping occurs, slow down your pace.
5. Check "weep holes" on bottom of swivel periodically. Water will seep slowly; if water shoots out, stop and replace
seals. Swivel assembly can be rebuilt.
6. For maximum effectiveness keep spray tips clean. If the machine vibrates, stop and clean spray tips.
DO NOT ALLOW MACHINE TO REMAIN STATIONARY ON SOFT SURFACES, SUCH AS WOOD.
CAUTION: Striking any raised obstacle during operation will damage machine. If contact does occur and results in
vibration when operating machine, STOP and replace spray bar. Continued operation could result in serious
injury or damage to machine.

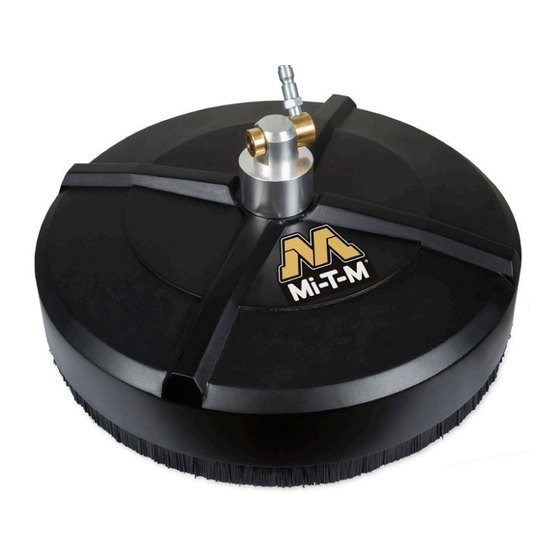

Professional 14 Inch Rotary Surface Cleaner
AW-7020-8009
4,200 PSI
8.0 GPM
180°F
Warning: This product contains lead, a
25020
chemical known to the State of California
to cause birth defects or other reproductive
4.4 lbs
harm.
16" x 16" x 7.25"
Wash your hands after handling this product.
POTENTIAL CONSEQUENCE
Serious injury or death could
occur.
Risk of major repair.
!SAVE THESE INSTRUCTIONS!
AW-7020-8009
PREVENTION
ALWAYS read, understand, and follow operation
instructions.
ALWAYS wear protective eye wear.
ALWAYS keep clear of rotating nozzles.
NEVER lock trigger gun open with any device.
Drain water in cold weather to avoid freezing.
Use only genuine Mi-T-M replacement parts for
necessary repairs.
Tampering with any part of this machine will void all
warranties.
Form #37-1357-122115
