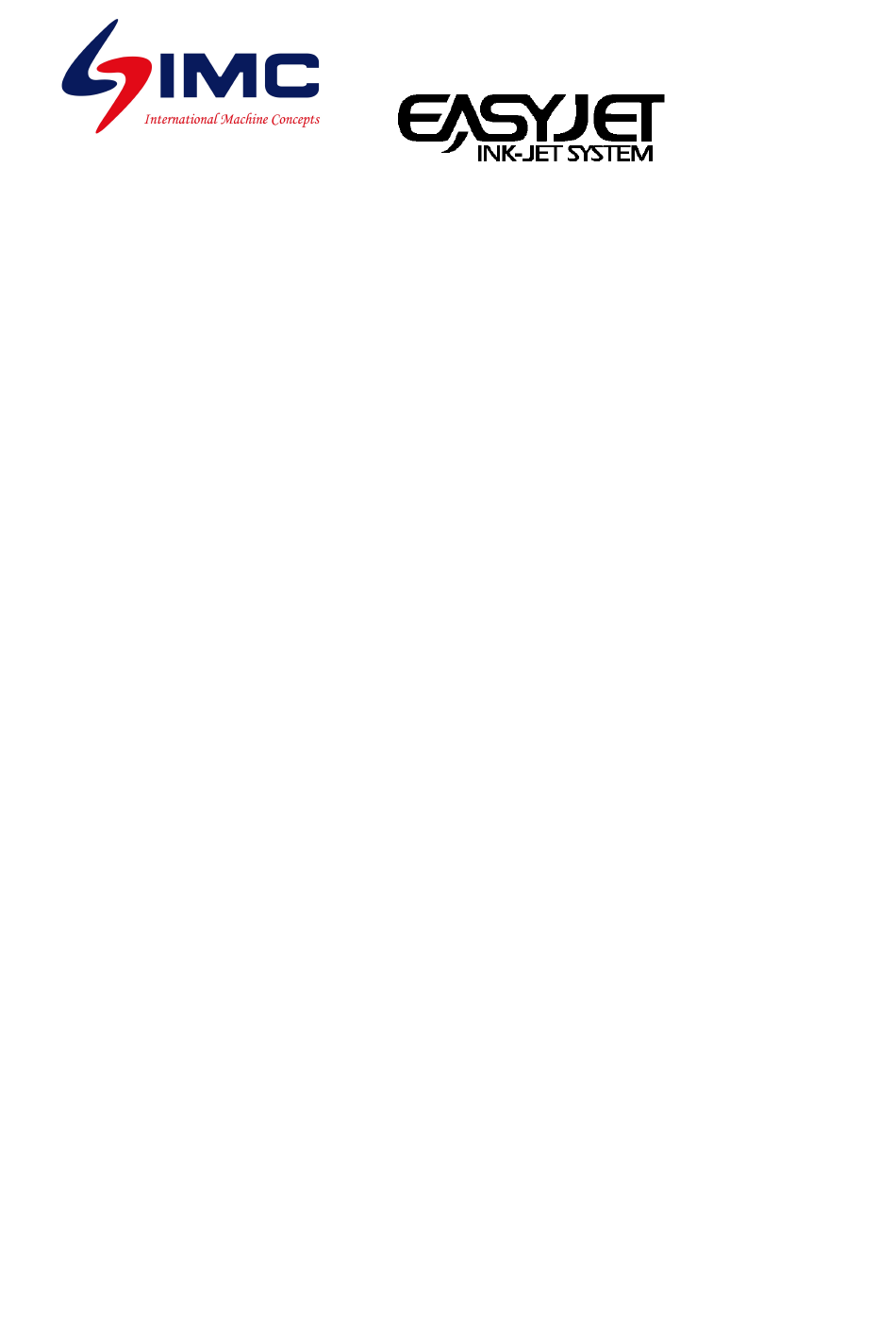

- Page 1 Ink-jet Printer E400P MANUAL...
-
Page 2: Table Of Contents
EASYJET INK-JET SYSTEM TECH. CO., LTD. Table of contents Declare Safety Instruction Packing List Technical Data Environment/Electrical Requirement Install & Test Switch On/Off Operation 1. <the main screen> description 2. <the switch of modes> description 2.1 <system> 2.1.1 “password” 2.1.2 “load” 2.1.3 “ink information”... -
Page 3: Declare
Declare Ø Please read the manual seriously before running machine. Any mistake or damage caused by user’s incorrect operation, shall be not on our responsibility. Ø In any circumstances, the ink-jet printer shall use the accessories and consumables (include inks & cleaner) approved by our company. -
Page 4: Safety Instruction
Safety Instructions Personal Safety Ø Some inks & cleaners are harmful, please installing & running machine in well ventilated conditions. Some inks& cleaners are flammable, Keep away from all sources of heat and ignition. Ø Fire-extinguisher shall be equipped nearby the machine. Ø... -
Page 5: Packing List
Packing List Name Quantity Controller 1 PC Print head System 1 Set Photoelectric sensor & Clip 1 Set Encoder & Accessories 1 Set (choose accessory) Stands & Fittings Installation 1 Set AC/DC Adapter & Power code 1 PC Manual 1 Copy Ink cartridge &... -
Page 6: Technical Data
Technical Data Ø System: 32-bit high-speed processor Ø Print head: 128 dots height, hole diameter in 50 um, 185dpi in vertical. Ø Print head number: 1 Ø Print height from 1mm to17.5mm. Ø Print Lines capability: Multi-lines (up to character height) Line speed capability: Max.33mt/min（200 dpi in lateral）. -
Page 7: Environment/Electrical Requirement
Environment/Electrical Requirement Ø Electrical requirement：AC 100-240V 50/60Hz Ø Max Power：13W (average﹤5W) Ø Temperature：5-40 Ø Humidity：10-90%(non-condensing) Ø Electromagnetic interference: running far away from electromagnetic radiation zone The Manual of Ink-jet Printer... -
Page 8: Install & Test
Install & Test Only trained technicians are authorized to carry out installation. Before install, confirm the machine was stay in a solid & smooth place without electromagnetic radiation. Installed as stipulated in manufacturer’s specification, do not change the relative position of ink system and print head. - Page 9 Install & Test 6、 Photoelectric Sensor Installation: 1. Screw the photoelectric clip on the print head stand. 2. screw the photoelectric sensor on the clip or other position as request, or use different types of sensor. When using solvent-base inks, the sensor shall be fixed in front of print head. 7、Encoder Installation: If the production line is not in constant velocity, it must be equipped with encoder.
- Page 10 Installation manual of print head and ink system 1. When performing sideward print, the lowest print hole inside the print head should be 10mm higher than the ink cartridge. This position creates the best ink level difference and is also the design standard on which we fix the support based.
- Page 11 Installation manual of print head and ink system 3. When performing upward print, the top of the print head system should be parallel to the top of the ink cartridge. This position creates the best ink level difference and is also the design standard on which we fix the support based.
-
Page 12: Switch On/Off
Switch on/off Ø Switch on： Checked up the power connection status before switch on. After switch on, it will enter into the operation system within 15 seconds. Remove the print head cap and press PRINT key to start printing when using oil-based inks. -
Page 13: Operation
Operation l <The main screen> Power on the printer, it will display <the main screen > as photo 2. Pic 2 On the operator interface, you will clearly find five menu items ： System 、 Parameter 、 Edit 、print 、File Preview Area with scale is located in the middle of screen. - Page 14 Operation Pic3 1.Printhead management Click this button will open the interface of print head management. You can set the value of idle-jet and the continual serial no on this page. A. Idle-jet Ø If you choose non-porous ink system, in order to prevent the ink on the surface of the print head becoming dry out which will cause illegible printing result you may need to start idle-jet printing function according to the chosen ink type, temperature, moisture and air flow rate to set the interval and number of columns for idle-jet printing.
-
Page 15: Password
Operation 2. “Authority” Click the button “Permission management” opens a screen as photo5. and then, click <OK> button of photo5 to open screen as photo4. Pic4 According to your requirement, two options is available if you need to set permission Low degree permission：Restrained only to editing function, need to input password to log in. -
Page 16: Load
Operation It just can upload and download a bmp format single color files from a storage disk through USB interface. Click the required file from the left side of screen, and click an arrow <rightwards> in the middle part. When the required file shows in the right side of screen means download successful. 4. -
Page 17: Calibrate
Operation 7. Date & time Pic 8 You can adjust time and date when click “date & time” button. Final value should be confirmed with button <setting> or back by button <cancel>. 8.“Calibrate” Click the button<Calibrate> to open screen as photo 9. Pic 9-1 If the keypad is not alignment, click CALIBRATION for adjustment. -
Page 18: Parameter
Operation Pic 9-3 If the two times calibration are different, it means failed. Please click again for a new calibration. Parameter Pic10 Change "Print speed ,print delay, print direction, horizon bold, quantity of files you want to print, interval of each file you choose to print and whether to operate with synchronizer. - Page 19 Operation choose a photoelectric sensor according to the size and color of the product and speed of production line 4.How to choose an encoder If you want to prevent from unstable length and definition of the text printed out due to unstable production line speed, you may need to choose an encoder.
-
Page 20: Print
Operation File association is used for the purpose of printing several pieces of print texts by sequence after sensed by the sensor one time. Thus to achieve cycle print PIC 12-3 Ø Print If you want to print what you have edited, please click Print. The icon shows red and yellow frame, that means it is under print condition if you choose photoelectrical sensor to print, the printer can print directly with what you have edited. -
Page 21: Browse
File Browse Pic 14 You can change the file you want to print here. If you click not under print status, you will see the dialog box as pic 15.Here you can check all your saved file and latest revised time of the file. Click the top part, you can change the order of the files. If you need to change the file you want to print, choose the file you want to print and then click .Click to delete the file you don't need, so that you can store new file with the spare space. -
Page 22: Edit
Operation Edit Ø Ø “Edit” including： Text、 Special symbol ； Image file ； Bar Code ； Date、 Time、 serial number、shift group、BMP generation etc. Pic 15 Click to enter Edit zone as picture below Pic 16 1.Image file If you want to print with a picture, please click "Image File" firstly. - Page 23 Operation Pic 17 Note: Image file can only be single color BMP file. 2. Bar Code Pic 18-1 Pic 18-2 If you want to choose a bar code, choose , then choose the type of the bar code you want to print form the dialog box, you can preview the bar code you choose in the bottom of the dialog box.
- Page 24 Operation 3.Date&Time If you want to generate a new date & time, click ,then choose "date" in the dialog box. Pic 19 Click Set Up Icon to set property of Date, then select the date & time format in the "date setting" dialog box.
- Page 25 Operation Pic 20 Date format: 18 different date formats can be chosen. Date offset：Date offset is available date as your requirement such as period of validity 1, period of validity 2. 4.Serial No If you want to generate a Serial No, click ，choose serial No in the dialog box.
- Page 26 Operation 5.Shift group Pic 22 Click if you want to generate shift group, then choose shift group in the dialog box. Click “Set Up” icon to set shift group，set the name and duration of the shift group in the "shift group" dialog box.
- Page 27 Operation 7.Text feature After you finish text editing, you can change the parameter of the text. Choose "Font" and then you can adjust the font type& font size. If you want to print with dot matrix , please select "dot" and then set the dot width and dot height, horizontal distance of dots ,vertical distance of dots, dot matrix size and round dot.
- Page 28 Operation Ø Module operation Module operation can work together with "Edit" to work out with perfect printing result. 5 main items ： Select 、 location adjustment 、 Setting 、delete 、rotate 。 1. Select Select the text you need firstly, then the text you are choosing will become blue. Then click , you can choose the text according to the order of the text you have edited.
- Page 29 Operation Pic 28 4.“Delete”：Choose the text you want to print firstly and then click to delete the text. Pic 29 5.“Rotate” ： Choose the text you want to print firstly and then click ， to 90 degree counterclockwise rotate the text Pic 30 Note: Module operation can work together with "Edit"...
- Page 30 Frequent Troubles Elimination Ø 3. System troubles： Trouble Reason Solution The character is entire, The distance from print head to however is illegible and in product surface is too far; or Shorten the distance shadow running in fast airflow condition. The surface of print head &...
-
Page 31: Eliminate Troubles
Eliminate Troubles Ø System troubles： The data wire of print head is loose Power off, connect the data wire No ink dot can spill out once again Electromagnetic-radiation Far away from the source of interference. radiation and restart the machine Print head system is damaged Replace the print head system l... -
Page 32: Daily Maintenance
Maintenance Operation Ø Daily maintenance 1. It is required to squeeze the ink cartridge for first use of the new printer& printer after maintenance or Disassemble & assemble as there is air, cleaner and maintenance solution remaining in the ink system and print head. - Page 33 Maintenance Operation B. Click Print icon to stop printing. If the print head is installed forward, Place an napkin under the print head firstly and then squeeze the ink cartridge slowly. The pressing force should be less than 1Newton, then will see some ink spilling through the nozzle. c.
- Page 34 temperature of environment shall be during 5 ～40 。 5. Replace the filter each two years as per inks usage. How to use the clean tool cartridge For the printer needs to work with solvent base ink, the clean procedure for the ink system and print head should be as following 1.Flush the gap of the print head with the cleaner bottle with spray for several times to dissolve the ink inside the nozzle.
- Page 35 under the ink cartridge continuously until 5ml of ink can be squeezed from the nozzle. Dry the ink in the nozzle and make a print test. Model of the maintenance cartridge: MA01,M01-S Warning label attached on the printer of solvent based ink： Note：...
- Page 36 for warranty. The maintenance terms stipulated in contract is base on this manual. Please read it carefully. Thanks for reading. If you have any questions or problems cannot solved, please consult supplier immediately!!! The Manual of Ink-jet Printer...
