Summary of Contents for Hafele dialock CL

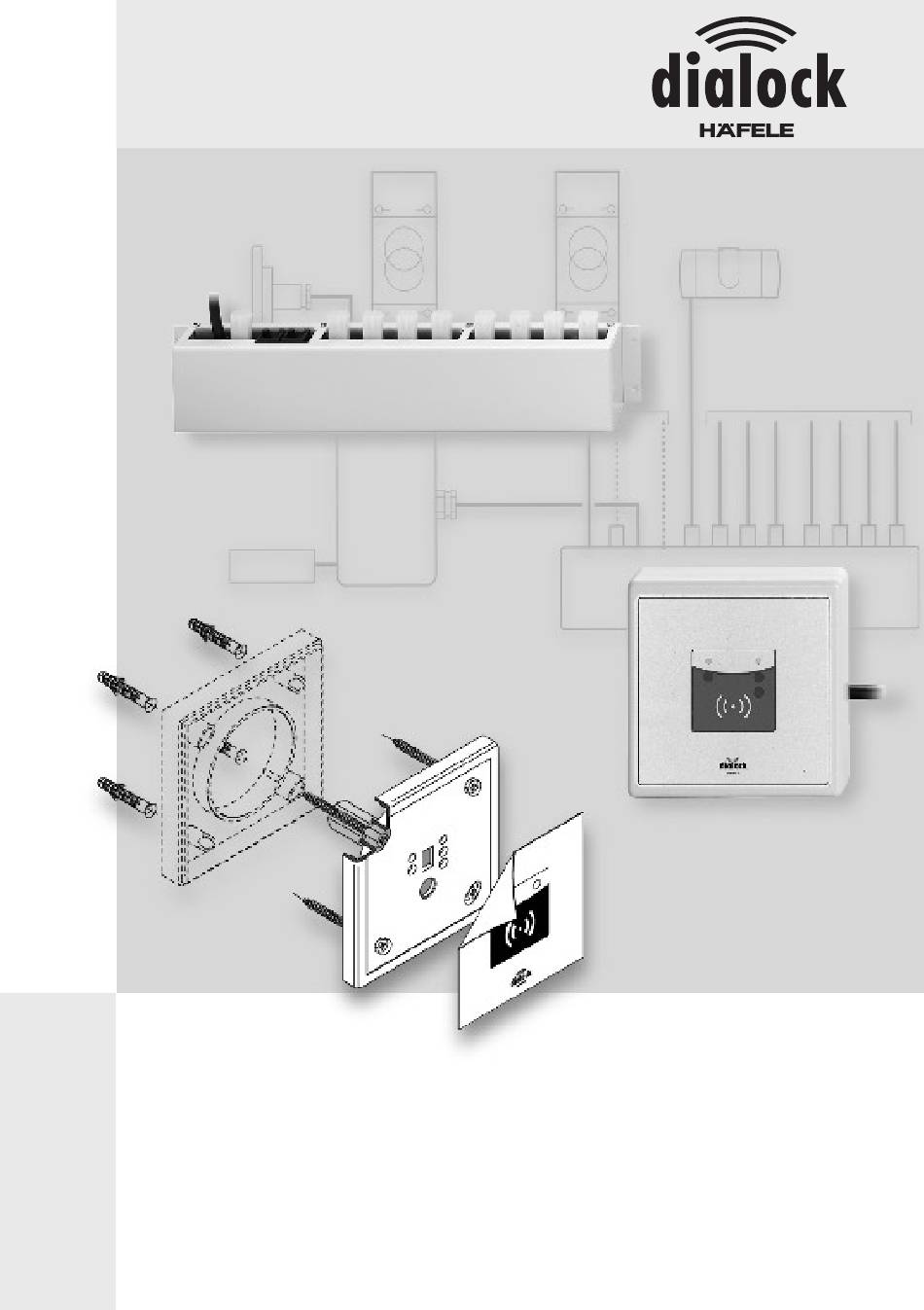

- Page 1 Montageanleitung Mounting instructions Instructions de montage Istruzioni di montaggio Instrucciones de instalación ZV-Terminal CL terminal Terminal VC Terminale ZV Terminal de CC...
- Page 2 Mounting instructions Areas of application The Dialock central locking device (CL) is, within the Basic Solution and in stand alone mode, applied as follows: suitable for applications where the locking units have to be controlled individually for smaller systems (recommended for max. 8 CL lock cases) Please contact your Dialock sales office in case another operation mode shall be chosen.
- Page 3 Mounting instructions Technical Information All CL terminals are preset to stand alone operation mode when supplied. Locking authorisations can be allocated to electronic keys directly at the terminal via programming key stick in this mode. Up to 1000 electronic keys can be allocated per CL terminal. Series connection of up to 16 output extenders allows to connect max.
- Page 4 Mounting instructions Installation The following steps are necessary for the installation: Install the reader module Install the control electronics module Electrical installation Reader module Flat-section cable (shielded, round type) Cascade cable CL lock case Additional CL lock cases Output extender Control electronics module Power supply for control electronics module Power feed cable...
- Page 5 Mounting instructions Installation of the reader module Preparations: Drill a hole into the brickwork for the connecting cable between reader module and control electronics module. Lay a cable duct or a protecting tube with a minimum internal diameter of 12 mm. Flush fitted installation: install the flush fitted box of 70 mm diameter with a minimum depth of 60 mm.
- Page 6 Mounting instructions Spacer plate Reader module 10 mm hole Front foil 3. For brickwork installation: Õ To fasten the reader module on the wall, drill four holes into the wall and insert 6 mm plugs into each. Õ Screw the reader module down using four 4 x 50 mm wood screws.
- Page 7 Mounting instructions and the fixing holes provided for this purpose in both spacer plate and reader module do correspond and the screw heads do not project above the countersinking. 6. Lead the free cable end through the hole in the brickwork to the control electronics module.
- Page 8 Mounting instructions Installation of the control electronics module Pre-conditions: All cables including power supply for all devices to be connected must have been laid For flush fitted installation: a sufficiently sized drill hole must have been provided Flush fitted installation (left hand) and surface installation (right hand) of the control electronics module Protecting tube (min.
- Page 9 Mounting instructions Installation of the Output Extender Access to the output extender must be possible even after installation. Õ When choosing the appropriate installation location, make sure all connections can still be accessed after completion. Outputs 1 - 8, connections for CL lock cases Female Western plug for data line connection to the next output extender Data line to the control electronics module, to the preceding output...
- Page 10 Mounting instructions Electrical installation TxData RxData Allocation plan of the control electronics module On-board control electronics module Female Western plug, connection for cascading cable Connection for CL display Connection for flat-section cable leading to the reader module (pin contact strip) Supply voltage Serial RS-232-interface to the PC or to the online adapter engl.
- Page 11 Mounting instructions Switching example, Basic Solution Control electronics module Reader module Transformer for CL terminal Transformer for output extender and CL lock cases Connection to the next output extender (data line and power supply) [not recommended within the Basic Solution]] CL lock cases Additional CL lock cases (up to 8 per output extender) Output extender with open collector outputs...
- Page 12 Mounting instructions reader module, power supply and perhaps for online adapter cable and CL display). 4. Drill a ø = 15 - 20 mm hole into the casing of the control electronics module for feed-through of the data line (cascading cable). Mind the position of the female Western plug.
- Page 13 Mounting instructions The electronic board can be destroyed if inappropriate tools are used! Õ Connect the cables of the devices to be connected by means of the connecting tool supplied only. Connecting tool Contact terminal 11. Open the contact terminals using the connecting tool. 12.
- Page 14 Mounting instructions Setting into Operation Allocate programming and deletion key sticks Programming and deletion key sticks are allocated in stand alone mode during first commissioning. This can be implemented only after supply voltage is fed to the CL terminal. The locking mode of the CL terminal is pre-set, such that the connected CL terminals are unlocked for approx.
- Page 15 Mounting instructions Õ Allocate programming and deletion key sticks once again. If errors occur again: Õ Contact your Dialock sales office. Brief operating instructions Allocate locking authorizations to the first locking unit 1. Place the green programming key stick in front of the reader module.
- Page 16 Mounting instructions 3. To clear the third locking unit, place - as long as the green LED flashes - the green programming key stick in front of the reader module again. The green LED flashes three times, i.e. three times in short intervals, is off slightly longer, flashes three times short and so forth.
- Page 17 Mounting instructions Operation of the CL terminal Õ Place the authorized electronic key at a distance of only a few centimetres in front of the reader module. The green LED is illuminated, the red LED extinguishes. All locking units to which the electronic key is authorized will be unlocked for approx.
- Page 18 Montageanleitung 732.29.110 Der Nachdruck der Montageanleitung, auch auszugsweise, oder die Nachahmung der Abbildungen und Zeichnungen sowie die Nachahmung der Gestaltung sind verboten. Für Druckfehler und Irrtümer, die bei der Erstellung der Montageanleitung unterlaufen sind, ist jede Haftung ausgeschlossen. Liefermöglichkeiten und technische Änderungen vorbehalten. Stand 02.01 Mounting instructions 732.29.110 The reprint of the mounting instructions, even extracts, or copying of the illustrations and...
