Thank you for purchasing the Studiomaster Professional A Series Speaker Active.
-
To ensure optimum performance and safety, please follow this instruction manual carefully.
-
Please retain this manual for future reference.
-
For any complaint, feedback or testimonials please contact our distributor / dealer.
2. Introduction
3. Features
4. Panel
7. Uses & Installation
8. Speaker Cabinet Description
9. Linking Multiple A Series
10. Connector Details

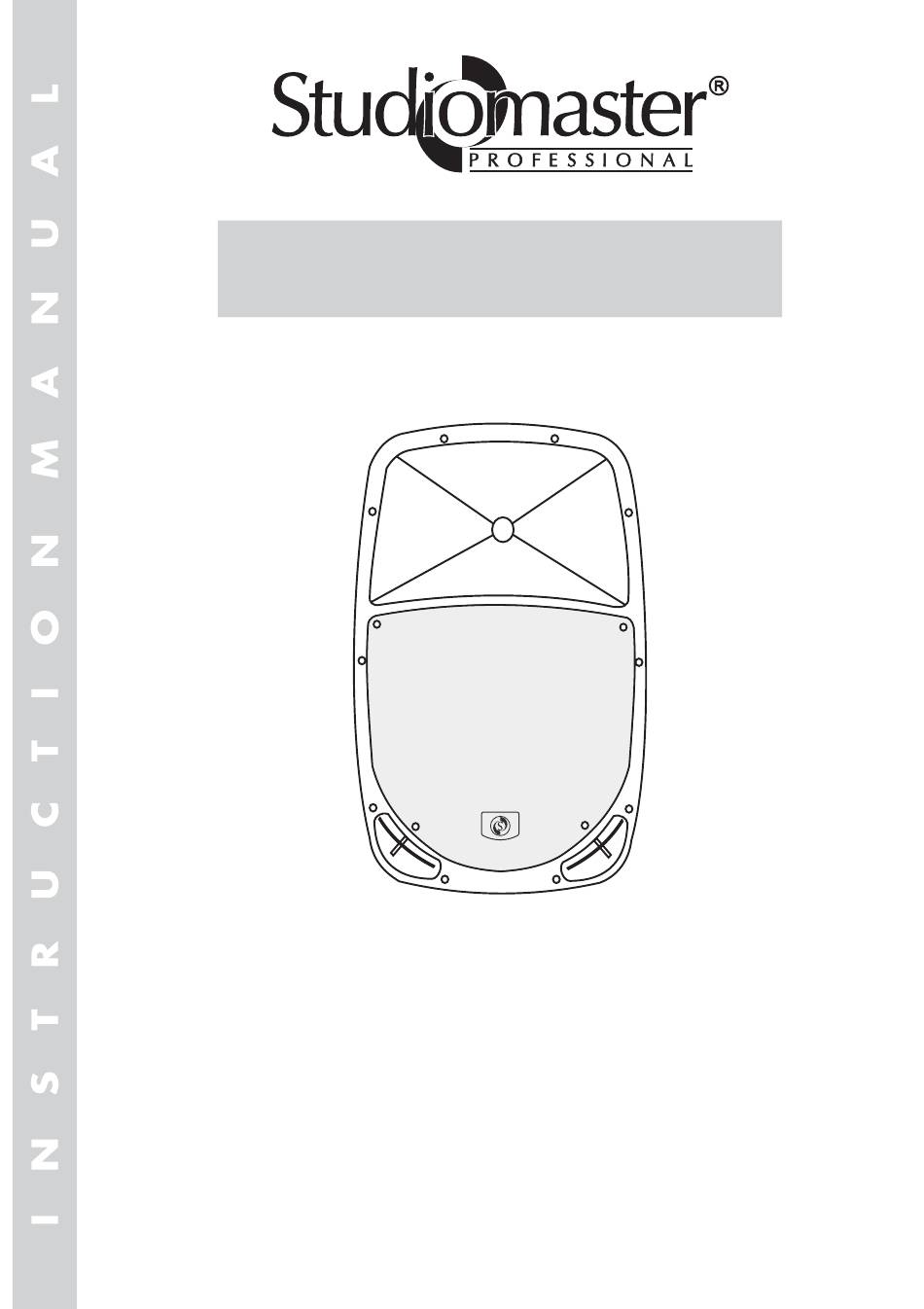

A Series
Professional Speaker Active
Advertisement
Related Manuals for Studiomaster Professional A Series
Summary of Contents for Studiomaster Professional A Series
- Page 1 A Series Professional Speaker Active Thank you for purchasing the Studiomaster Professional A Series Speaker Active. To ensure optimum performance and safety, please follow this instruction manual carefully. Please retain this manual for future reference. For any complaint, feedback or testimonials please contact our distributor / dealer.
-
Page 2: Important Safety Instructions
Explanation of Graphical Symbols CAUTION The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the RISK OF ELECTRIC SHOCK user to the presence of uninsulated “dangerous DO NOT OPEN voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 3: Warranty Information
1. Warranty Information Unpacking As part of our system of quality control, every Studiomaster Professional product is carefully inspected before leaving the factory to ensure flawless appearance. After unpacking, please inspect for any physical damage. In the event that damage has occurred, immediately notify your Studiomaster Professional dealer. - Page 4 Panel A-400 MEDIA PLAYER 88:88 ► USB II SD VOL+ VOL- PLAY/ NEXT PREV MODE PAUSE SD/MMC CARD INPUT 1 LINE MEDIA PLAYER LEVEL MEDIA LEVEL INPUT 2 LINE LEVEL MASTER LINE ON-LIMIT A-400 ACTIVE SPEAKER 240V~50Hz, 450W MAX T2.5A/250V~ POWER WARNING : THIS UNIT MUST BE EARTHED.
- Page 5 Panel A-500 MEDIA PLAYER 88:88 ► USB II SD VOL+ VOL- PLAY/ NEXT PREV MODE PAUSE INPUT 1 SD/MMC CARD LINE MEDIA PLAYER LEVEL MEDIA LEVEL INPUT 2 LINE LEVEL MASTER LINE ON-LIMIT A-500 ACTIVE SPEAKER 240V~50Hz, 750W MAX T3.15A/250V~ POWER WARNING : THIS UNIT MUST BE EARTHED.
-
Page 6: Panel Description
Use this connector to plug in your pen drive. (USB Mp3 flash memory) Terms of use : Studiomaster Professional respects intellectual property rights & we request our users to do the same. Please use Mp3 downloads only for program which you have legally purchased. PLEASE DO NOT USE PIRATED MUSIC OR PROGRAM. - Page 7 If the music device (Mobile phones, Laptops, Tablet phones etc.) is out of range (beyond 17 feet) of the Bluetooth Receiver (A Series Speaker) or if there is something blocking the Bluetooth signal, which shall be indicated by loss of audio or audio intermittency.
-
Page 8: Block Diagram
6. Block Diagram A 200 POWER MAINS SWITCH ±15V FUSE POWER ±HV SUPPLY ±LV +12V TRANSFORMER LINE OUT Mic Line sens INPUT 1 Volume COMPRESSION DRIVER Master Control Class AB 12dB/oct. high-pass filter WOOFER MEDIA Class H PLAYER 12dB/oct. 12dB/oct. Media high-pass low-pass... - Page 9 7. Uses & Installations Floor use (monitor) Use with pedestal stand 45º 1.5mt 8. Speaker Cabinet Description MEDIA PLAYER 88:88 ► USB AMPLIFIER II SD VOL+ VOL- PLAY/ NEXT PREV MODE PAUSE INPUT 1 SD/MMC CARD LINE MEDIA PLAYER LEVEL DRIVER MEDIA LEVEL INPUT 2...
- Page 10 A Series, A-200, A-400 & A-500 can be connected in daisy chain as shown above. • Connect the line output of first A series amplifier to the input of other A series amplifier & again the Line-out can be connected to the input of further amplifiers.
- Page 11 10. Connector Details Balanced use of stereo 1/4” jack plug Tip = Positive/Hot/+VE Phase Ring = Negative/Cold/-VE Phase Sleeve = Screen/Ground/Earth Ring Sleeve Unbalanced use of stereo 1/4” jack plug Tip = Signal Sleeve = Screen/Ground/Earth Sleeve Balanced use with XLR connectors Pin 2 = Positive/Hot/+VE Phase Input XLR - male...
-
Page 12: Technical Specifications
11. Technical Specifications Models A-200 A-400 A-500 System Bi-amp Bi-amp Bi-amp Amplifier Type High F. - class AB High F. - class AB Low F. - class H Low F. - class AB Low F. - class H High F. - class AB RMS power 100W LF + 20W HF 225W LF + 50W HF...
