1. Introduction
DM-448R series is a viewfinder passive infrared detector which adopts digital
micro-processor with energy-pile up-logical process, random dynamic time
split technology. The PIR parts adopt precision column lens to upgrade
receiving effect, higher sensitivity but lower false alarm. With the buit in
battery and the exclusive electricity save up model, it can be used for a long
time of as twice as the other brand detectors.
2.Specifications
Models
DM-448R
Detection Range: 6M
Transmit Distance:20-30M
Current Drain:About 10
A (common)
10mA(alarm)
Delay time : 15S-140Sadjustable (3greed
optianal)
PIR Section: Lens Data
In area
18+2
(Typical)
Max. Coverage 6*1.5m
/90
Alarm output radio transmit
working frequency: 433MHz
Alarm indication:
Red LED lighting for 2 second
3.Installation
3.1 General Guidelines
Don't face cold
or heat directly
3.2Anti-pests installation
Don't face the sun-
1.5m
PIR Lens

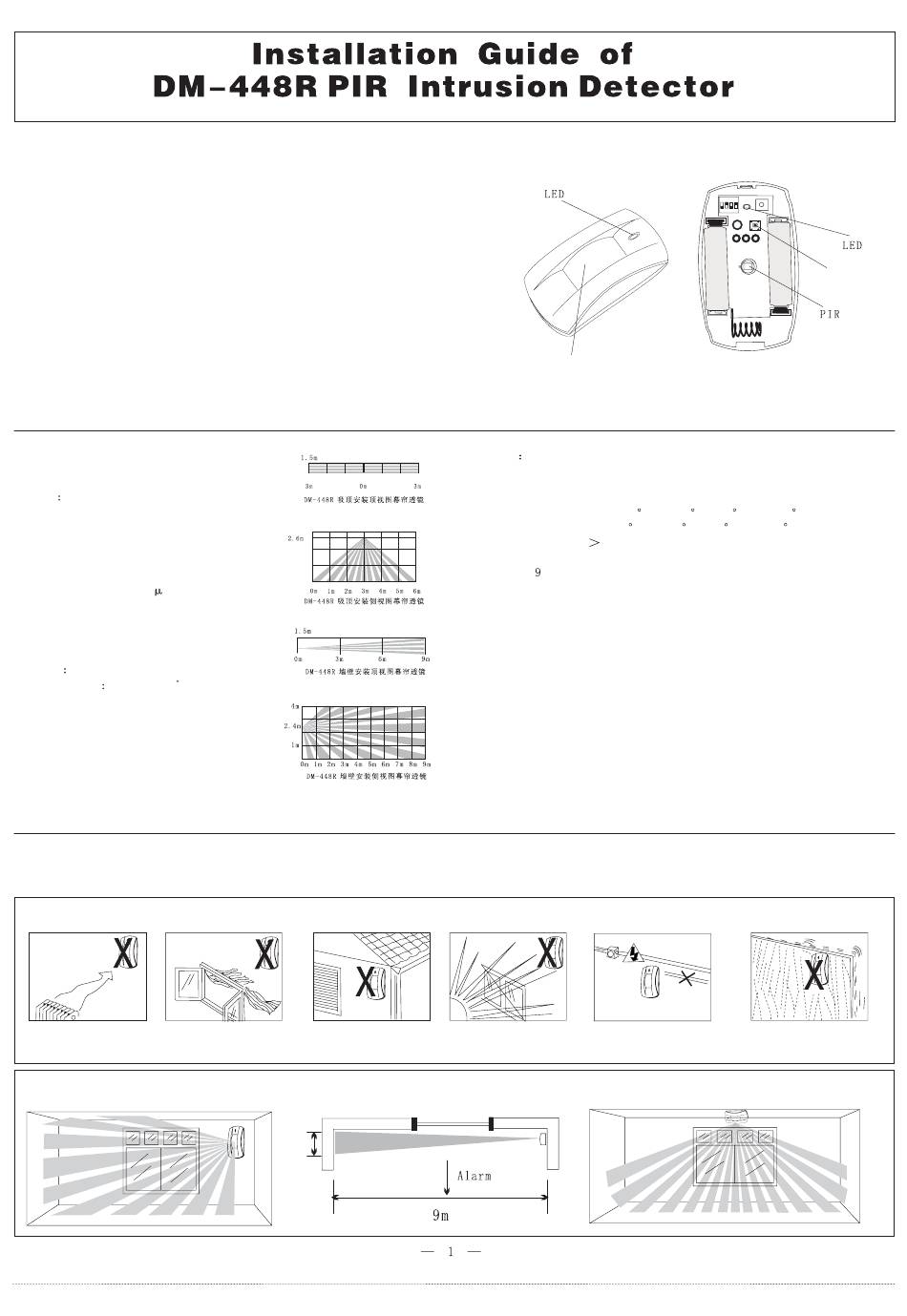

Picture 1:
appearance
Mount
hanging or ceiling mount: 1.8-2.8m
Environment:
Working Temperature: -10 C to 50 C(14 F to 122 F )
Storage Temperature :-20 C to 60 C (-4 F to 140 F)
Anti white light :
8 0 0 0 LUX
Dimension:
H*W*D: 0*50*40m m
Do not install near
shine directly
high-roltage cables
Coding switch
Picture 2:
internal structure
Don't face metal wall
