Microlink 9448 Manual

Triple technology detector with antimasking
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
MADE IN ITALY

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9448 and is the answer not in the manual?

Questions and answers

Related Manuals for Microlink 9448

Summary of Contents for Microlink 9448

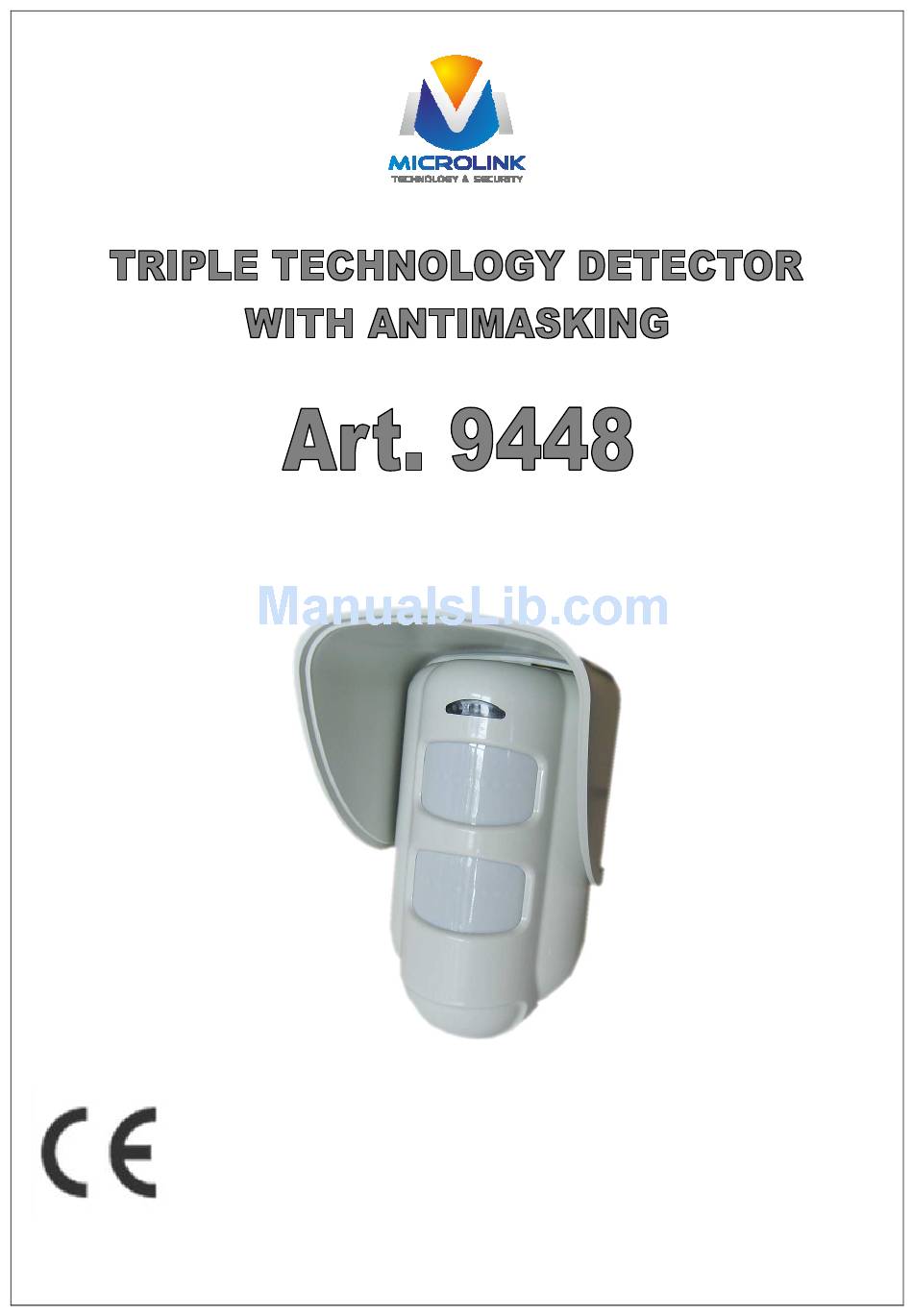

  • Page 1 MADE IN ITALY...

  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS Installation on the wall Coverage 15 mt, angle 90° Frequency microwave 10.525 GHz Alarm technology DSP(Digital Signal Processing) Detecting distance From 3 to 15 mt Detection areas 8 aeras for each sensor Installation height 0,8-1,4 m (reccomended 1mt) Detecting mode Selectable: AND-OR Power supply...
  • Page 3 Led Indicator Dip switch Tamper Microwave Adjustement PIR 1 Antimasking Led PIR 2 PIR 2 Adjustement screw Terminal Block...
  • Page 4 COVERAGE DIAGRAM Detection plan view. The microwave detection covering area is in red. Configuration AND position A,B,C Configuration OR1 Configuration OR 2 position A Configuration OR 2 position B Configuration OR 2 position C...
  • Page 5 DETECTION Configuration AND position A Configuration AND position B Configuration AND position C...

  • Page 6: Installation Method

    INSTALLATION METHOD For a correct working of the Triple Technology Detector you have to know that: • The microwave is sensitive to any movement, do not point the sensor towards hedges or tree branches. Adjust the range rightly. • Metal surfaces reflect the microwave modifying the range •...
  • Page 7 DIP 2: ANTI MASK Setting the DIP 2 in OFF anti-masking disabled. Setting the DIP 2 in ON frontal anti-masking enabled by active infrared. NOTE: Open the detector, connect the power supply cables, close the detector and power it. Wait for 5 minutes for the stabilization of the system If obscure the field detection of the detector and the dip 2 is ON, in a maximum time of 10 seconds generates a tamper alarm (the output-mask open) and remains in alarm as long as it remains the cause .

  • Page 8: Installation Tips

    WORKING/OPERATING TEST Setting Dip 1 in ON position Check and adjust the covering area (see the previuos diagramm) Move into the protecting area and check the specific indicators (LED) switching on. Considering that the two infrared sensors are sensitive to the across and not to the approach.
  • Page 9 Caution /Take note In presence of hedges or bushes, cover the beams infrared lens corresponding to the plants like in the figure.
