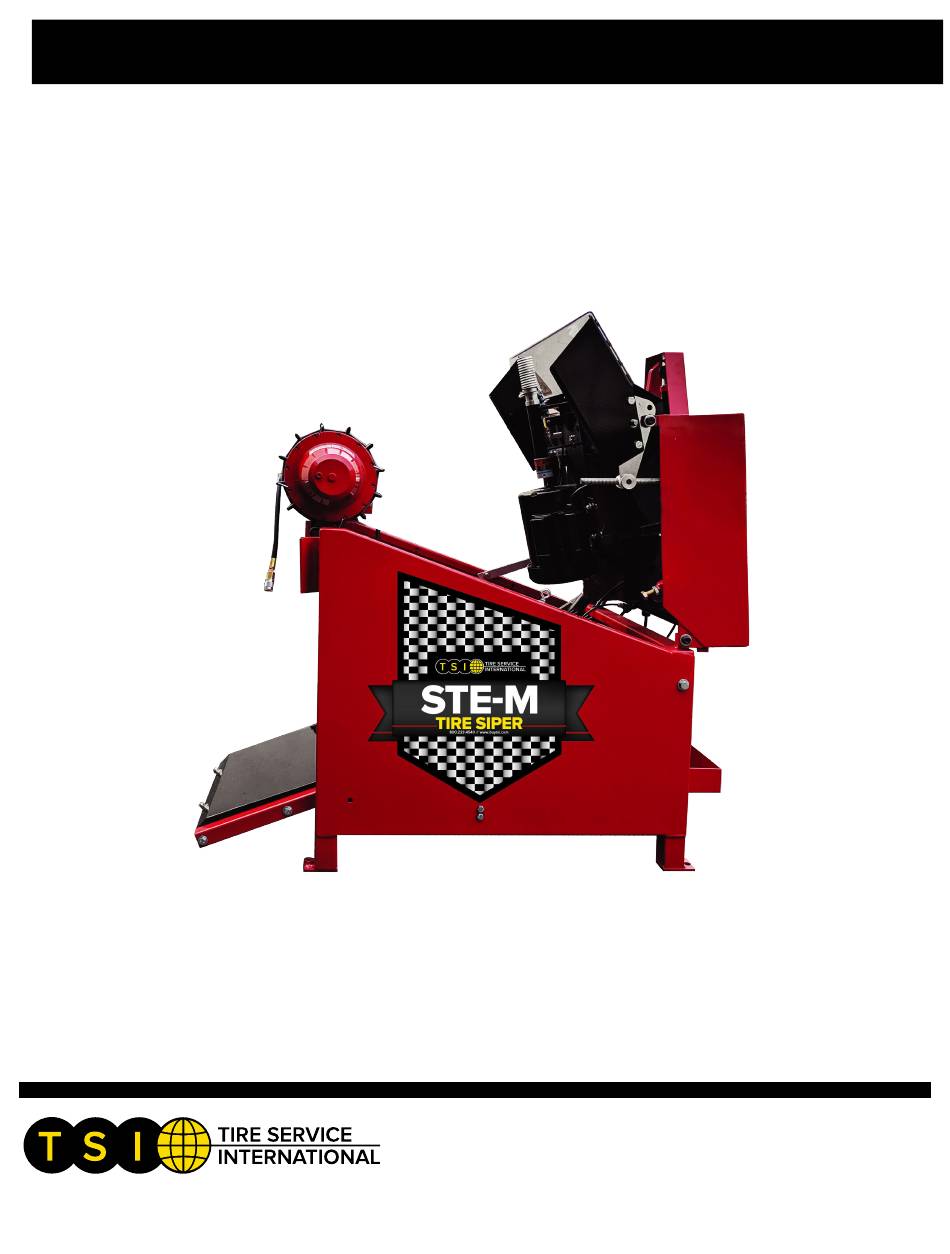

- Page 1 OPERATION & TROUBLESHOOTING STE-M AUTOMATIC CYCLE FEED 800.223.4540 3451 S. 40th St., Phoenix, AZ | www.buytsi.com Fax: 602.437.5025 | Email: sales@buytsi.com July 01, 2019 Made in the USA at our plant in Monticello, MN...
- Page 2 TIRE SIPING MACHINE OPTIONS - STE-M AUTOMATIC CYCLE FEED OPERATION - #6005 FIG. 1 STEP 1. Turn switch to the left to reverse motor into position on the tire to be siped. See (Fig. 1) FIG. 2 Approximate blade guide positioning shown on tire.
- Page 3 NOTE: Prior to shipping, the electronic components in each control box are factory set, tested and approved for optimum performance. If, upon installing a Siper STE-M with an Automatic Cycle Feed (ACF) feature and it fails to work, please review this guideline.
- Page 4 TIRE SIPING MACHINE OPTIONS - STE-M AUTOMATIC CYCLE FEED AUTOFEED CONTROL BOX BASICS - TROUBLESHOOTING FIG. 3 Reconnect power to the unit and turn “ON.” Look for a green light indicating the power is ON. See green arrow. (Fig. 3) If the green light is not on recheck the breakers.
- Page 5 TIRE SIPING MACHINE OPTIONS - STE-M AUTOMATIC CYCLE FEED FIG. 1 MOTOR GUIDE ADJUSTMENT: Occasionally due to machine use and movement the cross feed guide bars may become misaligned causing the right angle motor (Fig l. A) to pull hard and blow a fuse. Unplug the unit.
