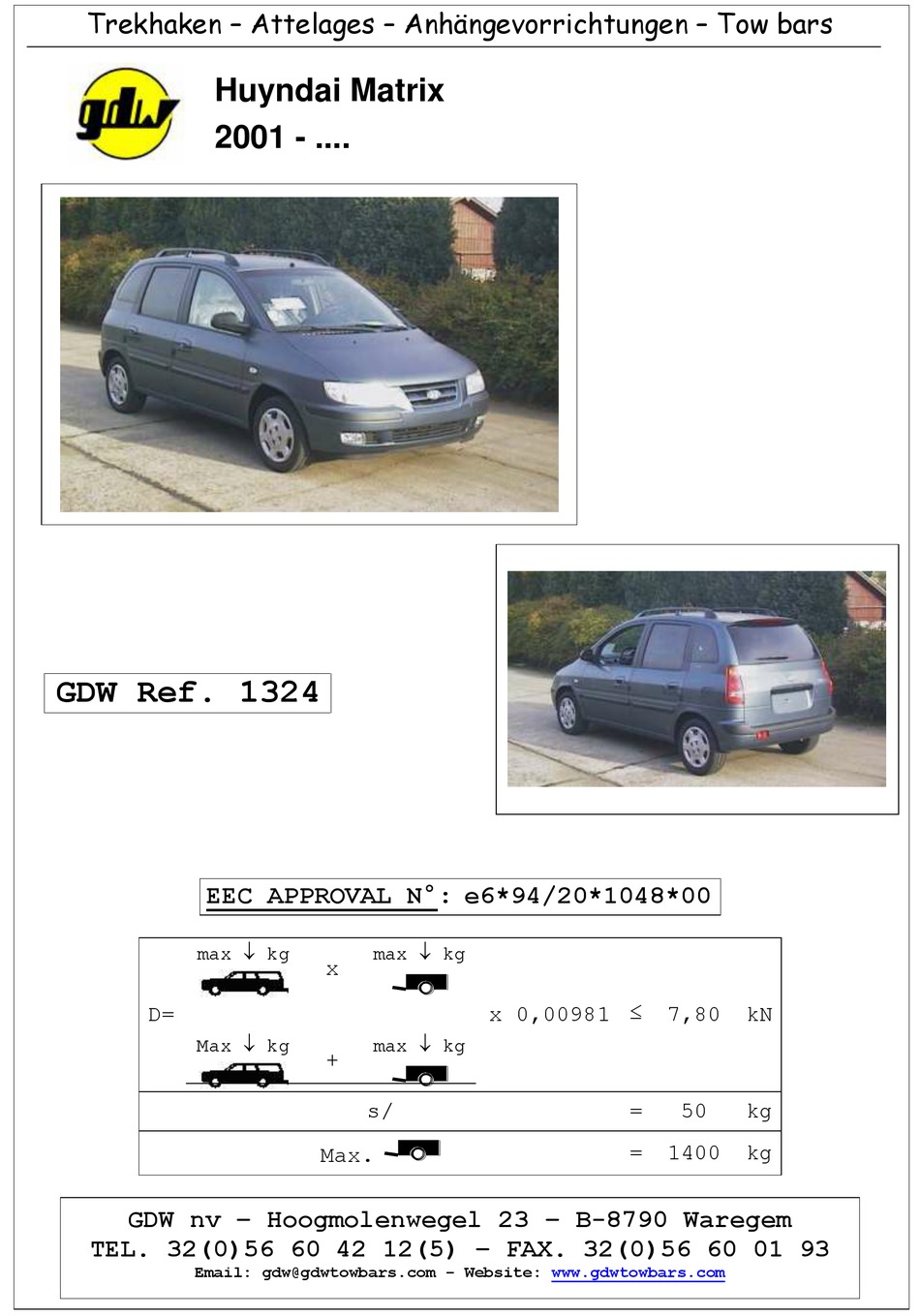

Trekhaken – Attelages – Anhängevorrichtungen – Tow bars
Huyndai Matrix
2001 - ....
GDW Ref. 1324
EEC APPROVAL N°: e6*94/20*1048*00
max kg
D=
Max kg
GDW nv – Hoogmolenwegel 23 – B-8790 Waregem
TEL. 32(0)56 60 42 12(5) – FAX. 32(0)56 60 01 93
Email: gdw@gdwtowbars.com - Website:
max kg
x
x 0,00981 ≤
max kg
+
s/
Max.
7,80
=
50
=
1400
www.gdwtowbars.com
kN
kg
kg
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for gdw 1324
Summary of Contents for gdw 1324
- Page 1 kg max kg x 0,00981 ≤ 7,80 Max kg max kg 1400 Max. GDW nv – Hoogmolenwegel 23 – B-8790 Waregem TEL. 32(0)56 60 42 12(5) – FAX. 32(0)56 60 01 93 Email: gdw@gdwtowbars.com - Website: www.gdwtowbars.com...
- Page 2 Hyundai Matrix 2001 - ..Ref. 1324...
- Page 3 Maak in het midden van de bumper een insnijding van 60mm breed en 20mm diep gemeten vanaf de onderrand. Monteer de bumper en maak de stootbalk vast aan de punten (E) van de trekhaak. Monteren van (*) en goed aanspannen. Samenstelling Trekhaak referentie 1324 1 kogelstang T45M000 2 rondsels 40x35x12x4 4 bouten M12x70 (*-*’)
- Page 4 Former une entaille au milieu du pare-chocs de 60mm de large et 20mm de profondeur mesuré à partir du bord inférieur. Monter le pare-chocs et fixer le butoir aux points (E) de l’attelage. Monter le (*) et bien fixer. Composition Attelage référence 1324 1 tige-boule T45M000 2 rondelles 40x35x12x4 4 boulons M12x70 (*-*’)
- Page 5 Make an incision in the middle of the bumper of 60mm wide and 20mm deep measured as from the lower rim. Assemble the bumper and affix the buffer beam on the points (E) of the tow bar. Assemble (*) and tighten firmly. Composition Tow bar reference 1324 1 ball T45M000 2 washers 40x35x12x4 4 bolts M12x70 (*-*’)
- Page 6 In der Mitte von Stoßstange einen Einschnitt machen von 60mm breit und 20mm tief ab Unterrand gemessen. Stoßstange montieren und Stoßbalken festmachen an Punkt (E) von Anhänge- kupplung. (*) montieren und gut anspannen. Zusammenstellung Anhängekupplung Referenz 1324 1 Kugelstange T45M000 2 Ritzel 40x35x12x4 4 Bolzen M12x70 (*-*’) 1 Montierstücke (-i)
- Page 7 Trekhaken Attelages Anhängevorrichtungen Tow bars Bouten - Boulons - Bolts - Bolzen DIN 912 - DIN 931 - DIN 933 - DIN 7991 Kwaliteit 8.8 M6 10,8Nm of 1,1kgm M8 25,5Nm of 2,60kgm M10 52,0Nm of 5,30kgm M12 ...
