20-Jun.2017 Ver.1.3
WBSBMVGXB-1
TAIYO YUDEN CO., LTD.
®

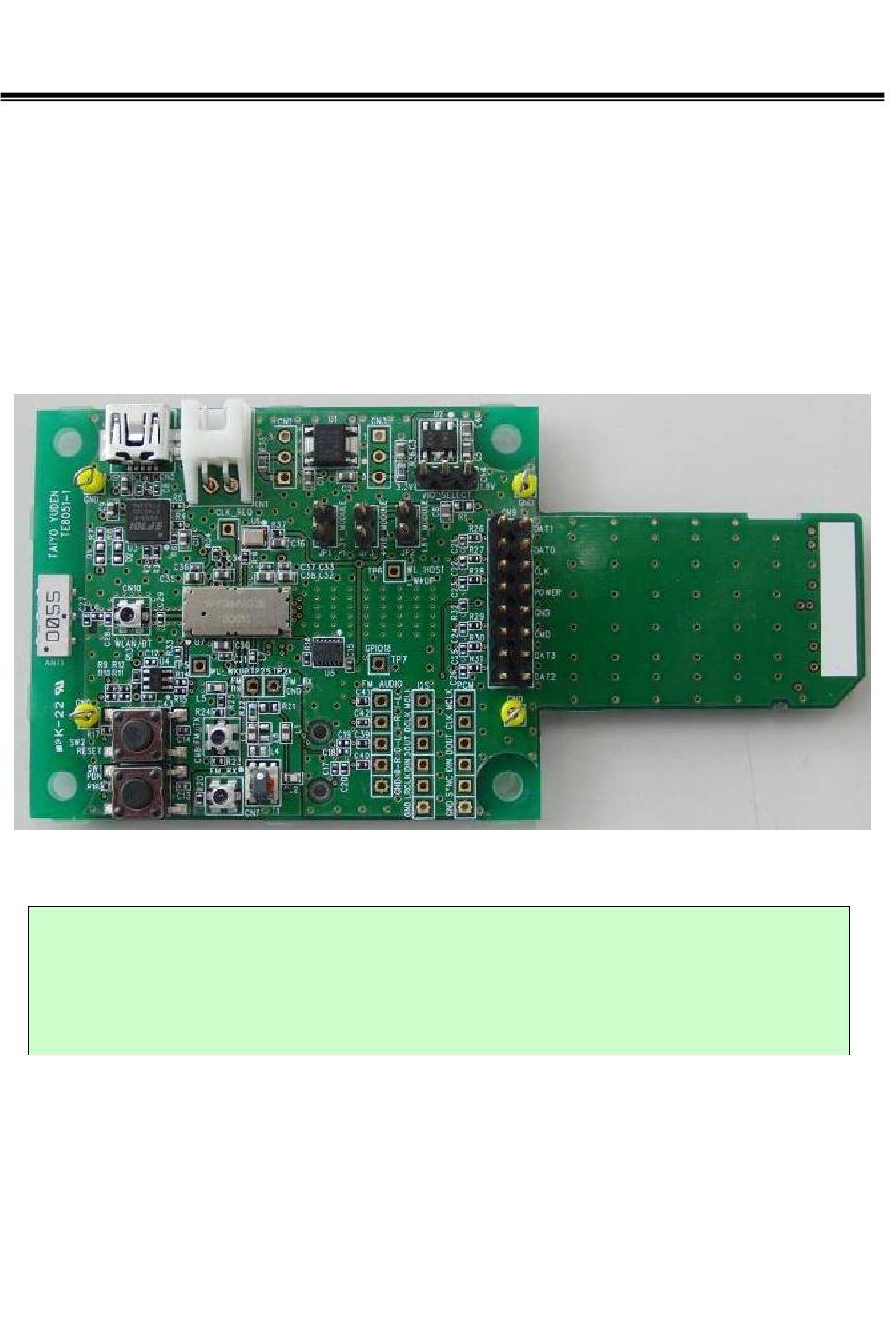

Wireless LAN and Bluetooth
Module Evaluation Board
( for WYSBMVGX4 / WYSBMVGX4-I / WYSBMVGXB )
WBSBMVGXB-1
This evaluation board is an object for experiment of operation, and does not
guarantee quality. Moreover, the conditions of a module of operation are not
recommended in the schematic, the parts, the software, etc. currently used
for evaluation board.
TAIYO YUDEN CO., LTD.
1/16
Advertisement
Table of Contents
Related Manuals for TAIYO YUDEN WBSBMVGXB-1
Summary of Contents for TAIYO YUDEN WBSBMVGXB-1
- Page 1 20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. ® Wireless LAN and Bluetooth Module Evaluation Board ( for WYSBMVGX4 / WYSBMVGX4-I / WYSBMVGXB ) WBSBMVGXB-1 This evaluation board is an object for experiment of operation, and does not guarantee quality. Moreover, the conditions of a module of operation are not recommended in the schematic, the parts, the software, etc.
- Page 2 ATTENTION: This module requires device drivers that are under Japan export control. Depending on the customer’s country and application (e.g. weapons), TAIYO YUDEN CO., LTD. may not be able to provide these drivers to all customers. Please contact your local TAIYO YUDEN CO., LTD. sales office for additional information.
-
Page 3: Table Of Contents
20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. TABLE OF CONTENTS Introduction ................................4 Mounted module ..............................4 Accessories ................................4 Example of connection ............................5 Hardware recommendations ..........................6 Software ................................6 Evaluation board layout ............................7 Pin description of evaluation board ......................8 - 9 BOM of evaluation board .......................... -
Page 4: Introduction
This evaluation board is prepared for customers to understand the software operation and to measure the throughput performance or the RF performance of WLAN module product of TAIYO YUDEN. This document describes the setup procedure, layout, BOM and schematics of this evaluation board Mounted module ®... -
Page 5: Example Of Connection
20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. Example of connection DC power supply cable (red: DC5V, blue: GND) HOST USB mini WYSBMVGXB RF probe* *RF probe : MM126036(MURATA) / MXHS83QE3000(MURATA) / MXHS83QH3000(MURATA) or equivalent Operating procedure: (1) Supply 5.0V DC to the evaluation board. -
Page 6: Hardware Recommendations
20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. Hardware Recommendations HOST PC Specifications; CPU : 1000MHz or higher RAM: 500MB or more I/F : USB, SDIO For example : IBM Think Pad X40 / IBM Think Pad X60,X61 Note : If you use host PC with Windows XP, Service pack 3 is required. -
Page 7: Evaluation Board Layout
20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. Evaluation board layout Board size : 102 mm x 50 mm 102mm CN1:DC power supply TP1:GND TP4:GND JP1: 3.3V to module CN4: VIO select CN5:USB mini type B connector JP3: VIO to module JP2: 1.8V to module... -
Page 8: Pin Description Of Evaluation Board
20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. Pin description of evaluation board JP1: 3.3V to module Pin name Direction Description Output 3.3V output input 3.3V input to the module JP2: 1.8V to module Pin name Direction Description Output 1.8V LDO output input 1.8V input to the module... - Page 9 20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. CN9:SDIO connector Pin name Direction Description SD _DATA2 Input/Output SDIO Data Line 2 Ground SD _DATA3 Input/Output SDIO Data Line 3 Ground SD _CMD Input/Output SDIO COMMAND Ground Ground Ground SDIO _POWER Output...
-
Page 10: Bom Of Evaluation Board
20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. BOM of evaluation board PART NAME Description Supplier Remark LMK107BJ475KA-T Capacitor Taiyo Yuden or equivalent LMK107BJ475KA-T Capacitor Taiyo Yuden or equivalent LMK107BJ475KA-T Capacitor Taiyo Yuden or equivalent LMK107BJ475KA-T Capacitor Taiyo Yuden or equivalent... - Page 11 20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. UMK105CH100DV-F Capacitor Taiyo Yuden or equivalent AMK107BJ106MA-T Capacitor Taiyo Yuden or equivalent AMK107BJ106MA-T Capacitor Taiyo Yuden or equivalent UMK105CH100DV-F Capacitor Taiyo Yuden or equivalent UMK105CH100DV-F Capacitor Taiyo Yuden or equivalent AMK107BJ106MA-T Capacitor Taiyo Yuden or equivalent...
- Page 12 20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. MCR01 220J Resistor ROHM or equivalent MCR01 220J Resistor ROHM or equivalent MCR01 220J Resistor ROHM or equivalent MCR01 220J Resistor ROHM or equivalent MCR01 220J Resistor ROHM or equivalent MCR01 220J Resistor...
- Page 13 20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. converter TPS3808G01 reset supervisor IC T.I. or equivalent Epson Toyocom or SG-3030LC 32KHz oscillator equivalent Epson Toyocom or TG-5025CG 38.4MHz TCXO 38.4MHz equivalent WYSBMVGXB WLAN Module TAIYO YUDEN HP03-15AFKP Nikkai or equivalent HP03-15AFKP Nikkai or equivalent N.M.
-
Page 14: Schematic Of Evaluation Board
20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. TAIYO YUDEN CO., LTD. 14/16... - Page 15 20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. TAIYO YUDEN CO., LTD. 15/16...
- Page 16 20-Jun.2017 Ver.1.3 WBSBMVGXB-1 TAIYO YUDEN CO., LTD. WYSBMVGXB TAIYO YUDEN CO., LTD. 16/16...
