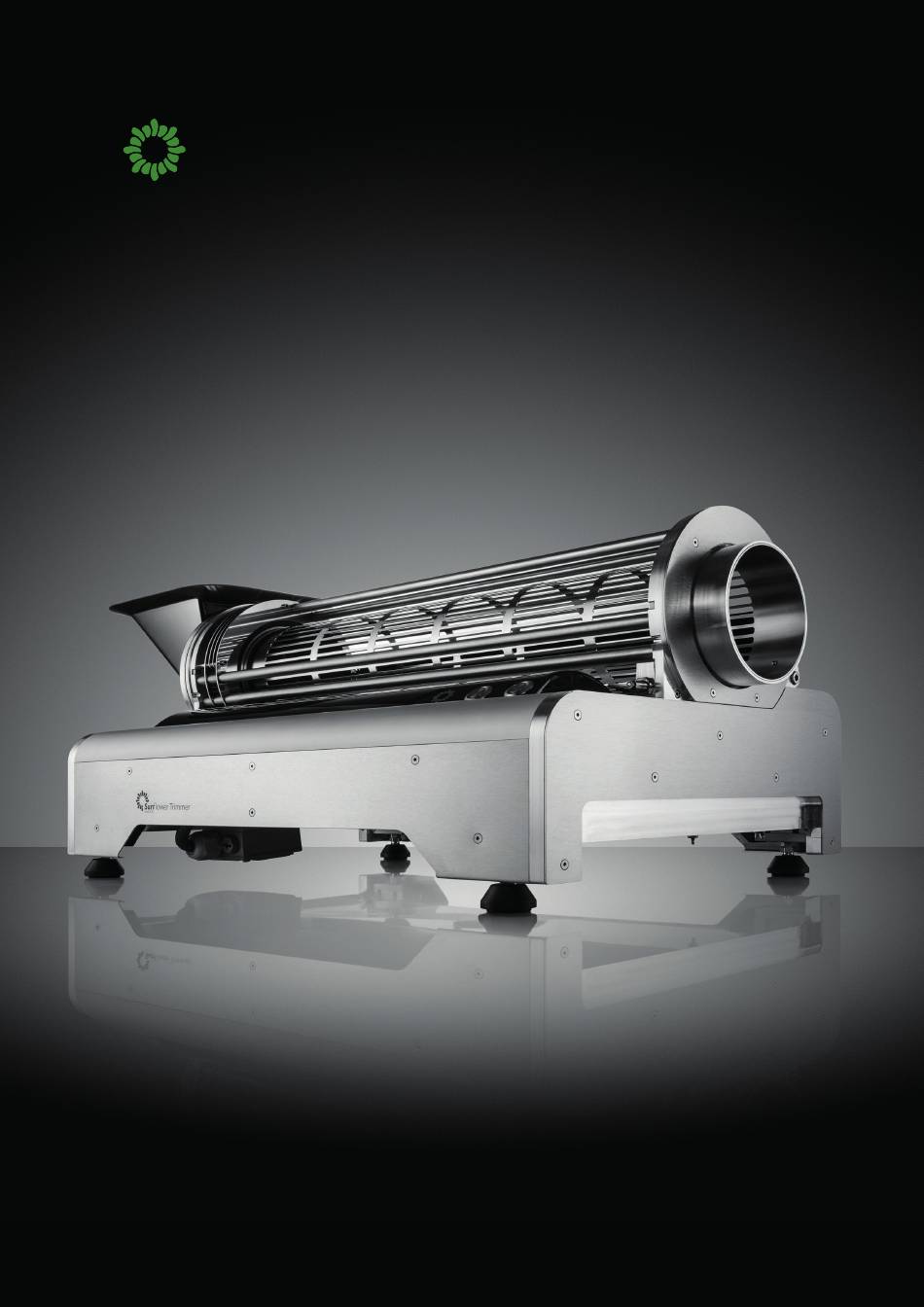

- Page 1 SUNFLOWER TRIMMER® TRIMMING IS EASY AUTOMATIC - L USER MANUAL WARRANTY FORM www.sunflower-trimmer.com...
- Page 2 USER MANUAL AND WARRANTY FORM SUNFLOWER TRIMMER® TRIM LIKE A PROFESSIONAL SUNFLOWER TRIMMER ®...
-
Page 3: Table Of Contents
1. Potential risks and safety warning 1.1 Protective equipment 1.2 Machine unpacking and installation 1.3 Protective cover 1.4 Other risks and recommendations 2. Machine basic description 2.1 General information 2.2 Range of use 2.3 Electrical connection 3. Operating and handling 3.1 Connection to power source 3.2 Leveling and start up 3.3 Rotor / cutting blade adjustment... -
Page 4: Machine Unpacking And Installation
1.2 MACHINE UNPACKING AND INSTALLATION When unpacking the machine out of the box please follow the instruction below: 1. Unpacking the table including ventilator 2. Unpacking the machine 3. Installation of the machine on the table SUNFLOWER TRIMMER ®... - Page 5 4. Unpacking the upper frame 5. Installation of the upper frame on the machine more info in section 3.6. 7. Mounting the chute 6. Unpacking the chute to trimmer body www.sunflower-trimmer.com...
- Page 6 8. Ventilator connection Connect the ventilator to the machine using a plastic hose. 9. Bag installation SUNFLOWER TRIMMER ®...
-
Page 7: Protective Cover
1.3 PROTECTIVE COVER Always use protective cover on the upper frame when operating the machine. 1.4 OTHER RISKS AND RECOMMENDATIONS Keep in mind your own safety at all time. Do not use the trimmer in dusty or wet environment.The electromotor is not water resistant. Never touch or open the top cover when the motor and rotor is rotating. -
Page 8: Machine Basic Description
The case of the trimmer is made of stainless steel and fastened to the main frame from all sides. The electromotor is placed outside of the machine. The cutting rotor and adjustable blade is positioned next to the electromotor. The trimmer stands on four adjustable rubber blocks. SUNFLOWER TRIMMER ®... -
Page 9: General Information
2.1 GENERAL INFORMATION • The ON / OFF switch is positioned on the front of the trimmer. • The button to the left from ON / OFF switch start up the ventilator. • You can adjust the distance between the blade and cutting rotor using two handling wheels. -
Page 10: Operating And Handling
Euro connector 2 serves for ventilator connection 3.2 LEVELING AND START UP We recommend to set up the machine to be inclined a bit using the ad- justable legs. Tilt of the machine Tilt of the table SUNFLOWER TRIMMER ®... - Page 11 Make sure the fastening levers are in the right position! Do not power on the machine without levers in "locked" position unlocked locked The machine starts up by right ON / OFF switch on the front side of the frame. The ventilator starts up by the ON / OFF switch next to the machine power on button.
-
Page 12: Rotor / Cutting Blade Adjustment
4. The cutting blade has to be adjusted from both ends using the two handling wheels – see picture from the back of the trimmer where the two handling wheels are positioned. Always make sure the rotor and cutting blade are not in collision with each other. SUNFLOWER TRIMMER ®... -
Page 13: Flowers Infeeding
3.4 FLOWERS INFEEDING The flowers are inserted into the machine using the black chute. Never insert dirty flowers into the machine. Insert clean flowers without stalks or other parts which could damage the machine. www.sunflower-trimmer.com... -
Page 14: Cleaning During Work
There is a risk of damage to the surface which may result in corrosion! Pay close attention to avoid injury from contact with sharp parts of the machine. Cleaning of the rotor Cleaning of the blade Dismount the handling wheels in order to tilt out the cutting blade. SUNFLOWER TRIMMER ®... -
Page 15: Upper Frame Exchange
Ventilator cleaning Before cleaning of the ventilator unscrew the winged screws and remove the upper flange from the ventilator. 3.6 UPPER FRAME EXCHANGE Use maximum caution when exchanging the upper frame and follow these instruction: Make sure the machine is uplugged from electricity and its parts are not moving. - Page 16 4. Put the upper frame aside carefully. Installation of the upper frame: 1. Take the upper frame with both hands – see picture During installation make sure the upper frame bar is inserted correctly into the lock on the machine. SUNFLOWER TRIMMER ®...
- Page 17 2. Let the upper frame sit on the machine. 3. Lock the levers 4. Install the upper cover, the chute and you are ready www.sunflower-trimmer.com...
-
Page 18: Cleaning
• 2. Make sure no cut pieces of the plant getting outside of the cutting area. • 3. Clean the rotor of ventilator. • 4. Empty the waste bag. 5. STORAGE Store your machine in clean and dry place! SUNFLOWER TRIMMER ®... -
Page 19: Warranty
6. WARRANTY FORM In order to acquire a 5 year warranty according to our warranty conditions available on www.sunflower-trimmer.com it‘s necessary to complete the following: • 1. Fill out and keep the warranty form. • 2. Complete the warranty form with stamp of the seller and date of purchase. •... - Page 20 WWW.SUNFLOWER-TRIMMER.COM...
