Summary of Contents for Duxbury Networking N.JGS516PE-100EUS
-

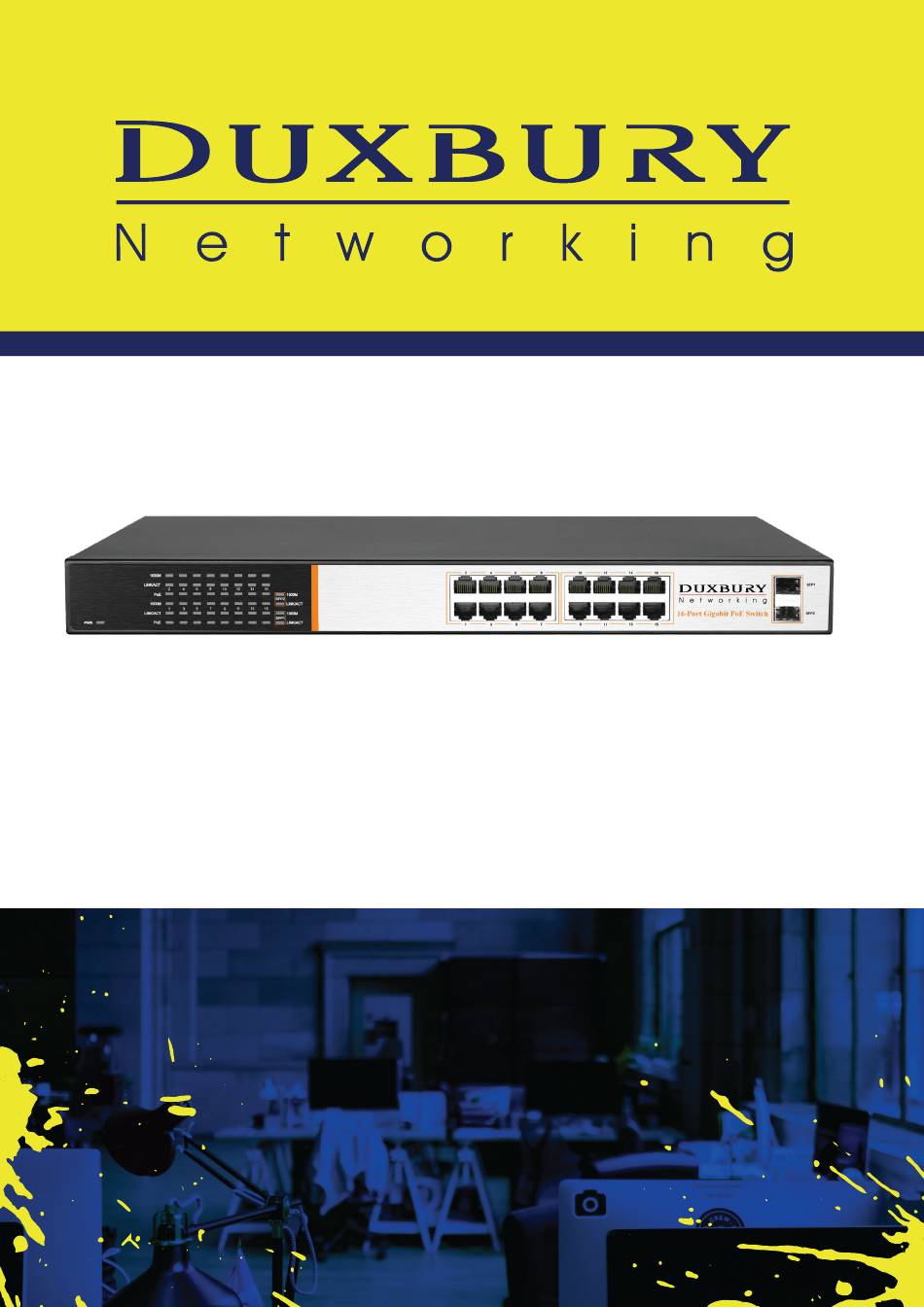

Page 1: Installation Guide
16 Port Gigabit POE Switch INSTALLATION GUIDE... -
Page 2: Key Features
KEY FEATURES 16 Port 10/100/1000Mbps PoE 150W internal power adapter. with 2 gigabit SFP port. Non-blocking switching architecture Complies with the IEEE 802.3af/at that forwards and filters packets at standard. full wire speed for maximum throughput. Supports MAC address auto-learning and auto-aging. 36 Gbps Switching Capacity. -
Page 3: Installation Diagram
INSTALLATION DIAGRAM Internet Power 24-Port Gigabit Switch Bridge IP-Camera Indicator Description Normal Troubleshooting Power Power If red light is visible, please check if the Indicator external power supply is connected correctly. If red is light visible, please check if the corresponding RJ45 access network device and the network cable is connected correctly. - Page 4 SUPPORT Thank you for selecting a Duxbury Networking product. Duxbury Networking recommends that you use only the official Duxbury Networking resources. If you experience any technical difficulty with your product, please locate the serial number on the label of your product and contact us on:...
