SAVE THESE INSTRUCTIONS
DEALER/INSTALLER: GIVE TO HOMEOWNER

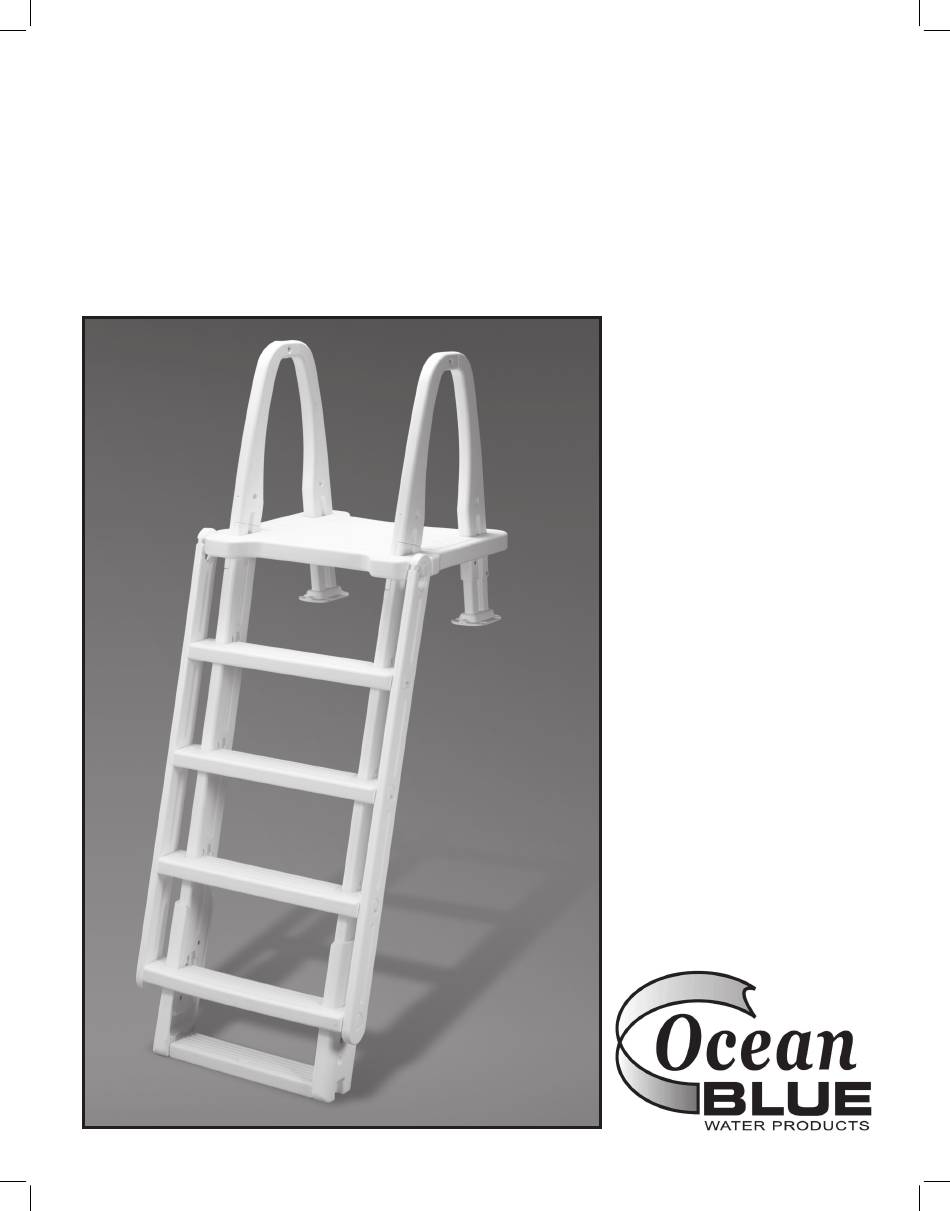

Ocean Blue
Outside Safety Ladder
Assembly and Installation Manual
Use with 30"/38"
Ocean Blue Mighty Step
to make a complete pool
entrance system.
Outside Safety Ladder
alone cannot be used to
enter/exit swimming pool.
Part no. 400950
Not for Use
with Soft
Sided Pools
Advertisement
Related Manuals for Ocean Blue 400950
Summary of Contents for Ocean Blue 400950
- Page 1 SAVE THESE INSTRUCTIONS DEALER/INSTALLER: GIVE TO HOMEOWNER Ocean Blue Outside Safety Ladder Assembly and Installation Manual Use with 30”/38” Ocean Blue Mighty Step to make a complete pool entrance system. Outside Safety Ladder alone cannot be used to enter/exit swimming pool.
- Page 2 Ocean Blue Outside Safety Ladder Use with 30”/38” Ocean Blue Mighty Step ASSEMBLY INSTRUCTIONS - PLEASE READ BEFORE ATTEMPTING ASSEMBLY 2 - Mounting Blocks 1 - Hardware/Safety Pack 2 - Side Rails 2 – Swing- up Rails 3 - Swing-up...
- Page 3 Step #1 Tools Needed: Rubber Mallet Using a rubber mallet, tap the Swing-up Treads into place. Lay out the Swing-up Rails and Swing-up Treads as Place the remaining Swing-up shown. NOTE: The bottom Swing-up Rail over the tabs of the Swing-up Treads and tap into place using the Tread has a “house shaped”...
- Page 4 Step #3 continued Slide two Handrails up through Stand up the assembly and us- Laying the the bottom of the Platform using the ing a rubber mallet tap the Platform assembly on its openings nearest to the tabs. down until seated on the lugs on side, insert the the Side Rails.
- Page 5 Return Handrails as shown. Ladder is now ready to attach to Flex the oval openings on the Using the rubber mallet, tap Ocean Blue Mighty Step. Swing Ladder assembly over the the Mounting Blocks onto the two round tabs on the Platform.
- Page 6 Step #5 continued Position the ladder over the pool step with the Mounting Blocks sitting flat on the top tread. Center the ladder side-to-side and align the back of the Mounting Blocks next to the groove in the back of the Platform as shown.
-
Page 7: Important - For Your Safety
Safety ladder for proper operation. Check padlock for proper operation, lubricate if necessary. WINTERIZING: Unfasten the ladder from the pool ledge and from the Ocean Blue Mighty Step. Store in a safe place out of the elements. - 6 -... -
Page 8: Safety Rules
Not for Use with Soft Sided Pools OCEAN BLUE WATER PRODUCTS WARRANTY Ocean Blue Water Products warrants their swimming pool ladders to be free from defects in workmanship for one year from date of purchase DO NOT RETURN DEFECTIVE PART TO DEALER...
