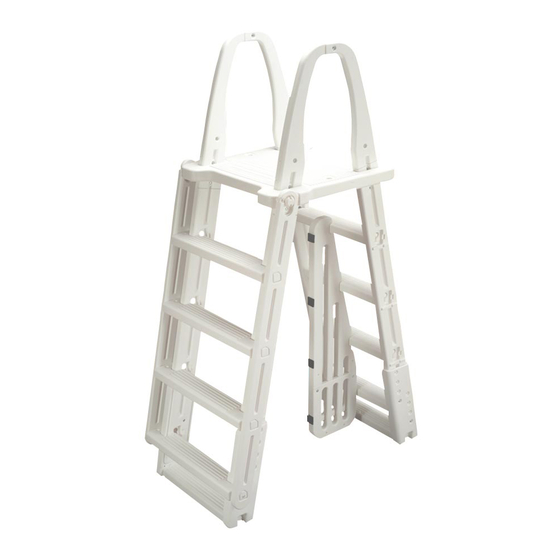

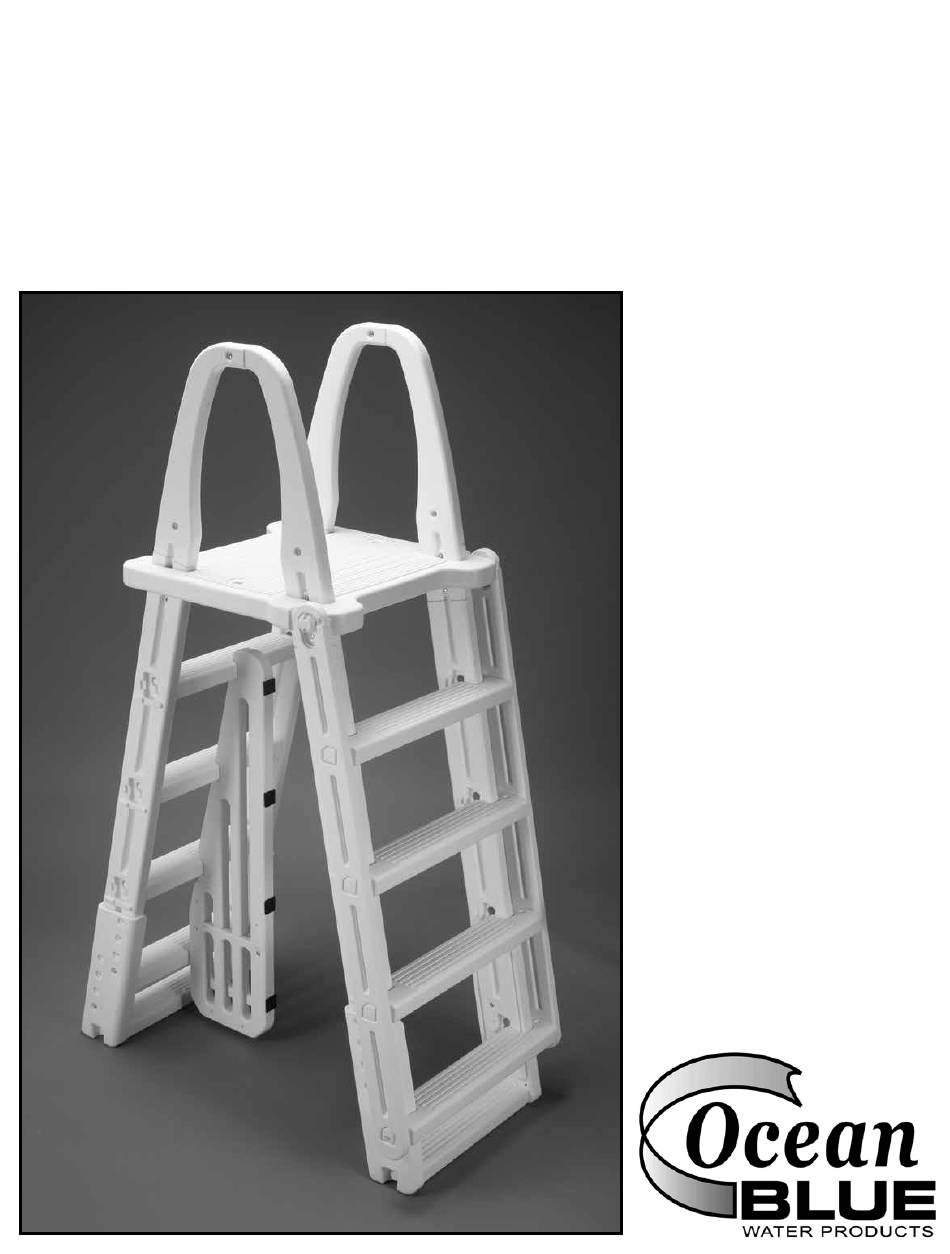

- Page 1 SAVE THESE INSTRUCTIONS DEALER/INSTALLER: GIVE TO HOMEOWNER Ocean Blue Above Ground A-Frame Pool Ladder Assembly and Installation Manual Part no. 400200 Not for Use with Soft Sided Pools...
- Page 2 Ocean Blue A-Frame Ladder for above ground pools ASSEMBLY INSTRUCTIONS - PLEASE READ BEFORE ATTEMPTING ASSEMBLY 2 – Swing-up Rails 4 - Side Rails 1 - Hardware/Safety Pack 1 - Anti-Swim Barrier Extension 3 - Swing-up Treads 1 - Bottom...
- Page 3 Step #1 Tools Needed: Rubber Mallet Using a rubber mallet, tap the Swing-up Treads into place. Lay out the Swing-up Rails and Swing-up Treads as Place the remaining Swing-up shown. Rail over the tabs of the Swing-up NOTE: The bottom Swing-up Treads and tap into place using the Tread has a “house shaped”...
- Page 4 Step #3 continued Lay one of the Side Rail assemblies on a flat surface. Matching the tabs in the Fixed Ladder Treads to the notches in the Side Rail assembly, use Placing your foot on the Side the rubber mallet to tap the treads Rail to hold it steady, use the rubber into place.
- Page 5 Step #4 Tools Needed: Rubber Mallet, cordless drill with Phillips bit. Position the Anti-Swim Barrier Using the rubber mallet, tap Extension over the Anti-Swim Bar- the Anti-Swim Barrier into place. rier so that the length of the Barrier Lay the Anti-Swim Barrier and the Anti-Swim Barrier Extension on matches the length from the top tread to the bottom tread of the...
- Page 6 Step #5 continued Position the remaining Fixed Using two #10 x 3/4” self- Ladder Tread so that the tabs align tapping screws, connect the Hand- with the notches at the bottom of rails together by using one screw the Side Rail assemblies and tap in on the outside and one screw on with the rubber mallet until the tread the inside.
- Page 7 Step #6 Step #5 Placing A-Frame Ladder in Pool CHOOSE A LOCATION THAT IS LEVEL AND IN FULL VIEW. POOL MUST HAVE COMPETENT ADULT SUPERVISION AT ALL TIMES WHEN IN USE. Tools Needed: Cordless drill with Phillips bit. Check to make sure the hole Carefully lift the ladder over the pool wall locations in the platform are clear making sure the Swing Ladder is on the outside...
- Page 8 PRODUCTS WARRANTY assembly, installation instructions in the sequence Ocean Blue Water Products warrants and use. shown. their swimming pool ladders to be free from defects in workmanship for one year from date of purchase...
