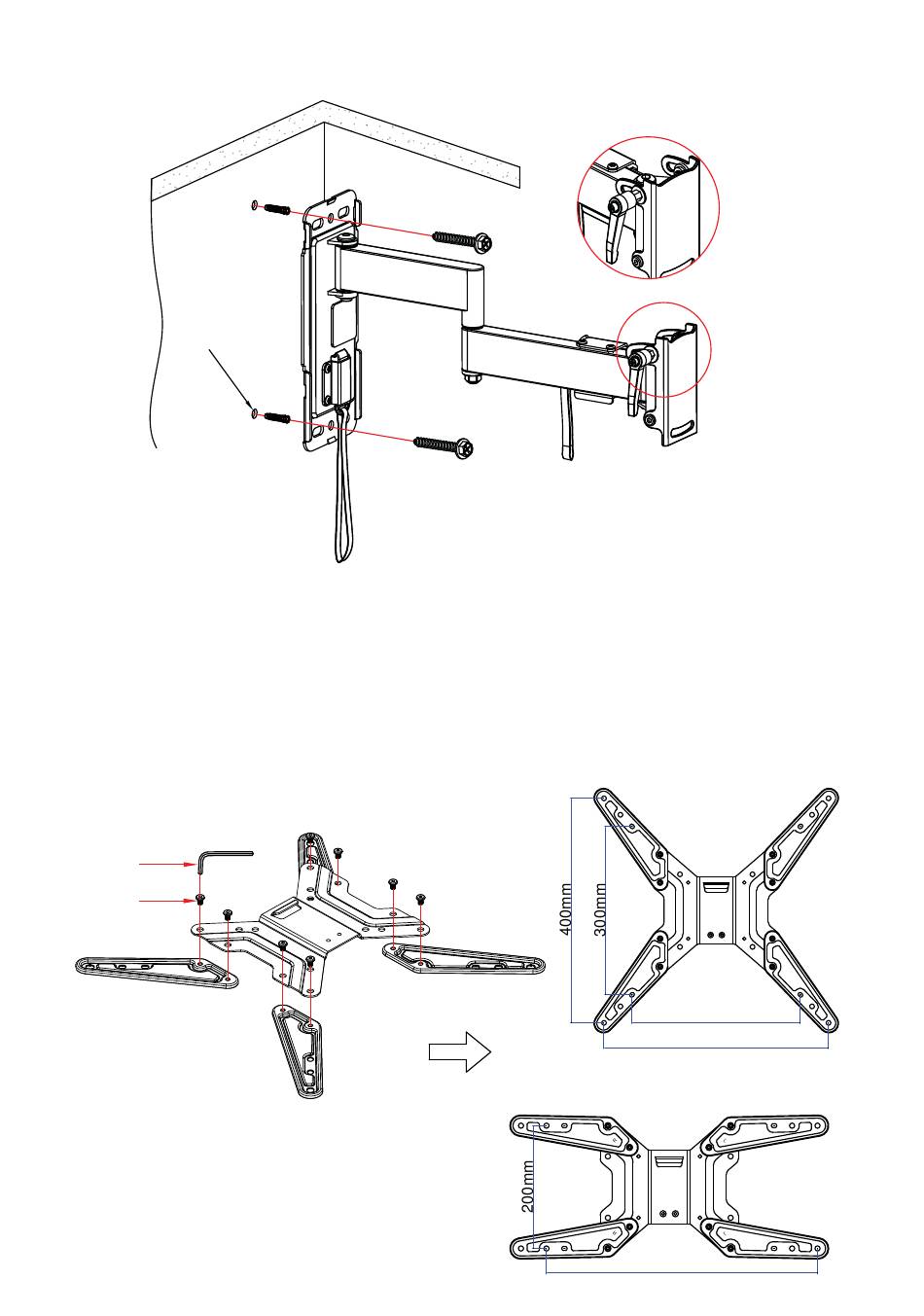

For standard wall mounting.
3/8"
4
Per the hole pattern on the back panel of TV, choose suitable unit.
1. VESA within 200x200: connect TV plate(A2) to the TV directly.
2. VESA within 400x400: connect Extended arm (B) and (C) on the TV
plate(A2) by using screws (J) and then attach to the back panel of TV.
