Omnimount CI40FML User Manual

Rv mount
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

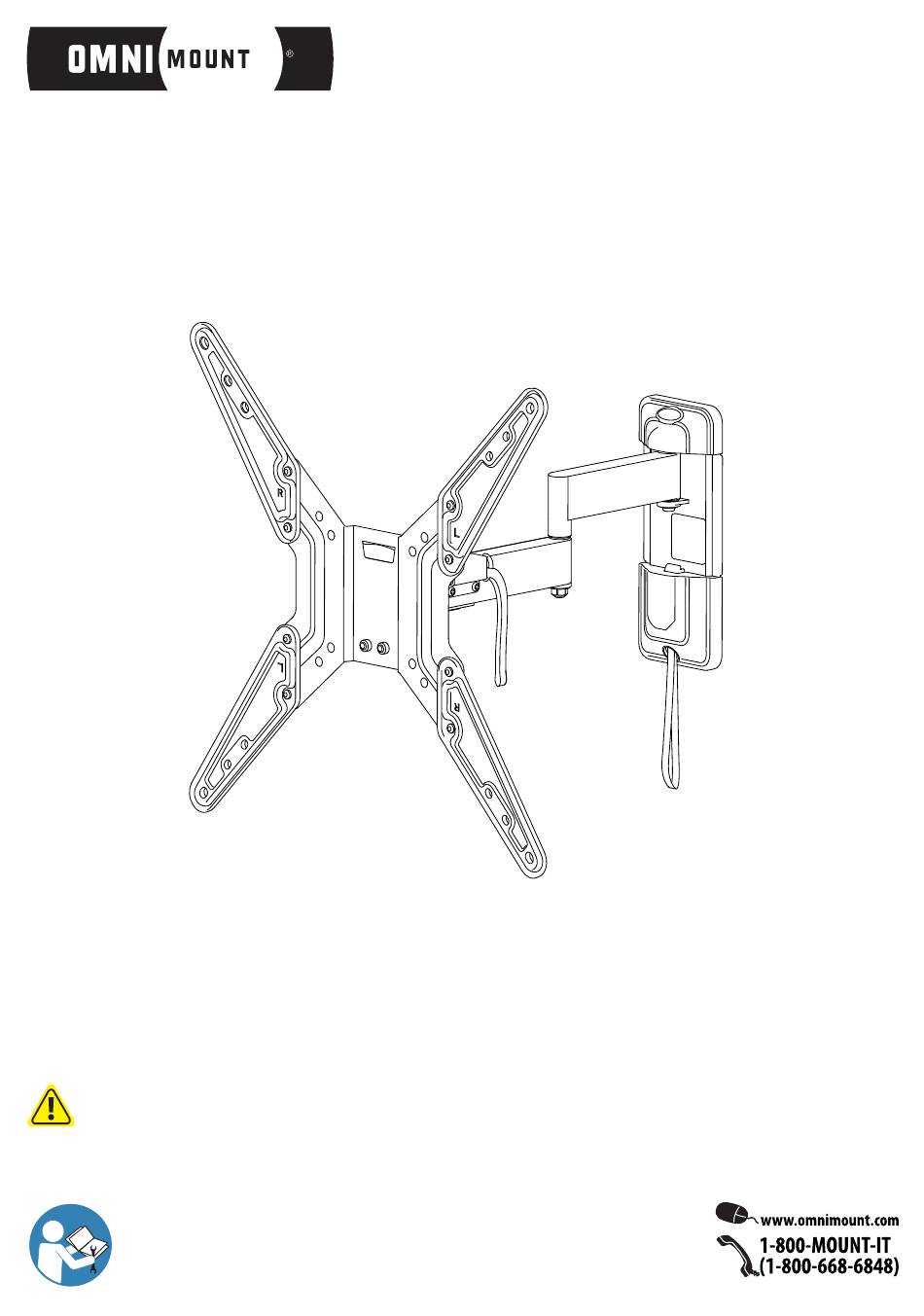

User's Guide
RV Mount
CI40FML
Fits TV's up to 400mm x 400mm VESA pattern
Max Weight Capacity: 40LBS (18KG).
CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!
www.omnimount.com
888-61-246-G-00 rev. B • 07/16
1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the CI40FML and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omnimount CI40FML

Summary of Contents for Omnimount CI40FML

  • Page 1 User's Guide RV Mount CI40FML Fits TV's up to 400mm x 400mm VESA pattern Max Weight Capacity: 40LBS (18KG). CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! www.omnimount.com 888-61-246-G-00 rev. B • 07/16...
  • Page 2 CAUTION! This mount is not intended for use on brick, concrete or concrete block. It is up to the installer to verify the safety of the installation method or hardware that is not provided by OmniMount. The size and weight of your television must be properly supported. The surface must be capable of supporting fi ve times the weight of the television plus the mount.

  • Page 3: Part List

    Part list C-Extended arm(L) B-Extended arm(R) A-Wall plate unit 2pcs 2pcs Hardware list H--log bolt L-4mm Alley key J--M6X8 Bolt 2pcs 8pcs a--M4X15 Bolt b--M5X15 Bolt c--M6X15 Bolt d--M8X15 Bolt e--M4X30 Bolt f--M5X30 Bolt 4pcs 4pcs 4pcs 4pcs 4pcs 4pcs g--M6X30 Bolt h--M8X30 Bolt i--M6/M8X10 Spacer...
  • Page 4 Remove the bolts (K) with Allen key (L) to separate wall plate unit (A) from the arm assembly. (Figure 1) Arm assembly A Wall plate unit A2 TV plate Figure 1 Take the plastic cover off the wall plate. (Figure 2) Figure 2 4 of 9 888-61-246-G-00 rev.
  • Page 5 For standard wall mounting. 3/8" Figure 3 Per the hole pattern on the back panel of TV, choose suitable unit. 1. VESA within 200x200: connect TV plate(A2) to the TV directly. 2. VESA within 400x400: connect Extended arm (B) and (C) on the TV plate(A2) by using screws (J) and then attach to the back panel of TV.
  • Page 6 Attach TV plate (A2) to the back of TV, choose corresponding bolt, washer and spacer. If the back of TV is not fl at, or the bolts used to assemble TV are too long, or there is interference between TV bracket and cable inlets, we highly recommend you to use spacers.
  • Page 7 Hang TV / TV plate assembly on arm assembly and reinsert screws (K) removed in step 1. (Figure 7) Two people are recommended to hold and position the TV. Figure 7 Lock TV in place by pushing back to wall. Listen for audible click. Do not move the TV while the vehicle is moving.
  • Page 8 Adjust the tilting angle with spring handle. Hold the TV and adjust it to your desired position and tighten the handle. (Figure 9). Pull Handle Figure 9 8 of 9 888-61-246-G-00 rev. B • 07/16...
  • Page 9 5 years from the date of sale to the original purchaser. To obtain warranty service, return the defective product or component to the store where it was purchased or to another retail store that sells OmniMount  products of the same type. The retail store shall then, according to its preference, repair the product, refer you to an independent repair facility, replace the product, or refund the purchase price less the amount directly a ributable to your prior usage of the product.
