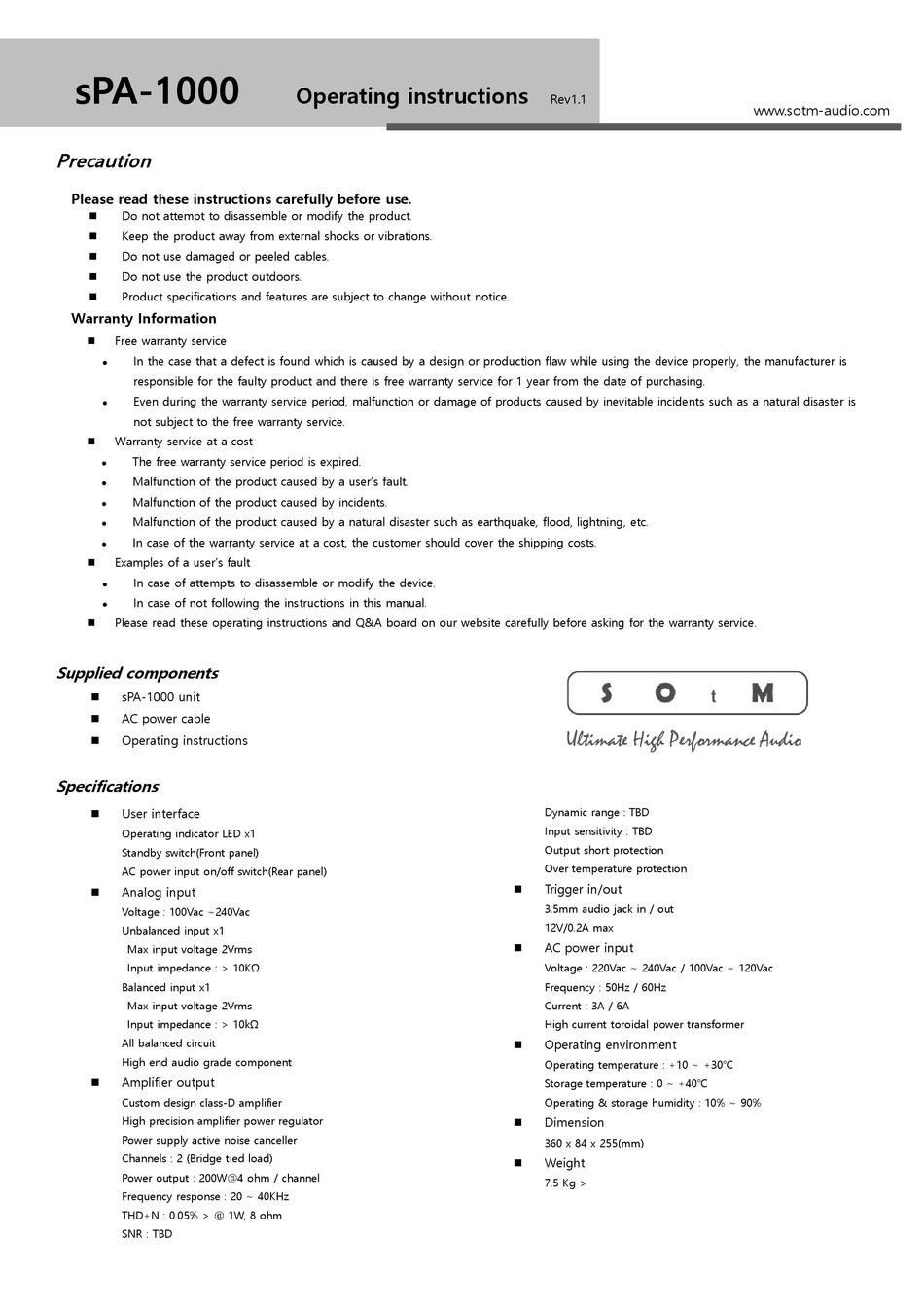

SOtM sPA-1000 Operating Instructions

sPA-1000

Precaution

Please read these instructions carefully before use.
Do not attempt to disassemble or modify the product.
◼
Keep the product away from external shocks or vibrations.
◼
Do not use damaged or peeled cables.
◼
Do not use the product outdoors.
◼
Product specifications and features are subject to change without notice.
◼

Warranty Information

Free warranty service
◼
In the case that a defect is found which is caused by a design or production flaw while using the device properly, the manufacturer is
⚫
responsible for the faulty product and there is free warranty service for 1 year from the date of purchasing.
Even during the warranty service period, malfunction or damage of products caused by inevitable incidents such as a natural disaster is
⚫
not subject to the free warranty service.
Warranty service at a cost
◼
The free warranty service period is expired.
⚫
Malfunction of the product caused by a user's fault.
⚫
Malfunction of the product caused by incidents.
⚫
Malfunction of the product caused by a natural disaster such as earthquake, flood, lightning, etc.
⚫
In case of the warranty service at a cost, the customer should cover the shipping costs.
⚫
Examples of a user's fault
◼
In case of attempts to disassemble or modify the device.
⚫
In case of not following the instructions in this manual.
⚫
Please read these operating instructions and Q&A board on our website carefully before asking for the warranty service.
◼

Supplied components

sPA-1000 unit
◼
AC power cable
◼
Operating instructions
◼

Specifications

User interface
◼
Operating indicator LED x1
Standby switch(Front panel)
AC power input on/off switch(Rear panel)
Analog input
◼
Voltage : 100Vac ~240Vac
Unbalanced input x1
Max input voltage 2Vrms
Input impedance : > 10KΩ
Balanced input x1
Max input voltage 2Vrms
Input impedance : > 10kΩ
All balanced circuit
High end audio grade component
Amplifier output
◼
Custom design class-D amplifier
High precision amplifier power regulator
Power supply active noise canceller
Channels : 2 (Bridge tied load)
Power output : 200W@4 ohm / channel
Frequency response : 20 ~ 40KHz
THD+N : 0.05% > @ 1W, 8 ohm
SNR : TBD
Operating instructions
Rev1.1
Ultimate High Performance Audio
Dynamic range : TBD
Input sensitivity : TBD
Output short protection
Over temperature protection
Trigger in/out
◼
3.5mm audio jack in / out
12V/0.2A max
AC power input
◼
Voltage : 220Vac ~ 240Vac / 100Vac ~ 120Vac
Frequency : 50Hz / 60Hz
Current : 3A / 6A
High current toroidal power transformer
Operating environment
◼
Operating temperature : +10 ~ +30℃
Storage temperature : 0 ~ +40℃
Operating & storage humidity : 10% ~ 90%
Dimension
◼
360 x 84 x 255(mm)
Weight
◼
7.5 Kg >
