- Page 1 DATAPRO 500 OPERATOR GUIDE - daily operation and routine maintenance - www.betalasermike.com Manual Part Number: MAN/EN5400-0001 • English • Revision B • © Copyright Jun 2010...
-
Page 2: Table Of Contents
DataPro 500 Operator Guide Proprietary Statement Contents Proprietary Statement................3 European Commission Requirements ............. 4 Declaration of Conformity ................. 5 General Safety Information ............... 6 Intended Use ....................6 Laser Safety Precautions ................6 Labels and Safety Features............... 7 Introduction ....................8 Operation .................... -
Page 3: Proprietary Statement
(stored on-site) and one printout is permitted. If this document is supplied in printed form, no part of this document may be reproduced or scanned without the prior written consent of Beta LaserMike. This document may not be distributed or circulated to third parties. -
Page 4: European Commission Requirements
Heavy Industrial environment (EN50082-2). Beta LaserMike also recommends that any cables not supplied by Beta LaserMike, but used for powering Beta LaserMike equipment, be built using good EMC practices (i.e. cables with braided shield, and connectors with 360° termination of the braid to a metal/metalised shell connector at both ends). -
Page 5: Declaration Of Conformity
DataPro 500 Operator Guide DataPro 500 Operator Guide Declaration of Conformity Declaration of Conformity Declaration of Conformity Part No. MAN/EN5400-0001 Part No. MAN/EN5400-0001 Page 5 of 14 Page 5 of 14 Revision B (Jun 2010) Revision B (Jun 2010) -
Page 6: General Safety Information
DataPro 500 Operator Guide / General Safety Information General Safety Information • Under NO circumstances should the earth safety connections be broken – internal damage to sensitive electronic components may occur and at worst electrocution to personnel may result. • This equipment must be earthed/grounded. -
Page 7: Labels And Safety Features
This section acquaints you with the advisory and identification labels on the instrument and the safety features incorporated into the design of the instrument. The following figure shows the advisory and identification labels on the DataPro 500. Part No. MAN/EN5400-0001... -
Page 8: Introduction

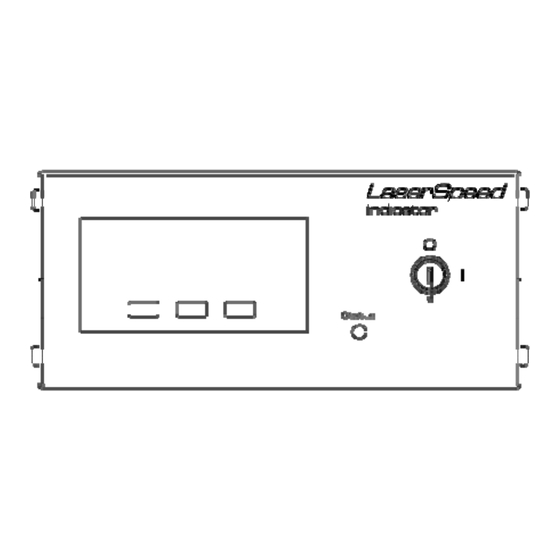

Operation Key Switch The DataPro 500 front panel key switch provides laser power and beam shutter interlock protection. Neither the LaserSpeed’s laser nor the beam shutter will be activated unless this key is turned to the “I” position. If using a remote interlock, this key switch works in conjunction with the shutter interlock pins on the rear panel. -
Page 9: Programmable Indicator
Operation Programmable Indicator You can easily configure the DataPro 500 via the pushbuttons on the front panel monitor. Depending on the application, the monitor is configured with different settings. This section describes the general operation of the indicator and how to change settings. - Page 10 DataPro 500 Operator Guide Operation Key Buttons for Users Parameter Description Notes Enter programming mode to If the unit has been locked out, enter setpoints* only the setpoints will be accessible Toggles between length and speed** Resets the length display and...
- Page 11 DataPro 500 Operator Guide Operation For example: To set SP-1 to 123.456 1) Press the PAR key once 2) Press the SEL key to move the digit selection to the 1000ths position 3) Press RST key 6 times to increment the last digit to 6...
-
Page 12: Fuses
Fuses Fuses The DataPro 500’s AC power entry module is shipped with two 1.5A 250V Type T or Slo fuses, which fuse both the hot and neutral power lines. The fuse holder can hold two ¼” x 1” or two 5mm x 20mm fuses. If a fuse is blown, it should be replaced with a fuse of the same type. -
Page 13: Troubleshooting
T or Slo fuses. The fuse holder can hold two ¼”x 1” or two 5mm x 20mm fuses. Disconnect all cables before powering the DataPro 500 back on. Reconnect cables one at a time to determine the source of the problem. Display reads zero... -
Page 14: Servicing And Returning Your Equipment
DataPro 500 Operator Guide Servicing and Returning Your Equipment Servicing and Returning Your Equipment Your instrument was carefully inspected electrically and mechanically prior to shipment. It should be free of surface mars and scratches, and it should be in perfect working order upon receipt.
