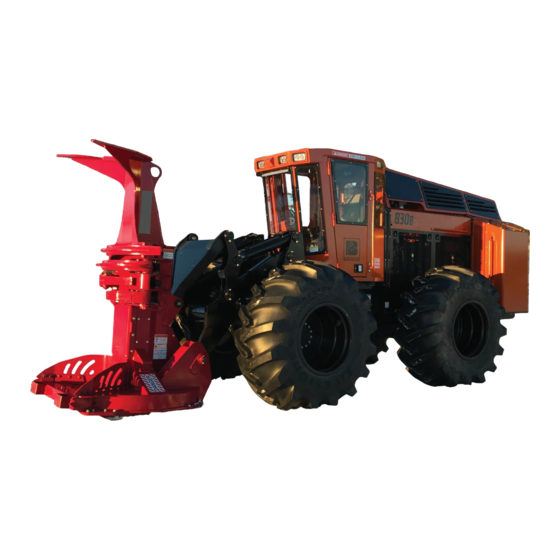

Barko 830B Operator's Manual

Wheeled feller buncher (wfb)
Hide thumbs Also See for 830B:
Table of Contents

Advertisement

Quick Links

Download this manual
®
MANUAL P/N
OPERATOR'S MANUAL
800-00477
REVISION
0
DATE
WHEELED FELLER BUNCHER (WFB)
06/10/2019
830B
Serial Number Range:
11983025001 thru
Machine Serial Number:
NOTE:
This Operator's Manual includes precautions and procedures for safely operating your BARKO machine. This manual includes
limited service, repair and parts information. Separate BARKO Parts and Service Manuals are available from your BARKO
dealer or from BARKO directly.
Engine, attachment and other component information may be limited in this manual. See separate manufacturer manual(s)
which accompanies this BARKO machine from the factory.
The information and illustrations in this manual have been approved as accurate at the time of printing. However, this manual
may contain information on options not present on your loader. BARKO Hydraulics, LLC reserves the right to make changes
and improvements in its product at any time without notice or obligation.
®
1 Banks Avenue • Superior • WI • 54880
Phone: 800-544-6532 • 715-395-6700
Fax: 800-772-2448 • 715-392-9348
Web: www.barko.com Email: Support@barko.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 830B and is the answer not in the manual?

Questions and answers

Related Manuals for Barko 830B

Summary of Contents for Barko 830B

  • Page 1 The information and illustrations in this manual have been approved as accurate at the time of printing. However, this manual may contain information on options not present on your loader. BARKO Hydraulics, LLC reserves the right to make changes and improvements in its product at any time without notice or obligation.
  • Page 2 TORQUE SPECS- UNC & UNF BOLTS (HHCS) 13-22 TORQUE SPECS- METRIC BOLTS (HHCS) 13-23 TORQUE SPECS- UNC & UNF BOLTS (SHCS) 13-23 TORQUE SPECS- METRIC BOLTS (SHCS) 13-24 NEW MACHINE BREAK-IN PROCEDURE ® SUPERIOR • WI • USA • www.barko.com...
  • Page 3 DECAL- BARKO LOGO 12.5”X12.7” 539-01268 18-10 DECAL- DANGER KEEP BACK DEBRIS 539-01255 CH-26 HVAC 26-1 26-3 GENERAL HVAC SYSTEM 26-3 AIR CONDITIONING (A/C) SYSTEM 26-4 HVAC SERVICE SCHEDULE 26-5 HVAC SERVICING 26-5 HEATER-A/C UNDER-SEAT UNIT ® SUPERIOR • WI • USA • www.barko.com...

  • Page 4: Table Of Contents

    ICONS & DISPLAYS ON START-UP SCREEN 40-11 LEFT JOYSTICK CONFIGURATION SCREEN 40-13 RIGHT JOYSTICK CONFIGURATION SCREEN 40-15 MAIN DISPLAY SCREEN 40-19 START UP SCREEN - 830B FB 40-21 HYDRAULIC SYSTEM DISPLAY SCREEN 40-23 ATTACHMENT CONTROL SCREEN 40-26 WARNING SCREEN 40-27...
  • Page 5 GENERAL INSTRUCTIONS 65-10 PARTS ILLUSTRATIONS 65-12 HYDRAULIC PORT LOCATIONS 65-13 HYDRAULIC ADJUSTMENTS 65-14 HYDRAULIC BRAKE 65-14 INTRODUCTION 65-15 CROSS-SECTION VIEW 65-17 WHEELS & TIRES 65-17 INSPECTION & SERVICE 65-17 WHEEL LUG TORQUE ® SUPERIOR • WI • USA • www.barko.com...
  • Page 6 ® SUPERIOR • WI • USA • www.barko.com...
  • Page 7 WELDING SAFETY 10-14 FIRE PREVENTION 10-16 BARKO DEALER NET 10-16 PARTS TAB 10-16 MANUALS TAB 10-17 SERVICE TAB 10-18 ABBREVIATIONS OPERATOR ® 800-10009 1 BANKS AVE • SUPERIOR • WI • USA • www.barko.com (P) 800-544-6532 • (F) 800-772-2448 • Support@barko.com...
  • Page 8 THIS PAGE LEFT INTENTIONALLY BLANK...
  • Page 9 Remember, use only... * GENUINE BARKO PARTS * NOTE This Operator’s Manual has limited parts information. A BARKO Parts Manual will have detailed parts lists and illustrations that may assist in performing routine maintenance. A BARKO Service Manual will have detailed service and maintenance procedures which will assist servicing your BARKO machine or attachment.
  • Page 10 Accordingly, you are advised that the pressure settings of this machine are limited to the factory approved settings. Pressures in excess of these settings render each and all Barko warranties null and void and constitute an obvious misuse and abuse of our product.
  • Page 11 REFER TO A BARKO SERVICE MANUAL for detailed service schedules and procedures. All parts for your BARKO machine or attachment may be ordered from your nearest BARKO Dealer. If you are not certain of the dealer's location check our website or contact BARKO Customer Service for assistance: WEB: www.barko.com/dealer-locator...

  • Page 12: Introduction

    The products integrity, stability and it's ability to perform safely could be at serious risk! As owner / operator of this machine, BARKO advises you that NO CHANGES ARE TO BE MADE TO ITS PRODUCTS INCLUDING DELETIONS OR ADDITIONS OTHER THAN A BARKO APPROVED OPTION.

  • Page 13: Know Your Barko

    Don't assume that because you know the control functions of other similar machinery, that you can run and/or service the BARKO machine. All machines differ in some ways, and these differences must be noted and acknowledged. Read this manual thoroughly and understand all safety, operating, and servicing procedures before using the machine.

  • Page 14: Safety Summary

    Consult supervisor to explain any unclear instructions Ÿ and warnings. Always maintain 3-point contact with handles and Contact Barko to replace lost manuals. Ÿ steps when mounting or dismounting. Never jump on or off machine. Do not rush. Walk, do not run.
  • Page 15 SAFETY SUMMARY Updated (continued...) 07/12/2018 WARNING WARNING Combustible and flammable fluids can cause Improper machine transport can cause death, severe death or severe injury. injury or property damage. Do not smoke or permit open flames near fuels or Ÿ hydraulic fluids. Before transporting: Do not fill the tanks to capacity, allow room for fluid Lower and secure boom/attachment to truck/trailer bed.
  • Page 16 SAFETY SUMMARY Updated (continued...) 07/12/2018 CAUTION WARNING Transparent material such as safety glass must Hot and pressurized fluid can cause severe burns. be replaced when it is cracked or broken, or Let system cool before removing any caps, then remove when vision is obscured due to scratches.
  • Page 17 SAFETY SUMMARY Updated (continued...) 07/12/2018 DANGER WARNING Falling arms or load will cause death or severe injury. Set parking brake before servicing machine. Stay clear if arms or load are not grounded. Clear all persons from area of operation and machine movement. WARNING Never raise lifting arms or loads over the heads of other persons.
  • Page 18 WARNING Any unauthorized welding, alterations, additions or Older air conditioning equipment may contain R-12, a modifications made to Barko machinery will void substance which harms public health and warranty. This machine was designed to do a specific job environment by destroying ozone in the upper and alterations could result in death, severe injury or atmosphere.

  • Page 19: Welding Safety

    This machine was designed to do a specific job and alterations could result in death, severe injury or property damage. If BARKO-Authorized welding must be done, refer to service manual for welding procedure. If procedure is not followed electrical and structural damage may occur.

  • Page 20: Fire Prevention

    Do not weld on any structural member unless specifically WARNING authorized by Barko Hydraulics. Any unauthorized welding or welding procedures will void the warranty, and may Inspect the machine daily for flammable debris, cause structural damage.
  • Page 21 Updated FIRE PREVENTION (continued...) 07/12/2018 FIRE EXTINGUISHER Make sure you have the proper fire extinguisher that is labeled A (wood, trash), B (gas, grease, oil, paint) and C (electrical). FIRE EXTINGUISHER P-A-S-S IN CASE OF A FIRE REMEMBER Ÿ PULL the pin Ÿ...

  • Page 22: Barko Dealer Net

    Contact BARKO Machine Sales or your Barko Sales Representative for more information and to access BARKO Dealer Net. PARTS View Barko’s Parts Policy and Barko Dealer Net parts ordering instructions • Download the latest Clearance Parts List and machine Recommenced Stocking Lists •...
  • Page 23 BARKO DEALER NET (continued...) 07/12/2018 SERVICE Access the latest Service Advisories and Bulletins • Process and track Warranty Claims • *The screen shots showing BARKO Dealer Net may change over time. 10-17 OPERATOR’S SUPERIOR • WI • USA • www.barko.com...

  • Page 24: Abbreviations

    Updated ABBREVIATIONS 07/12/2018 The following table is a list of BARKO Engineering Standard Abbreviations. These abbreviations are used throughout BARKO Operator’s, Parts and Service Manuals as well as BARKO Advisories and Bulletins. Air Conditioning Female O-Ring Face Seal Lower Reference...
  • Page 25 13-23 TORQUE SPECS- UNC & UNF BOLTS (SHCS) 13-23 TORQUE SPECS- METRIC BOLTS (SHCS) 13-24 NEW MACHINE BREAK-IN PROCEDURE OPERATOR ® 800-13016 1 BANKS AVE • SUPERIOR • WI • USA • www.barko.com (P) 800-544-6532 • (F) 800-772-2448 • Support@barko.com...
  • Page 26 13-25 OPERATION 13-25 MACHINE PRE-START UP 13-26 MACHINE START UP 13-26 NORMAL STARTING PROCEDURE 13-27 COLD WEATHER STARTING PROCEDURE 13-27 JUMP STARTING (12V SYSTEM) 13-28 MACHINE SHUT-DOWN 13-29 OPERATING & LOADING TECHNIQUES 13-31 CONTROL FUNCTIONS 13-32 JOYSTICK CONTROL FUNCTIONS 13-32 JOYSTICK BUTTONS- IWT MULCHER 13-33 JOYSTICK BUTTONS- WFB FELLER BUNCHER...
  • Page 28 Updated MODEL DESCRIPTION- WFB 06/11/2019 1 WHEELED FELLER BUNCHER (WFB) MODEL & SPECIFICATION 830B (shown w/o attachment) 830B Specs: w/std 28L-26 20-ply Tire Package Ÿ w/o Attachment Ÿ Weight (w/o ATT): 33,250 lbs (15,080 kg) Ÿ Wheel Base: 9’ (274 cm) Ÿ...
  • Page 29 Updated MODEL DESCRIPTION- WFB 06/11/2019 FUEL OPERATOR’S CAB 830B RESERVOIR (chapter 40) (chapter 70) LIFTING ARMS (chapter 30) ATTACHMENT (chapter 35) POWER PACKAGE (chapter 60) SHROUDING (chapter 50) DRIVETRAIN (chapter 65) COOLER AY FRAME AY (chapter 60) HYDRAULIC RESERVOIR (chapter 47) (chapter 70) ®...
  • Page 30 ELEMENT (FOR HIGH PSI ELEC) Hyd Drain Filter 565-01253 FILTER ELEMENT 50AT-10B Drive Pump Charge 565-00109 ELEMENT-FILTER,CHG. PRESS FILT Att Pump Charge 565-01663 FILTER-ELEMENT FOR 560-02751 Att Pump Super Charge 565-01656 ELEMENT-10 MICRN FOR 565-01655 13-6 OPERATOR’S SUPERIOR • WI • USA • www.barko.com...
  • Page 31 535-07329 BELT, V- RIBBED 535-20987 Serpentine Belt V BELT A GROOVE 48" EFF LENGTH 535-06851 A/C Belt FILTER- DEF TANK SUCTION Def Tank 535-07609 FILTER- DEF SUPPLY MODULE Def Tank 535-20943 13-7 OPERATOR’S SUPERIOR • WI • USA • www.barko.com...
  • Page 32 569-00059 FILTER 10Q DOUBLE RF2 NEW Return Filter 565-01594 O-RING- BOWL Return Filter, O-Ring 552-00246 SENDER HYD OIL 15" Oil Level Sender 548-05270 SENSOR- TEMP IQAN 06MB Oil Temp Sender 548-04035 13-8 OPERATOR’S SUPERIOR • WI • USA • www.barko.com...
  • Page 33 Handle fuel carefully. Do not smoke while filling fuel tank Under no circumstances should any modifications be or working near fuel. Refer to Fluid Specifications made to Barko machinery without factory whenever replacing oils, fluids, or filling fuel tank. authorization. Any modification may void the warranty.
  • Page 34 The following maintenance schedule must be followed to ensure safe operation and long service life of your BARKO machine or attachment. The listed maintenance intervals are for normal use applications. Maintenance intervals may need to be shortened to account for extreme operating conditions.
  • Page 35 MAINTENANCE SCHEDULE Updated (continued...) 06/11/2019 INTERVAL LOCATION INSPECTION & NOTES / / SYSTEM SERVICE REQUIRED INSTRUCTIONS Air Conditioner- run Manifold Gauge Check- performed only by qualified check a/c refrigerant HVAC service personnel HVAC Under Seat A/C Pleated Filter- replace Under Seat A/C Mesh Filter- replace Grease Bushings, Pins and Shims-...
  • Page 36 A/C Condenser- clean Radiator & Hydraulic Oil check for leaks, clean if Cooler- inspect necessary see Section 4 in Cummins manual, BARKO Engine- perform "100 hour or recommends performing the 1 month" maintenance Cummins 250 hour procedures maintenance at 100 hours for...
  • Page 37 MAINTENANCE SCHEDULE Updated (continued...) 06/11/2019 INTERVAL LOCATION INSPECTION & NOTES / / SYSTEM SERVICE REQUIRED INSTRUCTIONS Axle Wheel Retainer Cap check torque after both initial Screws- check torque 8 & 50 hours of service Wheel Lug Nuts- check check torque after initial 8 hrs torque and every 100 hrs thereafter Transmission- check fluid...

  • Page 38: Hydraulic Oil

    Updated LUBRICATION & FLUID SPECIFICATIONS 06/11/2019 HYDRAULIC OIL The following lists some features to look for in an oil. The hydraulic oil for the machine should feature: Rust resistant additives to prevent rust formation from moisture condensation. Ÿ Anti-foaming agents to break up air bubbles and prevent "foaming" that may cause Ÿ...
  • Page 39 Contact your BARKO dealer or BARKO Customer Service. LUBRICANT STORAGE Your BARKO machine or attachment can operate at top efficiency only if clean lubricants are used. Use a clean container to handle all lubricants. Store them in an area protected from dust, moisture, and other contaminants.
  • Page 40 Updated LUBRICATION & FLUID SPECS (continued...) 06/11/2019 DEF (DIESEL EXHAUST FLUID) DEF is a critical element of the Tier 4 Final aftertreatment system. DEF is used as a consumable in selective catalytic reduction (SCR) in order to lower NOx concentration in the diesel exhaust emissions from diesel engines.
  • Page 41 Follow the Test step of this procedure. NOTICE To assist in preventing Diesel Exhaust Fluid from deteriorating when stored in your BARKO machine DEF tank, locate and plug the tanks venting to seal the tank exposure to the atmosphere. DEF HANDLING DEF is not harmful to handle.
  • Page 42 FLUID & LUBRICATION POINTS- WFB Updated 06/11/2019 1. ENGINE COMPARTMENT 3. LIFTING ARMS A) Engine Oil (chapter 60) (see next page & B) DEF Fluid (chapter 60) chapter 30) C) Engine Coolant (chapter 60) D) Pump & Drive Ay (chapter 60) 8.
  • Page 43 All grease points need to be greased daily. Not all grease points are shown on these illustrations. Other grease and lubrication locations are discussed and illustrated within chapters throughout BARKO Operator’s, Parts and Service Manuals as well as component manufacturer manuals supplied with your BARKO machine or attachment. 1. Engine Compartment (A-C) See separate Cummins Operation and Service Manual for diesel engine service.
  • Page 44 Updated GENERAL TORQUE SPECIFICATIONS 06/11/2019 This BARKO technical standard lists torque specifications for commonly used threaded fasteners. This standard is to be followed by all business functions of BARKO Hydraulics, LLC unless otherwise noted. ACRONYMS / DEFINITIONS Unified Thread Standard Ÿ...
  • Page 45 Updated GENERAL TORQUE SPECS (continued...) 06/11/2019 NOTICE DRY & LUBRICATED A dry condition bolt or nut is considered a fastener that is free of rust or other Ÿ debris and doesn't have any external lubrication added by the end user. A lubricated bolt or nut is considered a fastener that is free of rust or other Ÿ...
  • Page 46 Updated GENERAL TORQUE SPECS (continued...) 06/11/2019 ISO METRIC HHCS BOLT TORQUE (COARSE THREAD) Class 8.8 Class 10.9 Class 12.9 Dia (mm) Pitch Lubricated Lubricated Lubricated ft-lb ft-lb ft-lb ft-lb ft-lb ft-lb 0.70 0.80 1.00 1.00 1.25 1.50 1.75 2.00 2.00 2.50 2.50 2.50...
  • Page 47 2.00 1071 1315 NOTICE Some components on your loader or attachment may require different torques than what is listed from these tables. Special torque specifications are listed throughout the chapters of BARKO Operation, Service and Parts Manuals. ® 13-23 OPERATOR’S...
  • Page 48 “Daily” or “8-Hour” intervals. NOTICE Follow steps in “Machine Pre-Start Up” section of this manual. This section outlines steps to safe operating and a checklist to make sure you and your BARKO machine are ready to run. NOTICE In BARKO machines equipped with a Cummins diesel engine, the engine DOES NOT require a break-in procedure.
  • Page 49 If these conditions exist, the machine MUST be taken out of service until repairs are made. On BARKO ML machines, DISENGAGE Servo Controls. See Chapter 40 Cab for the switch(s) or lever(s) that activates or deactivates the servo control system.
  • Page 50 NOTICE A Cummins Operation & Service Manual has extensive information on the diesel engine in your BARKO machine. Section 1 of that manual has operating instructions not covered in this manual. Read that section carefully. This Cummins manual was supplied with your BARKO machine, contact your BARKO dealer if it’s missing.
  • Page 51 MACHINE START UP Updated (continued...) 06/11/2019 1.2 Cold Weather Starting Procedure should be operated slowly at reduced loading to continue warming hydraulic system In cold weather, special precautions must be gradually until normal operating temperatures taken to ensure that hydraulic oil supply is within the hydraulic system are reached.
  • Page 52 Fig-1 2 EMERGENCY STOP on BARKO 240, 260 & 270 (see Fig-2) If an emergency situation arises, it may necessary to push the EMERGENCY STOP BUTTON. This will kill the engine and the electrical system power. This button is located adjacent to the in-dash screen.
  • Page 53 Switch and the Servo Controls Do not set up the work area: learn the Cold Weather Starting Procedure Ÿ Ÿ near edges of a ditch know how to safely Jump Start your BARKO Ÿ Ÿ in slide areas machine Ÿ...
  • Page 54 OPERATING & LOADING Updated (continued...) 06/11/2019 3 GETTING THE FEEL OF YOUR NEW BARKO by holding a control lever in far forward or backward position. Before starting the first job with a new machine, it is suggested that the “now trained operator”...
  • Page 55 All operational functions of this BARKO machine are controlled with Joysticks and/or Foot Pedals. The BARKO IWT and WFB have optional Joystick or Foot Pedal travel functions. The more travel applied to the joystick and foot pedal movements, the faster the function of the controlled machine component.
  • Page 56 CONTROL FUNCTIONS- IWT / WFB Updated (continued...) 06/11/2019 1.1 IWT & WFB Joystick Controls NOTICE Controls shown are pre-set from factory. Configurations may be modified with machine Md4 Display. See Chapter 40 Cab for MD4 Display instructions. 1.1.1 Joystick Movement Controls TRAVEL FWD LOWER (OPTION)
  • Page 57 CONTROL FUNCTIONS- IWT / WFB Updated (continued...) 06/11/2019 1.1.3 WFB FELLER BUNCHER Button Configuration GRAB GRAB ACCUM ACCUM OPEN CLOSE CLOSE OPEN LOW LOCK ALL ARMS SPARE CAMERA ON / OFF OPEN FRONT AXLE HORN DIFF LOCK (FRONT) (FRONT) LEFT HAND RIGHT HAND 1.1.3 IWT &...
  • Page 58 1 KNOW YOUR LAWS AND LIMITS 2 PREPARE FOR TRANSPORTING Learn Your Route, know... Follow these steps to prepare your BARKO WFB overhead clearances for over the road transportation. Ÿ road and bridge weight limits Carefully drive the machine up on the trailer.
  • Page 59 MACHINE STORAGE Updated 06/11/2019 BARKO recommends the following storage steps for all machines not being used for more than 2 MONTHS under normal conditions, either at the dealer's location or the customer's site. NOTICE Machines stored in extreme conditions (cold, wet, humid, and/or salty coastal environments) may require these steps even if stored for shorter periods of time.
  • Page 60 THIS PAGE LEFT INTENTIONALLY BLANK...
  • Page 61 539-01242 18-10 DECAL- “937B” BLACK 539-01243 18-10 DECAL- BARKO LOGO 12.5”X12.7” 539-01268 18-10 DECAL- DANGER KEEP BACK DEBRIS 539-01255 OPERATOR ® 800-18008 1 BANKS AVE • SUPERIOR • WI • USA • www.barko.com (P) 800-544-6532 • (F) 800-772-2448 • Support@barko.com...
  • Page 62 06/11/2019 1 DECALS & DECAL PLACEMENT ON BARKO IWT FB Models. Observe and obey all decals on your BARKO machine. These decals are intended to make the operator, bystanders and/or service personal aware of: machine & component warnings & hazzards machine &...

  • Page 63: Decals- Iwt

    DECALS- IWT Updated (continued...) 06/11/2019 3. (Fig-3) 539-00789 DECAL- CENTRAL LUBE SYSTEM (LH INSIDE OF THE TIRES) Fig-3 4. (Fig-4) 539-00883 DECAL- IMPROPER ELECTRICAL CONNECTIONS (LOCATED IN ENGINE AREA MIDDLE) Fig-4 5. (Fig-5) 539-00977 DECAL- HYDRAULIC OIL LEVEL HI/LO (LOCATED ON FRONT OF THE HYDRAULIC TANK RH SIDE) Fig-5...

  • Page 64: Decal- Hydraulic Oil Lever

    DECALS- IWT Updated (continued...) 06/11/2019 6. (Fig-6) 539-01247 DECAL- HYDRAULIC OIL CAUTION (LOCATED ON RH SIDE IN THE ENGINE COMPARTMENT) Fig-6 7. (Fig-7) 539-01248 DECAL- CRUSH SPINNING WARNING (LOCATED ON THE TOP OF THE STEPS LH & RH) Fig-7 ® 18-4 OPERATOR’S...

  • Page 65: Decal- Falling Trans Warning

    DECALS- IWT Updated (continued...) 06/11/2019 8. (Fig-8) 539-01249 DECAL- FALLING TRANS WARNING Fig-8 9. (Fig-9) 539-01250 DECAL- BULKHEAD LOCATION (LOCATED BETWEEN THE LIFTING ARMS) Fig-9 10. (Fig-10) 539-01251 DECAL- DIESEL CAUTION WARNING (OPEN THE FUEL TANK LID. LOCATED NEXT TO THE FILLER NECK) Fig-10 ®...

  • Page 66: Decal- Hot Exhaust Warning

    DECALS- IWT Updated (continued...) 06/11/2019 11. (Fig-11) 539-01252 DECAL- HOT EXHAUST WARNING Fig-11 12. (Fig-12) 539-01253 DECAL- HYDRAULIC ONLY CAUTION (MOUNTED ON THE HYDRAULIC ACCESS LID RH SIDE) Fig-12 13. (Fig-13) DECAL- HOT AND 539-01254 PRESSURE WARNING (ACCESSABLE UNDER THE ACCESS PLATE ON THE LH TOP OF THE SHROUD) Fig-13...

  • Page 67: Decal- Fire Hazard/ Personal Injury

    DECALS- IWT Updated (continued...) 06/11/2019 14. (Fig-14) 539-01369 DECAL- FIRE HAZARD/ PERSONAL INJURY (RH SIDE AS SITTING ON THE OPERATORS SEAT) Fig-14 15. (Fig-15) 539-01372 DECAL- CAB LEFT POST COLUMN Fig-15 16. (Fig-16) 539-01370 DECAL- CAB SIDE WARNING Fig-16 ® 18-7 OPERATOR’S...

  • Page 68: Decal- Cab Front Duct

    DECALS- IWT Updated (continued...) 06/11/2019 17. (Fig-17) 539-01371 DECAL- CAB FRONT DUCT (BETWEEN FOOT PEDALS) Fig-17 18. (Fig-18) 539-01368 DECAL- WINDOW DOOR LOCK (RH DOOR ACCESS) Fig-18 19. (Fig-19) 539-00999 DECAL- CLEAN WITH WATER ONLY (MOUNTED ON FRONT LOWER CAB WINDOW) Fig-19 ®...

  • Page 69: Decal- Stay Clear (Small)

    DECALS- IWT Updated (continued...) 06/11/2019 17. (Fig-20) 539-00896 DECAL- STAY CLEAR (SMALL) (LOCATED ABOVE THE ACCESS DOORS BOTH LH & RH) Fig-20 18. (Fig-21) 539-01116 DECAL- OPERATOR CONTROLS (LOCATED ON THE WINDOW TO THE RIGHT OF THE OPERATOR) Fig-21 19. (Fig-22) 539-01367 DECAL- FUSE/RELAY ELECTRICAL PANEL...

  • Page 70: Decal- Barko Logo 2.5"X17.25

    DECALS- IWT Updated (continued...) 06/11/2019 17. (Fig-20) 539-01244 DECAL- BARKO LOGO 2.5”X17.25” (LH & RH) 539-01346 DECAL- “830B” BLACK 539-01242 DECAL- “930B” BLACK 539-01243 DECAL- “937B” BLACK Fig-20 18. (Fig-21) 539-01268 DECAL- BARKO LOGO 12.5”X12.7” (EACH SIDE OF DOORS LH & RH) Fig-21 19.
  • Page 71 GENERAL HVAC SYSTEM 26-3 AIR CONDITIONING (A/C) SYSTEM 26-4 HVAC SERVICE SCHEDULE 26-5 HVAC SERVICING 26-5 HEATER-A/C UNDER-SEAT UNIT OPERATOR ® 800-26001 1 BANKS AVE • SUPERIOR • WI • USA • www.barko.com (P) 800-544-6532 • (F) 800-772-2448 • Support@barko.com...
