4.8.2.

SIM Card Design Guide

SIM card signal could be interferenced by some high frequency signal, it is strongly recommended to follow
these guidelines while designing:
SIM card holder should be far away from GSM antenna

SIM traces should keep away from RF lines, VBAT and high-speed signal lines

The traces should be as short as possible

Keep SIM card holder's GND connect to main ground directly

Shielding the SIM card signal by ground well

Recommended to place a 100nF capacitor on SIM_VDD line and keep close to the SIM card holder

Add some TVS which parasitic capacitance should not exceed 50pF

Add 51Ω resistor to (SIM_RST/SIM_CLK/SIM_DATA) signal could enhance ESD protection

4.8.3.

Design Considerations for SIM Card Holder

For 8 pins SIM card holder, SIMCom recommends to use Molex 91228.Customer can visit
http://www.molex.com for more information about the holder.
SIM800L(MT6261)_Hardware Design_V1.01
SIM_VDD
SIM_RST
SIM_CLK
SIM_DET
SIM_DATA
22pF

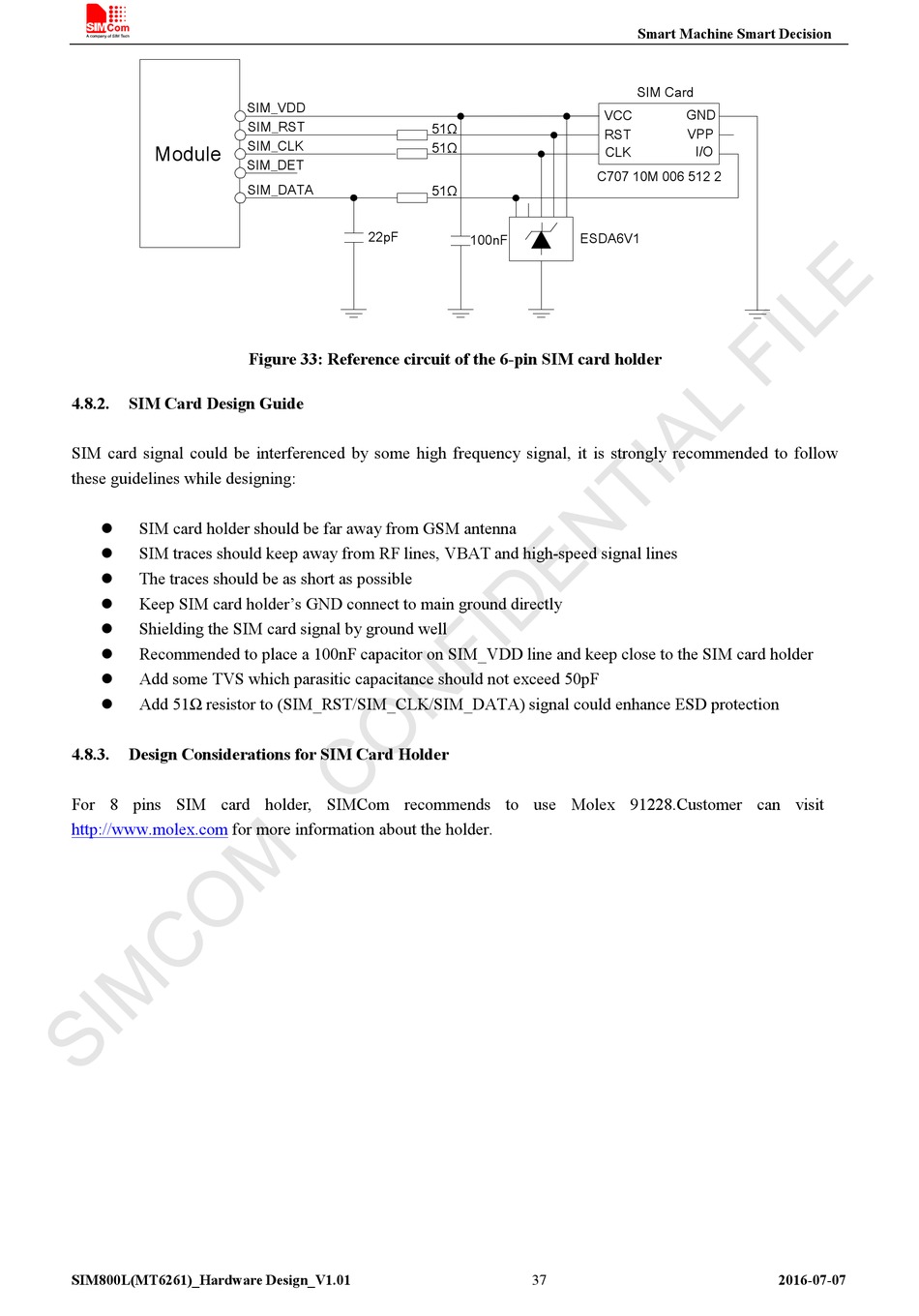

Figure 33: Reference circuit of the 6-pin SIM card holder
