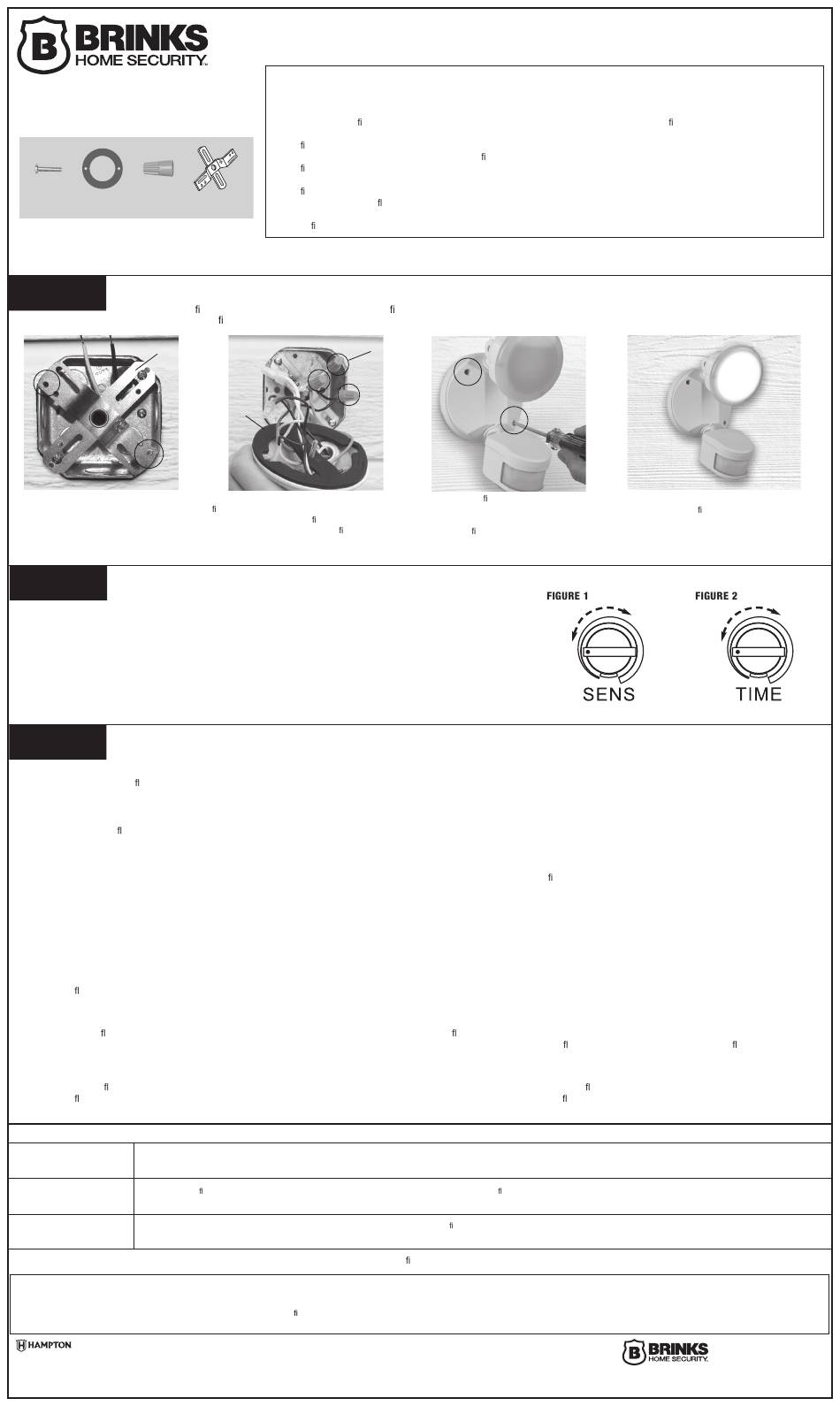

BRINKS 7003 Series Installation Instructions

MOUNTING HARDWARE INCLUDED:
A - Mounting Screw (4) C - Gasket
B - Wire Connectors (2) D - Swivel Mounting Bracket
A (4) C B (2)
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE
PRODUCT AND THE HAZARDS INVOLVED.
STEP 1:
INSTALLING YOUR NEW SECURITY FLOODLIGHT.
TURN OFF THE POWER AT FUSE/BREAKER BOX.
Remove old lighting xture. If installing at a new location, contact quali ed electrician.
For optimal performance, xture should be mounted on a wall at least 8 feet above ground.
Fixture
D
Mounting
Holes
Attach Swivel Mounting Bracket (D) to a
grounded junction box marked for use in
wet locations using 2 Mounting Screws (A).
STEP 2:
MOTION SENSOR CONTROLS
Observe the two controls on the bottom of the sensor, the SENS (sensitivity) control and the TIME (duration) control.
• SENS (sensitivity) - Set the sensitivity of the motion sensor. Turn the dial clockwise to increase the sensitivity (maximum range
is 35' or 10m). Turn the dial counterclockwise to decrease the sensitivity. The sensitivity should be set at maximum, however,
the sensitivity may need to be set lower to avoid false triggering. - FIGURE 1
• TIME (duration) - Sets how long the light will stay on after motion is detected (between 5 seconds to 8 minutes). Turn dial
counterclockwise to decrease the time duration. Turn clockwise to increase the time duration. - FIGURE 2
NOTE: Turning the dial to the full counterclockwise position will deactivate the photocell. This will allow the motion sensor to active
during the day.
STEP 3:
SETTING THE MOTION SENSOR CONTROLS
SETTING UP OR MAKING ADJUSTMENTS TO THE MOTION SENSOR
1. Turn the power OFF to the oodlight.
2. Aim the motion sensor to the approximate center of the desired detection range. Caution: Do not aim the sensor above the horizon as direct sunlight may damage the sensor.
3. Turn the "TIME" (duration) dial counterclockwise until the dial stops.
4. Turn the "SENS" (sensitivity) dial to the full clockwise rotation.
5. Turn power ON to the oodlight.
6. Set the range and sensitivity of the motion sensor.
a. Have a person move around at the furthest distance of the desired detection area (maximum range is 35' or 10m).
b. If the "SENS" dial is at the maximum clockwise rotation and the light still has not turned on, it may be necessary to re-aim the motion sensor or the desired detection area may be too great.
c. When the lights do turn ON, have the person stand still until the lights turn OFF. Once the lights are OFF, have the person move con rm the settings.
d. To reduce false triggering due to small animals or large plants in the vicinity, turn the "SENS" dial counterclockwise to decrease the sensitivity.
7. Turn the "TIME" dial clockwise to increase the time the light stays ON (up to 8 minutes) after motion is detected. NOTE: When making this adjustment during the day, once you have turned the TIME dial from
the full counterclockwise position, the light will remain on for the set duration and then turn OFF. Once the light is OFF, it will not turn ON again until motion is detected at night. To adjust the TIME duration during
the day...
a. Turn the "TIME" dial to the full counterclockwise position and pass your hand in front of the motion sensor to activate the light.
b. Once the light is ON, turn the "TIME" dial to set the time duration and note how long the light remains ON.
c. Repeat the above two steps until the desired time duration is achieved.
MANUAL OVERRIDE FEATURE
If the security oodlight is connected to an outlet controlled by a wall switch, the Manual Override Feature is available. The Manual Override Feature allows the unit to be turned ON or OFF manually during the
night, bypassing the motion sensor.
MANUAL OPERATION
To manually turn the oodlight ON, turn the wall switch OFF and then ON again immediately within 2 seconds. The oodlights will turn ON and remain ON until the wall switch is turned OFF. If the wall switch was
previously turned OFF for a period of time, turn the wall switch ON for at least 5 seconds, and then use the OFF- ON procedure above to turn the oodlight ON manually. To manually turn the oodlight OFF, simply
turn the wall switch OFF. The unit will not activate as long as the wall switch is in the OFF position.
RESETTING TO AUTOMATIC OPERATION
To return the security oodlight to automatic operation, turn the wall switch OFF for at least 5 seconds and then turn the switch back ON. The security oodlight will come ON for the time duration set, and then
turn OFF. The oodlight will now activate according to the settings on the motion sensor. Leave the wall switch in the ON position to operate the oodlight in automatic mode.
TROUBLESHOOTING
SYMPTOM
REMEDY
Does not function at all. Make sure wall switch (if installed), is ON. Check that the circuit breaker, fuse and main circuit breaker or main power switch are on. Be sure sensor head is pointed downward towards the target area.
Floodlight cycles ON and OFF. Redirect security oodlight away from heat sources such as a street, active sidewalk, barbecue grill, etc. Direct oodlight in a slightly different direction than sensor.
Turn SENS (Sensor sensitivity) control more counterclockwise.
Turn wall switch OFF for at least 5 seconds and then turn switch to ON again. This will reset the xture to normal (automatic) operations.
Floodlight is continuously ON.
If there is no wall switch, set circuit breaker OFF for at least 5 seconds and then turn circuit breaker ON again.
QUESTIONS: For further assistance or more information, please call 1-800-562-5625, 8 am – 5 pm (Paci c Time), Monday – Friday.
LIMITED LIFETIME WARRANTY – This product is warranted to be free from defects in material and workmanship for life of product. If a defect occurs, call 1-800-562-5625 for instructions on how to have defective product repaired or replaced free
of charge. LIMITATIONS - This warranty only covers Brink's assembled lighting products and accessories and is not extended to other components, Lamp Bulb(s), or equipment used on the product. Warranty extends to original purchaser of product.
Receipt or other approved proof of purchase required for warranty service. NOT LIABLE FOR INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you. This warranty gives you speci c legal rights, and you may also have other rights which vary from state to state. NOT COVERED - Product failure not relating to faulty material or workmanship,
corrosion of brass components, reimbursement for installation or unauthorized service.
50 Icon, Foothill Ranch, CA 92610-3000 USA
email: info@hamptonproducts.com
www.hamptonproducts.com • 1-800-562-5625
Made in China
3-STEP EASY INSTALLATION INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
• IF YOU ARE NOT FAMILIAR WITH ELECTRICAL WIRING, IT IS RECOMMENDED THAT YOU SECURE THE SERVICES OF A QUALIFIED
ELECTRICIAN WHO CAN ASSURE THAT THIS INSTALLATION MEETS LOCAL, STATE, AND NATIONAL CODES.
• BE SURE POWER IS TURNED OFF AT THE MAIN POWER PANEL OR FUSE BOX BEFORE INSTALLING OR REPLACING THE FIXTURE.
• Before installing this xture, be sure to check with local ordinances regarding approved outdoor lighting. This xture style may not be allowed in
some areas.
• This xture is for outdoor use only.
• The electrical system and the method of connecting the xture to the system must be in accordance with local, state, and national electrical codes.
• This xture is to be connected to a 120 Volts, 60 Hz power source. Connecting to a different power source may create a hazard and will void the
warranty.
• This xture should be mounted to a grounded junction box marked for use in wet locations.
D
• Do not use near or around ammable/combustible material or liquids.
• Do not attempt to open the motion sensor housing. There are no serviceable parts inside.
• Lowest xture operating temperature is -20º C. Performance may be affected by temperature.
C
Place round Rubber Gasket (C) onto the backside of the
xture base plate. Connect wires using twist-on wire
connectors (B). Connect black xture lead to black supply
lead from junction box. Connect white xture lead to white
(black and white) lead from the junction box Connect green
ground (GND) wires to all green or bare house wires.
B
Secure lighting xture to the Swivel Mounting
Bracket (D) using the Mounting Screws (A).
Apply a weatherproof silicone caulk or sealant
around the xture base for a rain-tight seal.
Position lamp holders downward at a minimum
45º and away from xture housing a minimum of
2 inches. Aim the motion sensor at the center of
the desired detection area.
MIN MAX MIN
Brink's trademark & copyright
work are used with permission.
©2017 Hampton Products International Corp.
999-61484_7003_REVA 06/17
SERIES 7003
MAX
