SOLITAIRE ALL FEATURES STATION - SAF
preset. Pressing the auto-sequence button again will stop the auto-sequence and
the lights will return to the preset that was active before entering auto-sequence
mode. Pressing the OFF or FULL preset button on a master station will also stop the
auto-sequence.
Remote Lock Mode allows remote stations to be made inaccessible. Any remote
station with it's rotary switch set to position 9 will be Locked for as long as the
button is activated. No buttons on a locked station will function.
Channel Memory Lock Mode allows changes to be made to a selected channels light
levels, but these changes cannot be stored as long as this button is activated.
Each button is an alternate action button. The function is active when the LED is lit
and inactive when the LED is off.
Press the Auto Button to start and stop auto-sequencing.
Press the R/LK Button to lock and unlock selected remote stations.
Press the C/LK Button to lock end unlock selected channel's memory.
This station allows three functions, auto-sequence,
remote lock, and channel memory lock to be
performed remotely.
Auto-sequence Mode allows six presets (1 - 6 or
7 - 12 or 13 -18) to be faded from one to the next in
in sequential order. The fade time length is set at
the master station. The presets will continue to
step from one to the next as long as the Auto-
sequence Button is activated. If a preset is selected
at a master station while auto-sequence is running
on Page 1 (in Page 2 or 3 pressing a preset button
has no effect), the selected preset will be active and
the auto-sequence will continue with the next

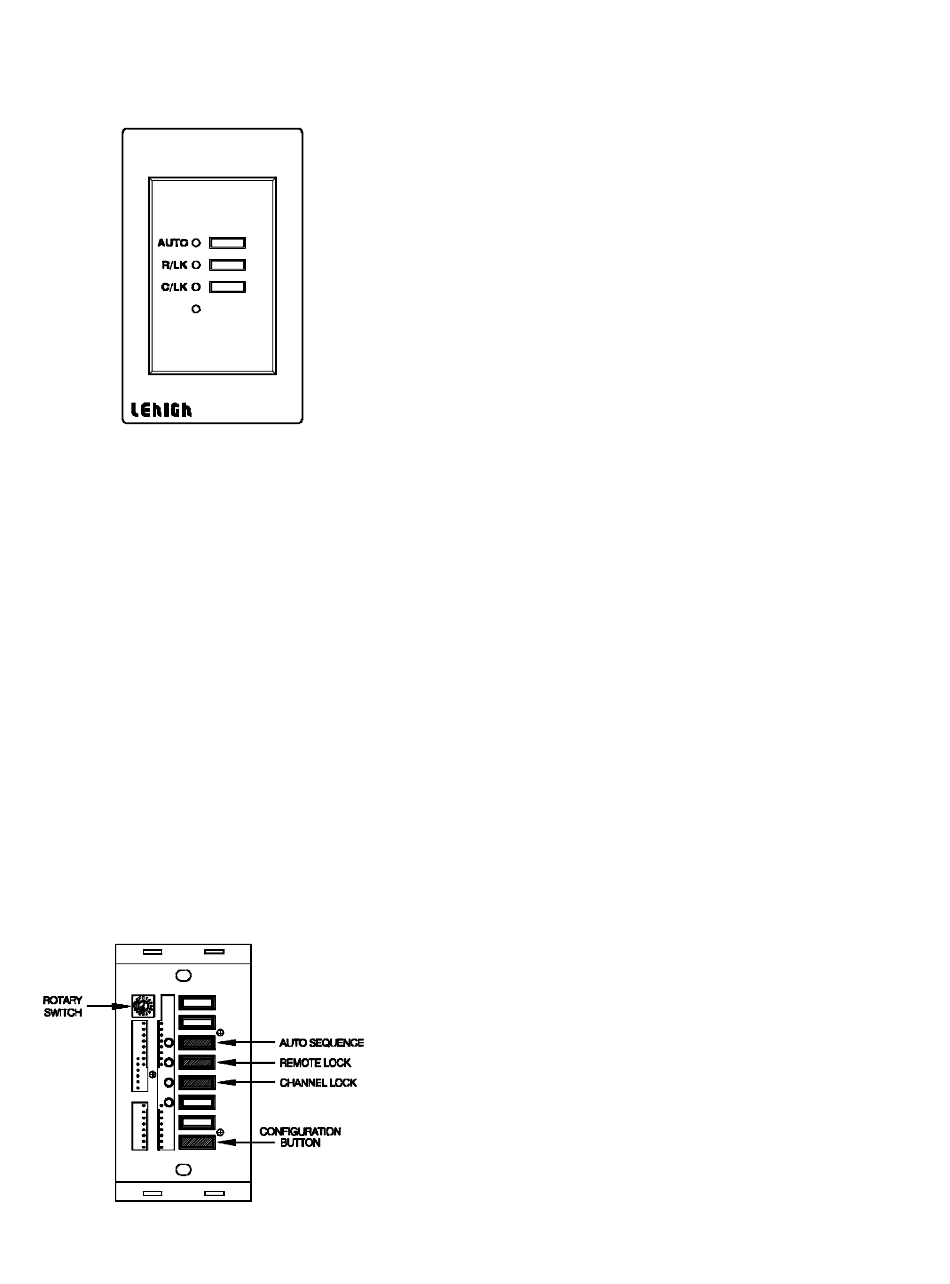

CONFIGURING SAF STATIONS

To configure the station carefully remove the
faceplate and press the Configuration Button. All
of the LED's will be blinking. Use the screwdriver to
turn the rotary switch to the desired area number
(matching the appropriate master station). When
the correct area number is selected, press the
Configuration Button again.
The area is now set and the LED next to the
auto-sequence button will now be blinking and all
other LED's will be off.
