GLUE
LOCK

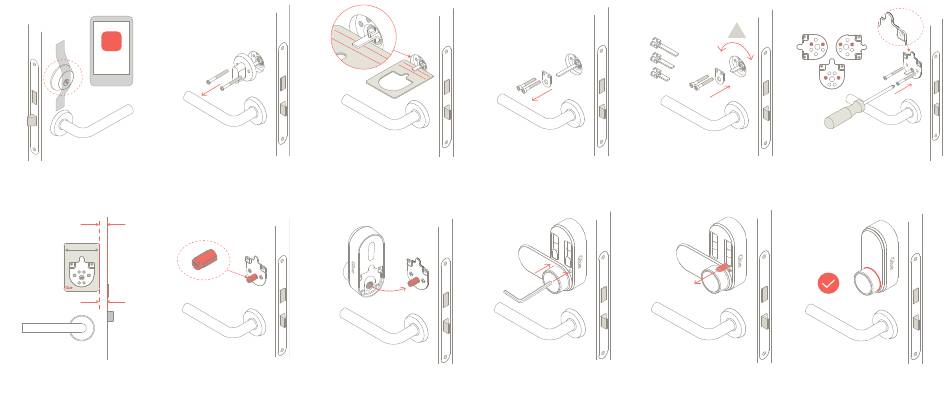

Step 1 - Download the GLUE LOCK App.
Step 2 - Remove the existing inside thumb turn by
Secure the lock cylinder on the outside of the door with
unscrewing the two screws in the thumb turn plate.
sticky tape. This makes it easier whilst you fit your Glue
Keep these screws as you will use them later, if they
Smart Lock.
are long enough.
Step 5 - Ensure the door plate is straight by using the
Step 6 - Slide the insert supplied over the tail piece.
Glue Installation Template as a guide with the side of
DO NOT ROTATE THE TAIL PIECE WHEN FITTING.
the door. Now fully tighten the screws, but do not
over tighten. It is not a problem if the door plate does
not fully cover the hole in the door.
Step 3a - If the tail piece is too short, or too long, un-
Step 3 - Measure the existing tail piece in your lock with
the install template. The end should sit between the
screw the D-plate and carefully remove it. Be careful
MAX and MIN lines. If it is the correct length, skip to
not to drop the screws inside the door body.
Step 4.
Step 7 - Turn the thumb turn on the Glue Smart Lock to
Step 8 - Holding the Glue Smart Lock against the door,
the approximate centre, until the slots inside the turn-
screw the two screws behind the battery cover to the
ing section align with the ribs on the insert. Then slide
door plate. Use the thumb turn on the Glue Smart
the Glue Smart Lock over the insert onto the door plate.
Lock to check the latch opens and closes smoothly, if
not, return to Step 4.
!
Step 3b - Replace with one of the three tail pieces
Step 4 - Use screws from step 2 to loosely attach the
supplied, that fits between the MIN and MAX lines.
door plate. Use holes shown above depending on the
DO NOT ROTATE THE LOCK OR TAIL PIECE WHEN
chosen mounting angle. The rubber side of the plate
FITTING.
faces the door. If a different length screw is required,
cut the longer screws supplied to the correct length.
Step 9 - Check the lock is securely fastened to the
Step 10 - Once the light has flashed behind the thumb
door. If not, check all screws are tightened. Then re-
turn your Glue Smart Lock is ready to calibrate.
move the battery tabs. The light behind the thumb
From now on follow the instructions in the app "Add
turn will flash twice.
new Glue Lock".
