Entek IRD 6666 Manual

Protection monitors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H
120
L
P
ºF
L
I
T
D
I
S
R
E
S
T
S
T
6 CHANNEL
TEMPERATURE
MONITOR 6666
S
E
L
6666 and 6667
Protection Monitors
6666 and 6667 Protection Monitors
Entek IRD International Corporation
Your Guide to the
P/N 43867

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6666 and is the answer not in the manual?

Questions and answers

Related Manuals for Entek IRD 6666

Summary of Contents for Entek IRD 6666

  • Page 1 6666 and 6667 Protection Monitors ºF 6 CHANNEL TEMPERATURE MONITOR 6666 Your Guide to the 6666 and 6667 Protection Monitors Entek IRD International Corporation P/N 43867...
  • Page 2 Printed in the U.S.A. This Manual is supplied to the User under license, subject to recall by Entek IRD International Corporation at any time, and the Manual at all times remains the property of Entek IRD International Corporation. The information contained in this Manual is considered confidential.

  • Page 3: Table Of Contents

    Monitor Backplane ..........8 Signal to Terminal Block Wiring (6666 Monitor) ......9 Signal to Terminal Block Wiring (6667 Monitor) .
  • Page 4 Testing Calibration and Relays......... .40 Signal Inputs for Testing a 6666 Monitor ......40 Calibration and System OK Relay Test for 6666 Monitor .
  • Page 5 Entek IRD and/or its suppliers. Without prior written consent of Entek IRD, Customer shall not do, or permit or assist others to do any of the following: (i) allow the Software, related documentation or any portion thereof in any form to be used by any person or entity other than Customer's employees or agents, and then only to the extent necessary in the scope of their employment or agency;...
  • Page 6 Customer agrees that if the operation of the Entek IRD Software becomes, or Entek IRD believes is likely to become, the subject of such a claim, Customer will permit Entek IRD at its option and expense, either to secure the right for Customer to continue using the Entek IRD Software or to replace or modify it so that it becomes non-infringing.
  • Page 7 When the license terminates no refund shall be made by Entek IRD, and Customer shall at its expense return to Entek IRD the Software and related documentation together with all copies, modifications, and merged portions in any form.
  • Page 8 TIMING. All delivery/shipping and service dates stated by Entek IRD are approximate dates only and estimated in good faith to the best of Entek IRD's ability and are dependent upon Entek IRD's prompt receipt of all necessary information from Customer. Time shall not be deemed to be of the essence in Entek IRD’s performance of this agreement, and no penalty clause of any...
  • Page 9 Act of God; (b) if the product is not installed, operated and maintained according to procedures recommended by Entek IRD; or (c) if the Entek IRD serial number is obliterated. In no case shall the limited warranty extend to defects in materials, components, or services furnished by third parties or to the repair or installation of the product performed by third parties.
  • Page 10 Terms and Conditions is not to be considered a continuing waiver or a waiver of any other term or condition. No statement purporting to modify any of these terms or conditions shall be binding unless expressly agreed to in writing signed by an officer of Entek IRD and by Customer.

  • Page 11: Introduction

    In addition, the 6666 and 6667 continually compare the value to the Alert and Danger alarm setpoints. The 6666 and 6667 allow you to set relay mapping, allowing for complex combinations of alarms to trip a single relay using “voting”...
  • Page 12 The temperature sensor type is preset at the factory. The following table lists the available 6666 configurations, which are specified when ordering the monitor. The monitor part number is in the form 6666/AAAAAA where “A” indicates the RTD type for the channel The part number is labeled on the monitor board.

  • Page 13: Table Of Abbreviations

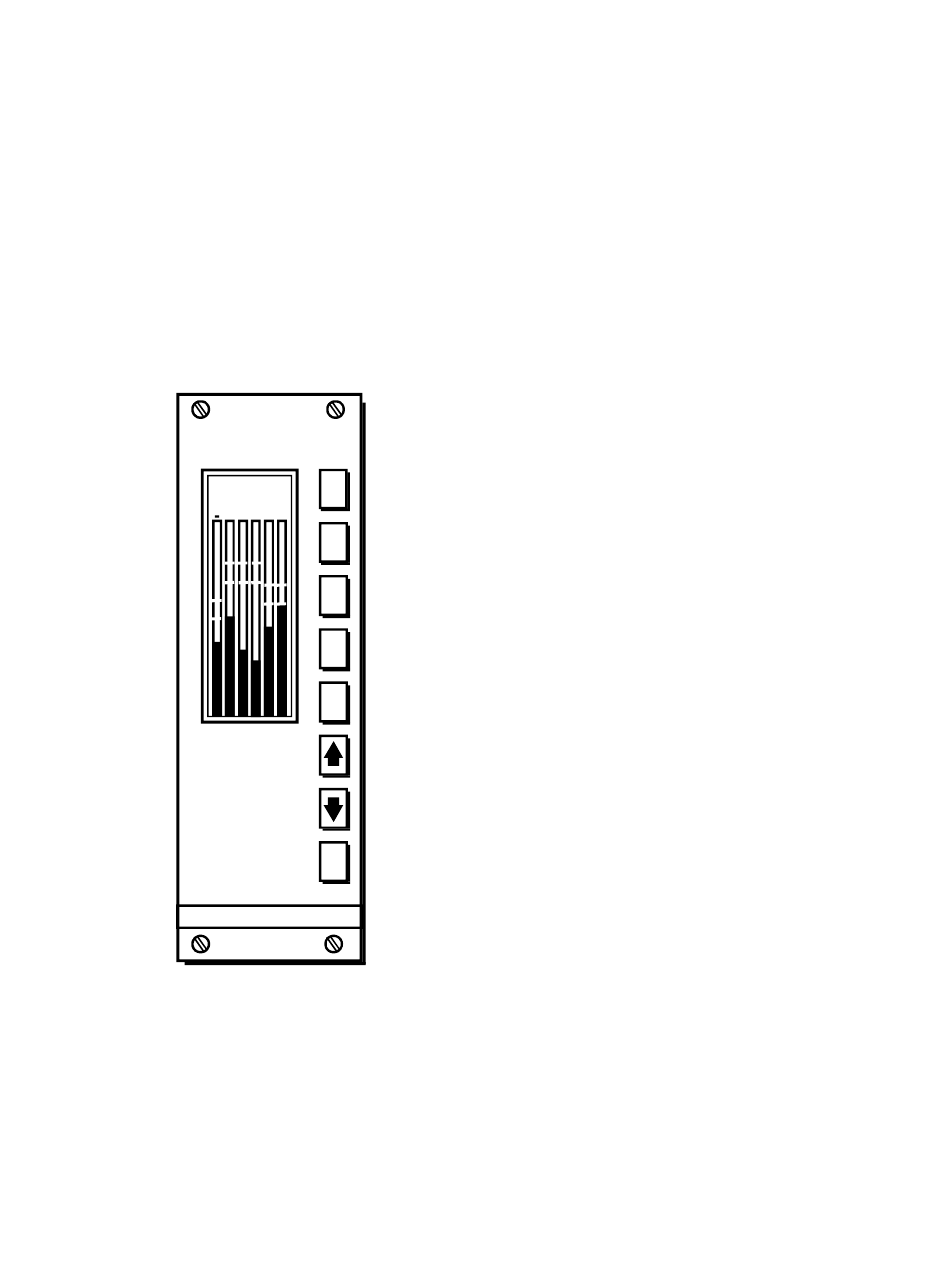

    Volt DC Front Panel Description The 6666 front panel appears below. The 6667 front panel is identical except for the monitor number. The display consists of six bar graphs, showing the parameter level for each channel relative to full scale. Above the bar graph, the display shows the actual value for the active input channel.

  • Page 14: Inputs

    Outputs The primary 6666 and 6667 outputs are described below. For a complete listing of the backplane outputs, see “Monitor Backplane” on page 8, “Signal to Terminal Block Wiring (6666 Monitor)” on page 9, and “Signal to Terminal Block Wiring (6667 Monitor)” on page 4–20 mA per channel into a maximum load of 600 ohms, scaled so that 20 mA...

  • Page 15: Customer Support

    Display Backlight The backlight makes it easy to see the 6666 and 6667 displays, even in dim light. When the system is functioning properly and no signals are in alarm, the backlight is off. However, in case of an alarm or transducer failure, the 6666 and 6667 automatically turn on the backlight to alert you.

  • Page 16: Displaying Alternate Pages

    Basic Operation Displaying Alternate Pages The 6666 and 6667 have three display pages. The first is the one pictured on page 3, and shows the six bar graphs. To display the second page, press and release the DIS button. This page displays the current value and unit of measurement for each channel. “CH1” and CH 1 “CH4”...

  • Page 17: Displaying The Monitor Firmware Version

    Press SEL to exit the Firmware Version screen. Status Messages The 6666 and 6667 monitors can display a number of status messages that alert you to alarms or to problems with the transducers or monitoring system. This message appears when the temperature sensor signal goes out of the TX FAIL specified range.

  • Page 18: Installation

    MON SER I/O RX- EARTH The functions of the relay contacts on the backplane of the 6666 and 6667 depend on the mapping you set in the monitor. For more information, see “Understanding Alarm and Relay Mapping” on page 26.

  • Page 19: Signal To Terminal Block Wiring (6666 Monitor)

    Installation Signal to Terminal Block Wiring (6666 Monitor) The 6666 uses an external terminal block to allow for up to six channel inputs and 4–20mA recorder outputs. The terminal block is attached to the 6666 backplane with a ribbon cable.

  • Page 20: Signal To Terminal Block Wiring (6667 Monitor)

    25 CHANNEL 6 4-20mA - 13 SIGNAL COMMON 26 SIGNAL COMMON Note the following: You may ground the cable shield at either end of the cable. Do not ground the shield at both ends. Entek IRD 6666 and 6667 Protection Monitors...

  • Page 21: Terminal Block To Backplane Wiring

    Installation Terminal Block to Backplane Wiring The 6666 and 6667 terminal blocks are attached to the monitor backplane with a ribbon cable. The graphic below shows the terminal block for the 6666. The ribbon cable connection for the 6667 is similar to that for the 6666. The maximum recommended length for the ribbon cable is 2 m (6 feet) or less.

  • Page 22: Configuration

    This section describes how you configure the 6666 and 6667. The menu options and configuration steps are the same for the 6666 and the 6667. The 6660 Series monitors are easy to configure. All the controls to configure a 6600 monitor are on the front panel of the monitor.
  • Page 23 Contact your Supervisor for assistance. For more information on the link security feature, contact Entek IRD Customer Support. Press and hold the Up Arrow button to increase the current value for the Alert setpoint 95.00...

  • Page 24: User Menu Configuration

    The controls to access the User menu and configure the 6666 and 6667 monitors are all on the front panel of the monitor. The User menu is identical for both the 6666 and 6667. See “Front Panel Description” on page 3 for a picture of the front of the monitor.

  • Page 25: User Menu Options

    Configuration User menu options The User menu has the following options. The options are the same for both the 6666 and 6667. CLOCK Display the submenu to set the date and time in the monitor. ALM 1-3 Display the submenu for the Alert and Danger alarm setpoints for input channels 1 through 3.

  • Page 26: To Set The Date And Time

    When you are done changing options, move the highlight to EXIT and press SEL to EXIT exit the menu. When you exit the submenu for CLOCK, the monitor displays the date and time for a few seconds before displaying the User menu. Entek IRD 6666 and 6667 Protection Monitors...

  • Page 27: Alm 1-3 And Alm 4-6 Submenus

    Danger alarm. EXIT Return to the User menu. The monitor remembers the current values for menu options, but does not write them to memory until you exit the User menu. Entek IRD 6666 and 6667 Protection Monitors...

  • Page 28: Factory Menu Configuration

    Transducer normal OK limits Alarm mapping and relay operation The controls to access the Factory menu and configure the 6666 and 6667 monitor are all on the front panel of the monitor. The Factory menu is identical for both the 6666 and 6667.

  • Page 29: Factory Menu Structure

    Note: The options that appear on the RELAYS submenu depend on the setting for the STD MAP option. See “RELAYS submenu” on page 22 and “Understanding Alarm and Relay Mapping” on page 26 for more information. Entek IRD 6666 and 6667 Protection Monitors...

  • Page 30: Comm's Submenu

    Factory menu. CHANS submenu If you configure the 6666 or 6667 to use fewer than 6 channels (CHANS < 6), make the following adjustments to avoid alarm or transducer failure on the inactive channels: Set the Alert and Danger alarms for the inactive channels to their maximum values. See “ALM 1-3 and ALM 4-6 submenus”...

  • Page 31: Tx 1-3 And Tx 4-6 Submenus

    Factory menu. Note: The 6666 and 6667 monitors are designed so that the input from the RTD or thermocouple creates a voltage between 0.4 volts to 4.8 volts for the valid range of the RTD or thermocouple.

  • Page 32: Relays Submenu

    Alert and Danger alarms to the same relay when STD MAP=NO. You must change the relay selection so that only one level of alarm is mapped to the relay (either Alert or Danger, but not both). Entek IRD 6666 and 6667 Protection Monitors...

  • Page 33: Attribs Submenu

    The relay is energized when power is applied to the unit. The relay in a non-alarmed condition contains power. In alarmed condition, power is removed from the relay coil, causing the relay to change state. Entek IRD 6666 and 6667 Protection Monitors...
  • Page 34 Under normal (nonalarm) conditions, the relay closes the circuit between the common and the N/C (normally closed) terminals. Under alarm conditions, the relay changes state to close the circuit between the common and the N/O (normally open) terminals. Entek IRD 6666 and 6667 Protection Monitors...

  • Page 35: Rising Submenu

    Factory menu → the Factory menu. RELAYS → DELAYS Note: The GLOBAL alarm delays do not affect the System OK relay. Entek IRD 6666 and 6667 Protection Monitors...

  • Page 36: Understanding Alarm And Relay Mapping

    Configuration Understanding Alarm and Relay Mapping The 6666 and 6667 allow you to choose how the monitor assigns alarms to relays. The STD MAP option (“RELAYS submenu” on page 22) determines how Alert and Danger alarms are mapped to alarm relays. System Fail, transducer fail, and loss of power all trip Relay 1.

  • Page 37: Standard Alarm Mapping (Std Map = Yes)

    When you set STD MAP to NO, two new options appear on the RELAY submenu: MAP 1-3 allows you to manually assign relays to alarms for channels 1–3. MAP 4-6 allows you to manually assign relays to alarms for channels 4–6. Entek IRD 6666 and 6667 Protection Monitors...
  • Page 38 Alert and Danger alarms for channels 1–3. With MAP AL1 selected, press SEL to choose the relays for the channel 1 Alert alarm. MAP AL1 MAP DG1 MAP AL2 MAP DG2 MAP AL3 MAP DG3 EXIT Entek IRD 6666 and 6667 Protection Monitors...
  • Page 39 Then use the Up Arrow or Down Arrow to change the number under RELAY - to 2. You can remove all the relays (2 through 7) from the alarm by changing the number RELAY + under RELAY - to ALL. RELAY - EXIT Entek IRD 6666 and 6667 Protection Monitors...

  • Page 40: Logical Alarm Mapping (Std Map = Logic)

    EXIT MAP 4-6 ALM4MAP MAPPING EXIT ALM5MAP ALM6MAP EXIT RLY2MAP RLY3MAP FS RLY2 RLY4MAP FS RLY3 RLY5MAP Factory menu FS RLY4 RLY6MAP → RELAYS FS RLY5 RLY7MAP FS RLY6 EXIT FS RLY7 EXIT Entek IRD 6666 and 6667 Protection Monitors...
  • Page 41 For this example, you map channel 3 Alert alarm AND channel 5 Danger alarm to relay 2. The channel 3 Alert alarm and the channel 5 Danger alarm are the two sources for relay 2 channel 3 Alert AND channel 5 Danger RLY2MAP Entek IRD 6666 and 6667 Protection Monitors...
  • Page 42 RLY6MAP RLY7MAP EXIT To set the first source, select RLYSRC1. Note that this menu might contain additional source options. The first source for relay 2 is the channel 3 Alert alarm. RLYSRC1 EXIT Entek IRD 6666 and 6667 Protection Monitors...
  • Page 43 You have now set the second source for the equation: SRC NUM relay 2 = channel 3 Alert AND channel 5 Danger COMBINE 13. Select EXIT. You can set the combination of alarms for other relays by repeating these EXIT steps. Entek IRD 6666 and 6667 Protection Monitors...
  • Page 44 Set the RLY2MAP to the combination of ALM1MAP OR ALM2MAP. Each of these steps is explained in the sections that follow. To set ALM1MAP Move the highlight to MAPPING and press SEL. ATTRIBS DELAYS STD MAP MAP 4-6 MAPPING EXIT Entek IRD 6666 and 6667 Protection Monitors...
  • Page 45 SRC NUM You have now set the first half of the first equation: relay 2 = channel 1 Alert AND source 2 COMBINE You now need to set the second source. EXIT Select EXIT. Entek IRD 6666 and 6667 Protection Monitors...
  • Page 46 ALM6MAP EXIT To set the first source in ALM2MAP, select ALMSRC1. Note that this menu might contain additional source options. The first source for ALM2MAP is a channel 2 Alert alarm. ALMSRC1 EXIT Entek IRD 6666 and 6667 Protection Monitors...
  • Page 47 You now need to set the relay map to map ALM1MAP OR ALM2MAP to relay 2. 11. Select EXIT three times to return to the RLY MAP option. COMBINE EXIT To set the relay map Select RLY MAP. ALM MAP RLY MAP FAILSAFE EXIT Entek IRD 6666 and 6667 Protection Monitors...
  • Page 48 You now need to set the second source (the second alarm map). COMBINE Select EXIT. EXIT To set the second source, select RLYSRC2. The second source for relay 2 is the second alarm map (ALM2MAP). RLYSRC1 RLYSRC2 EXIT Entek IRD 6666 and 6667 Protection Monitors...
  • Page 49 Move the highlight to the relay you want to in failsafe condition and press SEL. Select YES or NO: YES - The relay is in a failsafe condition. NO - The relay is not in a failsafe condition. Remember that relay 1 is always in a failsafe condition. Entek IRD 6666 and 6667 Protection Monitors...

  • Page 50: Testing Calibration And Relays

    “Alarm Relay Test for 6666 and 6667 Monitors” on page 48 Signal Inputs for Testing a 6666 Monitor When testing any of the 6600 monitors, you must use the correct input. For the 6666, the monitor expects a range of resistance corresponding to the temperature sensor type which is preset at the factory.
  • Page 51 Testing Calibration and Relays The analog circuitry of the 6666 produces a voltage between 0.4 volts to 4.8 volts for each of the resistance ranges in the table above. For example, for suffix “B”, the analog circuit produces 0.4 volts at -20°C and 4.8 volts at 200°C. The maximum range for the monitor is 0–5 volts, which means that the transducer failure values must be set to temperatures...

  • Page 52: Calibration And System Ok Relay Test For 6666 Monitor

    Calibration and System OK Relay Test for 6666 Monitor The following steps show you how to test the calibration for input channel 1 for a 6666 monitor. They also test the function of the System OK relay. To test the calibration for input channels 2 through 6, substitute the correct input channel terminals.

  • Page 53: Signal Inputs For Testing A 6667 Monitor

    Testing Calibration and Relays Repeat this process for channels 2–6. The following table gives you example settings, inputs, and readings for several 6666 monitor configurations. Note: Accuracy is ±2.5% of full scale. “B” config “C” config “N” config Display units (UNITS 1) °C...
  • Page 54 L OC ATE D O N T H E TH ER M OC OU PL E C O ND I TI O N I NG UN I T ( TE R M I N AL B LO C K ) Entek IRD 6666 and 6667 Protection Monitors...
  • Page 55 A thermocouple simulator may be substituted for the voltage calibrator. The cold junction temperature must be determined at the conditioning unit using a separate thermometer when using a voltage calibrator. Entek IRD 6666 and 6667 Protection Monitors...

  • Page 56: Calibration And System Ok Relay Test For 6667 Monitor

    1.114 1.432 1.162 1.155 1.484 1.203 1.196 1.536 Note: If using a thermocouple simulator, the thermocouple conditioning unit makes the temperature correction, so you do not have to measure the cold junction temperature. Entek IRD 6666 and 6667 Protection Monitors...
  • Page 57 15. Test the state of the System OK relay terminals (25 and 26 on the backplane). The state should change to Closed when you change the input signal, indicating transducer failure. Note that the System OK relay is not subject to the GLOBAL alarm delay (DELAYS submenu, page 25). Entek IRD 6666 and 6667 Protection Monitors...
  • Page 58 When using a DC voltage source, the cold junction temperature voltage must be subtracted from the input voltage. ** When using a thermocouple simulator, the 6667 thermocouple conditioning unit corrects for the cold junction temperature. Entek IRD 6666 and 6667 Protection Monitors...

  • Page 59: Alarm Relay Test For 6666 And 6667 Monitors

    40, 41, 42 Channel 6 Danger 43, 44, 45 Note: These steps apply to both the 6666 and 6667 monitors. For the 6666, attach a variable resistance box to the inputs. For the 6667, attach a DC voltage source or thermocouple simulator.
  • Page 60 Connect a known resistance (6666), DC voltage source (6667), or thermocouple simulator (6667) to the channel 1 input terminals. Refer to “Signal Inputs for Testing a 6666 Monitor” on page 40 and “Signal Inputs for Testing a 6667 Monitor” on page 43 for details.

  • Page 61: Specifications

    Specifications Specifications The following are the technical specifications for the 6666. Inputs Transducer type 1 to 6 temperature sensor inputs 6666 monitor accepts input from RTDs through external terminal block 6667 monitor accepts input from thermocouples through external thermocouple conditioning unit (terminal block)
  • Page 62 Range - input units, alarm setpoints Transducer OK - transducer low and high voltage each channel Relays - failsafe or nonfailsafe, latching or nonlatching, time delays, alarm mapping Channels - 1 to 6 input channels Entek IRD 6666 and 6667 Protection Monitors...
  • Page 63 0 to 95%, non-condensing Circuit board and components are conformal coated Vibration Vibration applied in three mutually-perpendicular planes, 10–58 Hz at constant displacement of 0.15mm, 58–500 Hz at constant acceleration of 1.0 g Entek IRD 6666 and 6667 Protection Monitors...

  • Page 64: 6666 And 6667 Monitor Settings Worksheet

    6666 and 6667 Monitor Settings Worksheet This worksheet gives you a place to record the 6666 and 6667 monitor settings. The options are the same for either type of monitor. If you have to replace the monitor with a spare, this worksheet will allow you to configure the new monitor quickly and easily.
  • Page 65 RELAYS submenu ATTRIBS submenu FAILSFE (only if AD, no, A-, -D, STD MAP = YES or LATCHED YES, NO RISING submenu RISING 1 YES, NO RISING 2 YES, NO RISING 3 YES, NO Entek IRD 6666 and 6667 Protection Monitors...
  • Page 66 MAP AL 5 submenu MAP AL5 2 to 7 MAP DG5 submenu MAP DG5 2 to 7 MAP AL 6 submenu MAP AL6 2 to 7 MAP DG 6 submenu MAP DG6 2 to 7 Entek IRD 6666 and 6667 Protection Monitors...
  • Page 67 SRC NUM 1 to 6 COMBINE AND, OR, END ALM6MAP submenu ALMSRC1 submenu ALM6 1 ALERT, DANGER SRC NUM 1 to 6 COMBINE AND, OR, END RLY MAP submenu RLY2MAP submenu RLYSRC1 submenu Entek IRD 6666 and 6667 Protection Monitors...
  • Page 68 AND, OR, END RLY6MAP submenu RLYSRC1 submenu RLY6 1 ALERT, DANGER, ALARM SRC NUM 1 to 6 COMBINE AND, OR, END RLY7MAP submenu RLYSRC1 submenu RLY7 1 ALERT, DANGER, ALARM SRC NUM 1 to 6 Entek IRD 6666 and 6667 Protection Monitors...
  • Page 69 FS RLY3 submenu FS RLY3 YES, NO FS RLY4 submenu FS RLY4 YES, NO FS RLY5 submenu FS RLY5 YES, NO FS RLY6 submenu FS RLY6 YES, NO FS RLY7 submenu FS RLY7 YES, NO Entek IRD 6666 and 6667 Protection Monitors...
  • Page 70 6666 and 6667 Monitor Settings Worksheet Entek IRD 6666 and 6667 Protection Monitors...
  • Page 71 6 introduction 12 ATTRIBS menu option 22 continuous protection feature 12 ATTRIBS submenu Customer Support description 23 email 5 FAILSAFE option 23 hotline 5 LATCHED option 23 RISING option 23 Entek IRD 6666 and 6667 Protection Monitors...
  • Page 72 COMM’S 20 MAP AL1 29 DELAYS 25 MAPPING menu option 22 RELAYS 22 mapping, alarms TX 1-3 21 logical 30 TX 4-6 21 manual 27 UNITS 20 standard 27 FAILSAFE menu option 23, 39 Entek IRD 6666 and 6667 Protection Monitors...
  • Page 73 25 status messages 7 RELAY - 29 STD MAP menu option 22, 26 RELAY + 29 STD MAP option LOGIC 26, 30 NO 26, 27 YES 26, 27 “SYS FAIL” message 7 Entek IRD 6666 and 6667 Protection Monitors...
  • Page 74 TX LO options 21 TX FAIL message 7 TX LO 1-3 menu options 21 UNITS 1-6 menu options 20 UNITS menu option 18 UNITS submenu description 20 UNITS 1-6 options 20 Up Arrow button 4, 12 Entek IRD 6666 and 6667 Protection Monitors...
