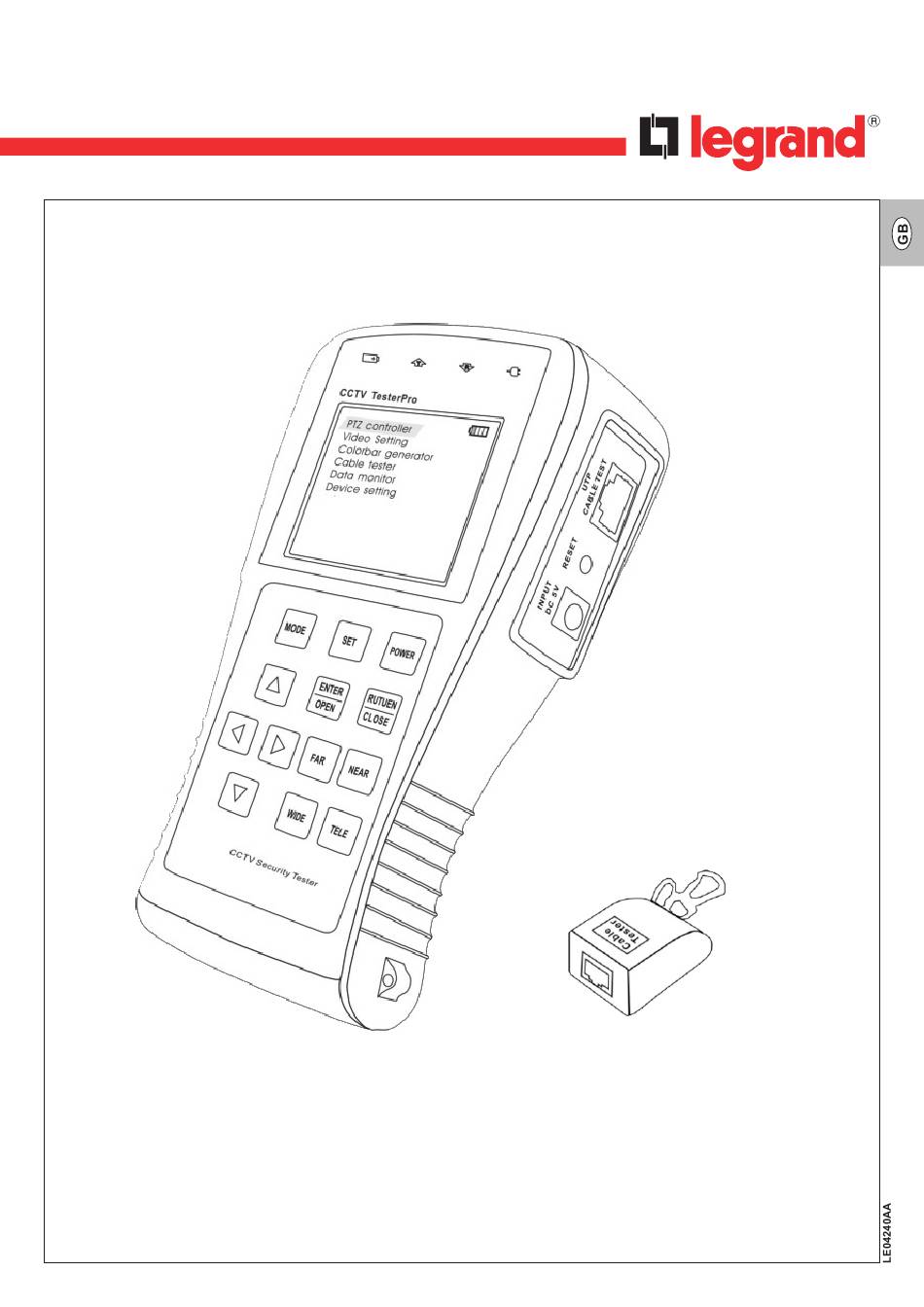

- Page 1 • CCTV Tester 430 586...
-
Page 2: Table Of Contents
Indice Introduction 1.1 Features 1.2 Packaging 1.3 Front Panel 1.4 Side View 1.5 Installing the battery Operation 2.1 Power on 2.2 Menu & functions 2.3 PTZ controller 2.4 Video setting 2.5 Colorbar generator 2.6 Cable tester 2.7 Data monitor 2.8 Device setting 2.9 Address search Specifiations Safety instructions... -
Page 3: Introduction
1. Introduction The CCTV tester is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, controlling PTZ, generating images, capturing data of RS485 and testing LAN cable etc. 1.1 Features • 2.8”TFT-LCD , 960 (H) ×... -
Page 4: Packaging
1.2 Packaging Item description Item picture CCTV tester LAN Cable Tester Lithium Ion Polymer Battery Power supply (5V 2A) BNC Cable Safety cord RS485 data cable RS232 cable User manual... -
Page 5: Front Panel
1.3 Front Panel The power indicator: it lights green while the tester is powered on. The data-reception indicator: it lights red while the data is being received. The data-transmission indicator: it lights red while the data is being transmitted. The charge indicator: it lights red while the battery is being charged. -
Page 6: Side View
Leftward: Enter the sub-menu or select the parameter whose value will be changed. Reduce the value of the parameter. Pan the PTZ left. Rightward: Enter the sub-menu or select the parameter whose value will be changed. Add the value of the parameter. Pan the PTZ right. ... -
Page 7: Installing The Battery
1.5 Installing the battery The tester has built-in lithium ion polymer rechargeable battery. The battery cable inside battery cabin should be disconnected for safety during transportation! Prior to the use of the instrument, the battery cables inside the battery cabin should be well connected and the color of cables should be at the same side. -
Page 8: Operation
2. Operation 2.1 Power on Continuously press (at least 2 seconds) to power on/off the CCTV tester. When the CCTV tester is powered on, press MODE key the main-menu will pop up. 2.2 Menu & functions Press MODE key continuously or press the key to select the function (PTZ controller, Video settings, Colorbar generator, Cable tester, Data monitor, Device setting) and enter corresponding function setting sub-menu. - Page 9 2. Video setting Adjust the LCD brightness, Contrast, Color saturation. Video Format displaying and Video level testing. 3. Colorbar generator Output or receive seven different forms of video color bar to tester monitor, cable or other equipment. 4. Cable tester Test LAN cable or telephone cable.
-
Page 10: Ptz Controller
2.3 PTZ Controller Display the input video images. Pan/tilt the P/T unit and zoom in/out the image. Setup the controlling parameters like protocol, communication port, baud rate, PTZ ID, pan/tilt speed; set and call preset position. The following connections should be confirmed before use a. - Page 11 Protocol: Select the protocol according to the protocol of the PTZ camera. Up to 30 popular protocols are available, like Pelco P , Pelco D, Samsung, Yaan, LiLin, CSR600 etc. Port: Select the communication port for the PTZ camera controlling (RS232/422/485). Baud: Select the baudrate according to baudrate of the PTZ camera.
-
Page 12: Video Setting
OSD Menu of Dome (For reference only) 2.4 Video setting User can customize the brightness, contrast and saturation of the LCD according to the using environment, the CCTV tester auto display the format (PAL/NTSC) of video input, and analysis the input video signal level. a. -
Page 13: Colorbar Generator
2.5 Colorbar generator (Output video at any mode) Output or receive seven different forms of video color bar to test monitor, video cable or other equipment. a. Press the key to select the parameter which we want to change the value. b. -
Page 14: Data Monitor
2.7 Data monitor Capture the command data from RS485 controlling system (for example : keyboard, DVR). a. Connect the RS485 or RS232 interface of controlling system with the RS485 or RS232 interface of the CCTV Tester (In case of RS485, A to A, B to B). b. -
Page 15: Address Search
2.9 PTZ address scanning Search up the ID of PTZ camera. Note: Please isolate the PTZ camera with other PTZ cameras before searching up. Otherwise all the PTZ cameras in the same system will pan at the same time. Press keys to “Device setting”... -
Page 16: Specifiations
3. Specifications Video Test Signal mode NTSC/PAL (Auto adapt) Display 2.8 inch digital TFT-LCD, 960 x 240 resolution LCD adjustment Brightness, Contrast, Saturation adjustable Video IN/OUT 1 channel BNC Input & 1 channel Output Video Output Mode 1.0 Vp-p Video Level test Video signals measured in IRE or mV PTZ controller Communication...
