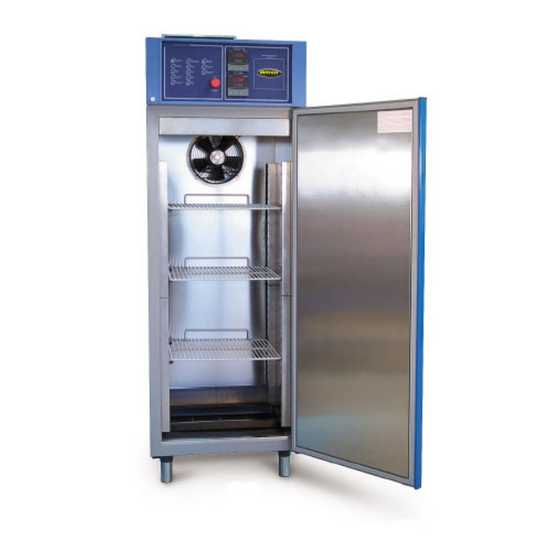

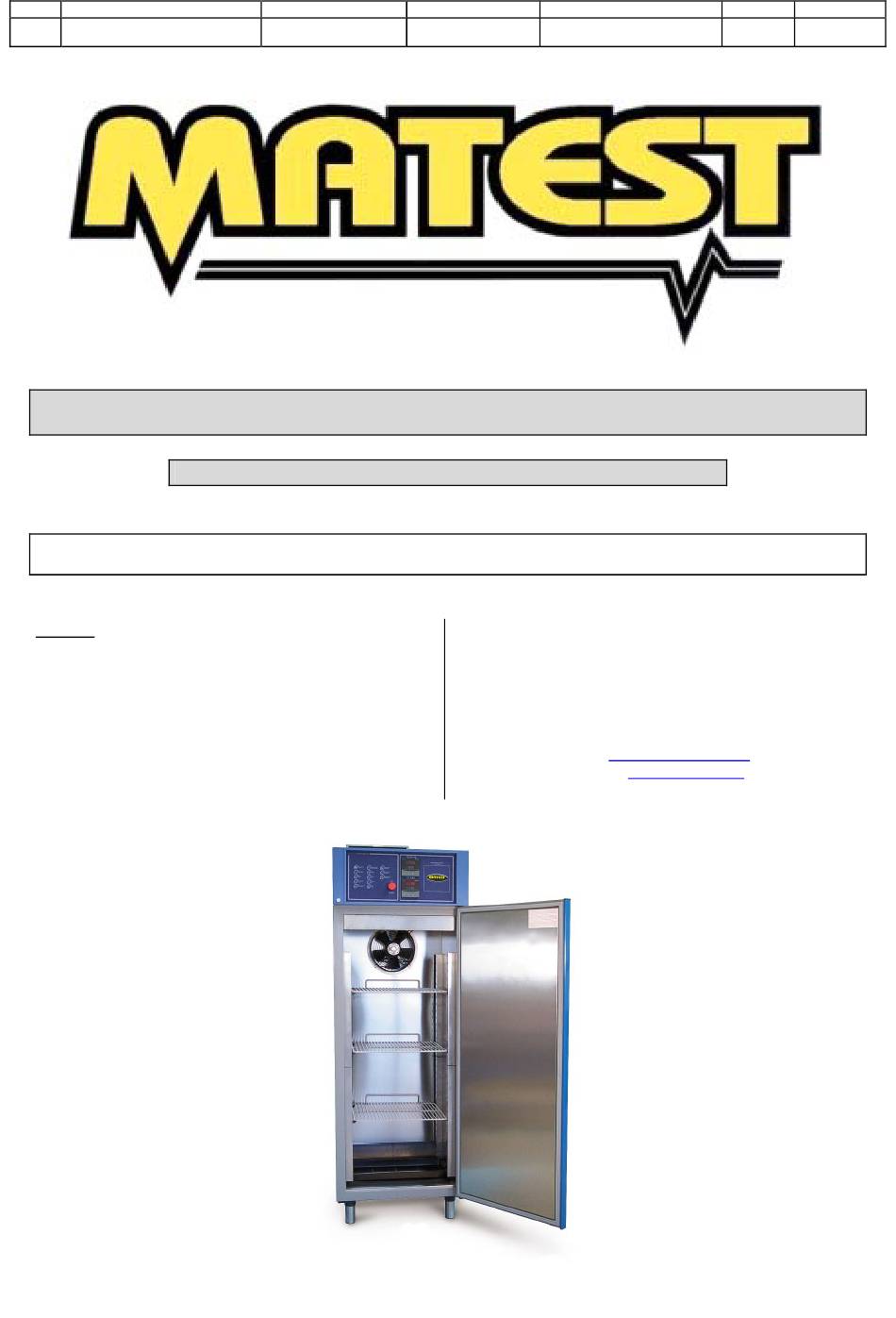

  • Page 1 Descrizione Redatto/Gestito Approvato Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 1/18 INSTRUCTIONS MANUAL CLIMATIC CHAMBER C314/315 MANUAL CODE: DO NOT ATTEMPT TO OPERATE THIS EQUIPMENT BEFORE READING AND COMPREHENDING THE MANUAL IN ALL ITS PARTS USERS MATEST S.r.l.
  • Page 2 Rev. Descrizione Redatto/Gestito Approvato Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 2/18 GENERAL INDEX Chapter 1 GENERAL INFORMATION GENERAL FEATURES IDENTIFICATION APPLICATIONS STRUCTURE AND OPERATING OF THE MACHINE Chapter 2 SAFETY INFORMATION GENERAL SAFETY STANDARDS DANGEROUS PARTS AND RESIDUAL RISKS...

  • Page 3: General Information

    Descrizione Redatto/Gestito Approvato Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 3/18 Chapter 1 GENERAL INFORMATION GENERAL FEATURES • This manual id addressed to the carrier, the installer, the user, the maintenance operator, and the scrapping operator.

  • Page 4: Installation

    Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 4/18 • Any tampering or modifications of the machine (electric, mechanical etc.) that are not allowed by a written agreement of the manufacturer must be considered as not permitted and the manufacturer will not accept to be charged for any damages.

  • Page 5: Electric Connections

    Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 5/18 • The further installations The machine is usually packed shipped in a wooden case that allows an easy moving and transport. The case must be moved by means of a forklift with enough capacity to lift the weight given in this manual for the appliance.

  • Page 6: Machine Features

    Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 6/18 DANGER Connect the ground by the terminal PE (yellow-green) before making any other connections. DANGER Apply a knife switch at the top of the connecting cable of the machine to the power system.

  • Page 7: Switching On The Appliance

    Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 7/18 It allows to turn on or to interrupt the working of the whole appliance. Ventilation push-button It turns on the working of the temperature and humidity control systems and it turns on the inside ventilation.
  • Page 8 Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 8/18 The configuration of the programmed parameters is made in the factory using and introducing values that allow obtaining a proper working of the system. The manufacturer recommends entering the configuration menus of these parameters only after ATTENTION having carefully studied and learned all the indications given in the enclosed instruction manual.

  • Page 9: Routine Maintenance

    Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 9/18 • Act on UP or DOWN buttons of the temperature controller in order to set the value of 35° C. • Activate the “ SEL / ENT “ button to confirm the data.
  • Page 10 Approvato Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 10/18 For any special maintenance operation (repairs, replacements or any other operation not described in this manual), please ask the manufacturer Chapter 8 DIAGNOSIS Some easy to solve and simple problem, which can happen during the working of the appliance, are introduced in this chapter.
  • Page 11 Rev. Descrizione Redatto/Gestito Approvato Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 11/18 Chapter 10 ENCLOSURES GENERAL VIEW OF THE CONTROL PANEL...
  • Page 12 Rev. Descrizione Redatto/Gestito Approvato Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 12/18 ELECTRICAL LAYOUTS...
  • Page 13 Rev. Descrizione Redatto/Gestito Approvato Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 13/18...
  • Page 14 Rev. Descrizione Redatto/Gestito Approvato Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 14/18...
  • Page 15 Rev. Descrizione Redatto/Gestito Approvato Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 15/18...
  • Page 16 Rev. Descrizione Redatto/Gestito Approvato Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 16/18...
  • Page 17 Rev. Descrizione Redatto/Gestito Approvato Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 17/18...
  • Page 18 Rev. Descrizione Redatto/Gestito Approvato Cod.Ident. Pagine Data Em. Manuale Istruzioni Ufficio Tecnico Resp.Tecnico C314.M01.EN.03 03/2009 18/18...

This manual is also suitable for:

C315
