PPP-18i
Portable Ice Fishing Kit
Installation Instructions
This ice fishing kit is designed for use with all Lowrance units, 5"or
smaller.

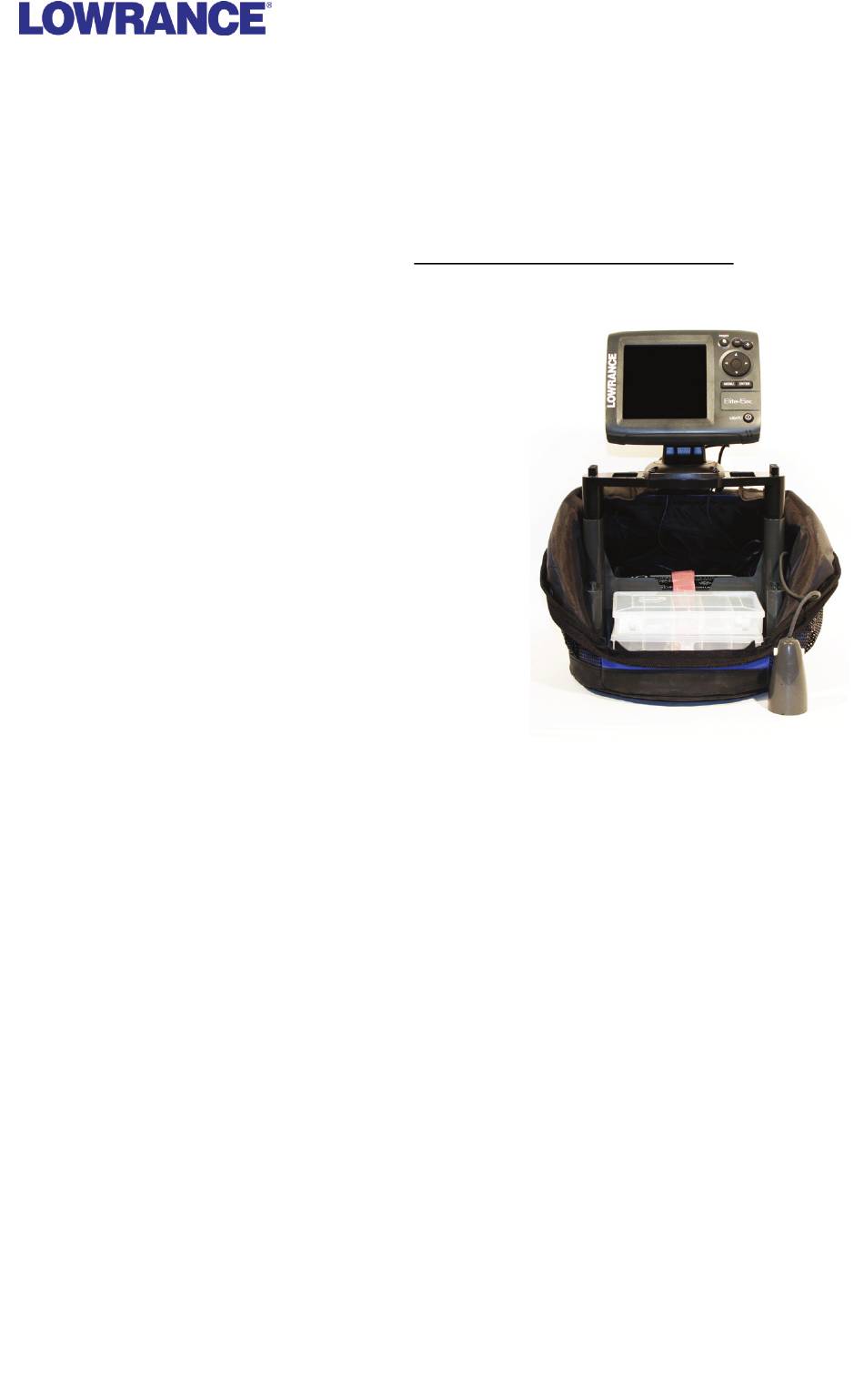

The PPP18i package includes: freeze resis-
tant power pack carry bag, tackle boxes,
rechargeable
gel cell battery, battery
charger, ice fishing transducer, transducer
depth adjustment cord, display unit mount,
hook and loop battery strap, base plate,
accessory attachments and the nuts and
bolts needed to attach your display unit to
the display unit mount.
This power pack can also use an optional
battery adapter (sold separately) that
holds eight "D" size batteries.
NOTE:
The ice fishing display unit bracket is designed to fit mounting brackets
for all Lowrance units 5" or smaller. The ice fishing kit comes with a
uniplug connector. If your unit has blue connectors, you must purchase
a TA-UQ2BL-T Adapter cable (part 000-10052-001).
Tools
You will need a slotted-head (Phillips) screwdriver and a small wrench
or pair of wire pliers to mount the display unit to the height adjustment
mount.

Battery Installation

1. Slide the hook and loop battery strap through the slots on either side
of the battery tray.
1
