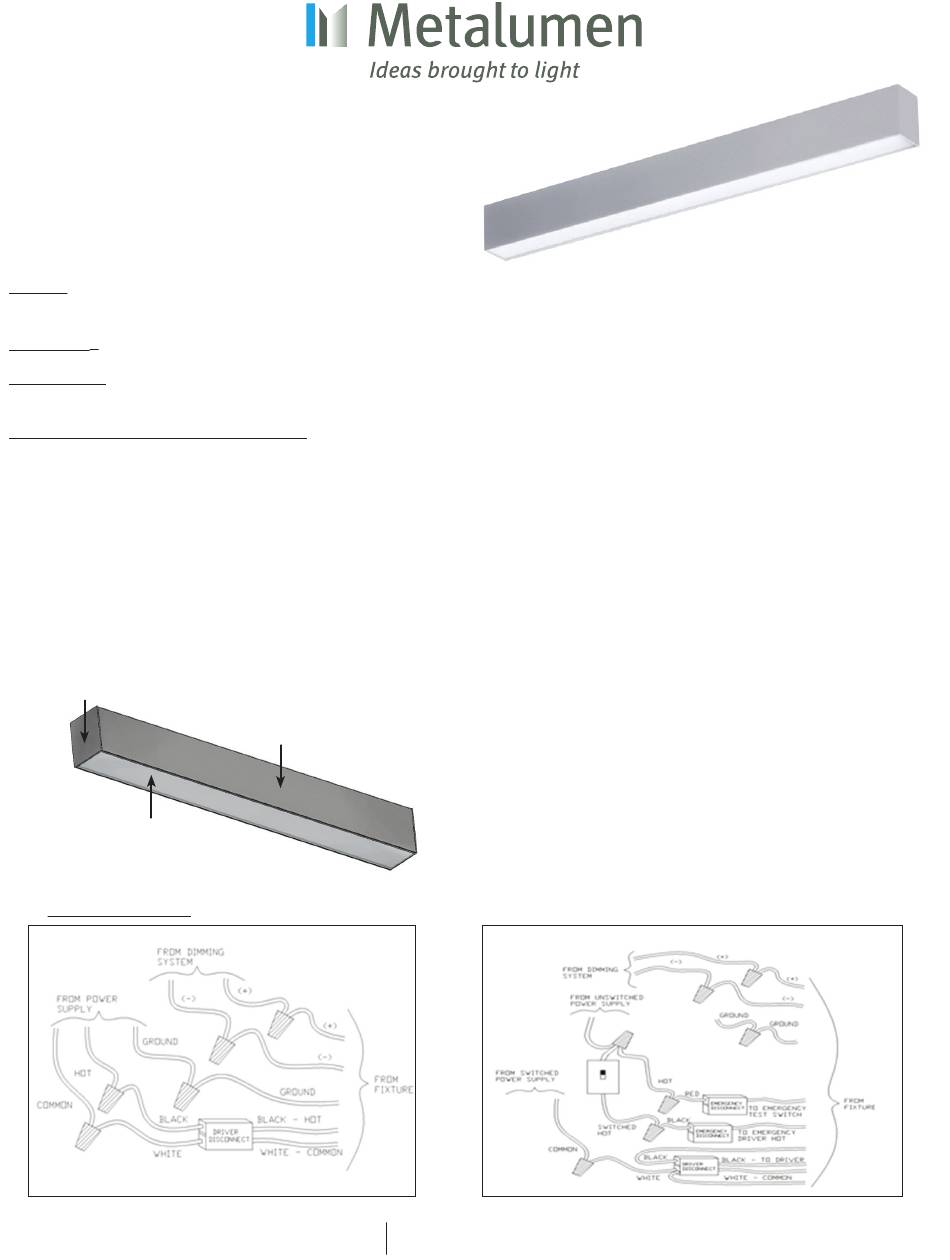

Metalumen Rail RM2D Installation Instructions

IS-0404-01 rev.00
RAIL SURFACE LED

INSTALLATION INSTRUCTIONS

NOTE:

The following instructions provide general guidelines for product installation. For additional information consult
the applicable electrical codes or contact factory directly for support before attempting anything with uncertainty.
CAUTION
:
Do not assemble fixture runs on floor.
WARNING:
Risk of fire and electrical shock. DISCONNECT POWER AT ELECTRICAL PANEL before installing or servicing this
product.

GENERAL SAFETY INSTRUCTIONS:

1. Read all instructions prior to installing this fixture.
2. This product must be installed in accordance with the applicable installation code by a person familiar with the
construction and operation of the product and the hazards involved.
3. All wiring must be performed by a qualified electrician in accordance with national and local building and electrical
codes.
4. This fixture must be suitably grounded for your protection against shock hazards and to assure proper operation.
5. Make sure that the power source conforms to the requirements of this fixture.
6. Based on maximum voltage restrictions for class 2 circuits in Canadian Electrical Code, the output cannot be
accessible. This product has accessible output terminals. This product complies with this requirement since the
installation instruction requires installation in Restricted Access Area.
B
C

Wiring Diagram:

Specifications and design subject to change without notice.
A
Standard Wiring
Mailing Address: P.O. Box 1779, Guelph, ON N1H 6Z9

MAIN PARTS LIST:

A - Luminaire Enclosure
B - End Plate
C - Lens
OTHER PARTS
• Reflector/LED Assembly
570 Southgate Drive, Guelph, ON N1G 4P6
With optional Emergency Pack
T: 1.800.621.6785 | T: 519.822.4381 | F: 519.8224589
www.metalumen.com
Page 1 of 3
