INSTALLATION
INSTRUCTIONS
NOTE:
The following instructions provide general guidelines for product installation. For additional
information consult the applicable electrical codes or contact factory directly for support
before attempting anything with uncertainty.
CAUTION:
Do not assemble fixture runs on floor.
WARNING: Risk of fire and electrical shock. DISCONNECT POWER AT ELECTRICAL PANEL before
installing or servicing this product.
GENERAL SAFETY INSTRUCTIONS:
1. Read all instructions prior to installing this fixture.
2. This product must be installed in accordance with the applicable installation code by a person familiar
with the construction and operation of the product and the hazards involved.
3. All wiring must be performed by a qualified electrician in accordance with national and local building
and electrical codes.
4. This fixture must be suitably grounded for your protection against shock hazards and to assure proper
operation.
5. Make sure that the power source conforms to the requirements of this fixture.
570 Southgate Drive, Guelph, Ontario N1G 4P6
Mailing Address: P.O. Box 1779
Guelph, Ontario N1H 6Z9

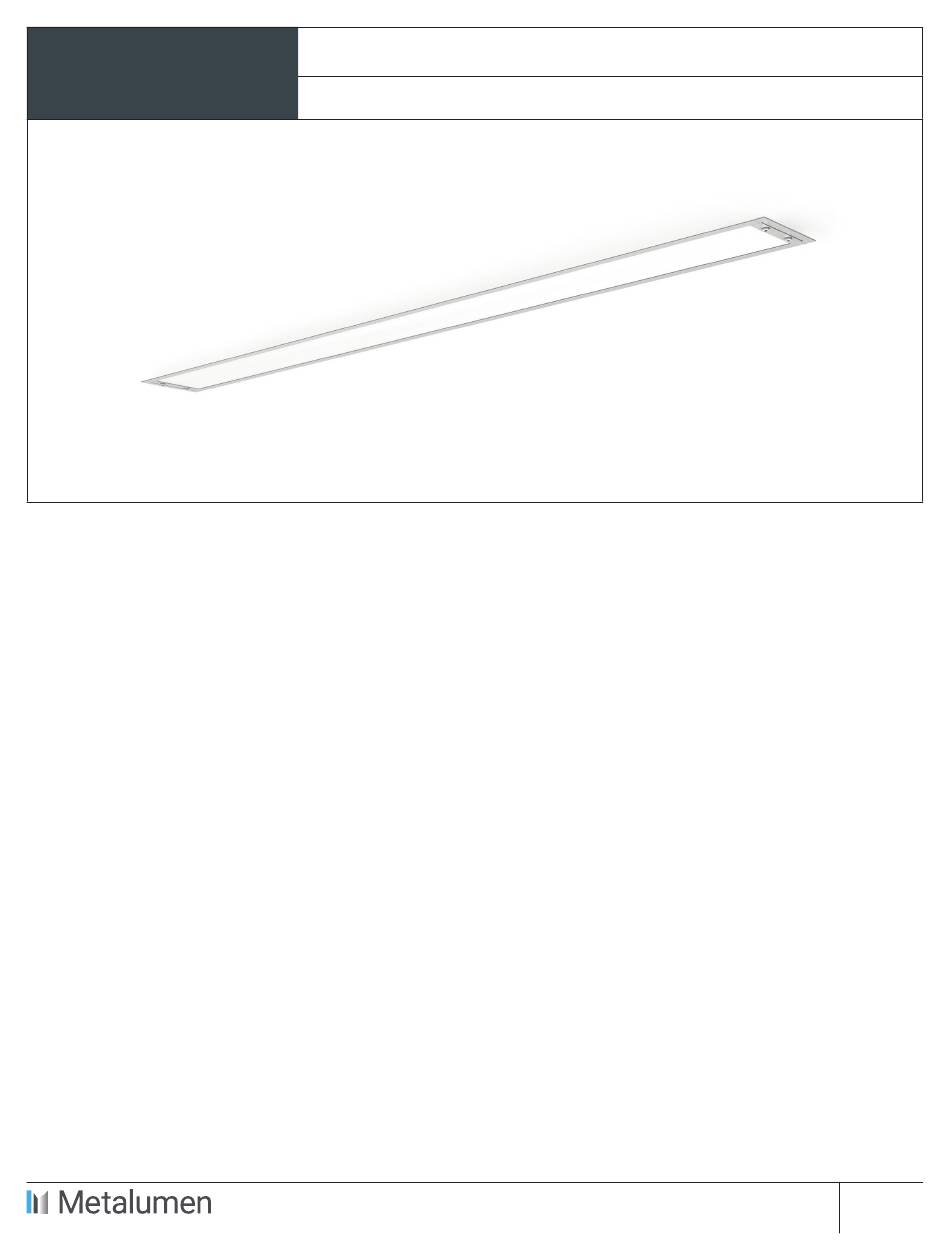

RM4DOD Recessed
Specifications and design subject to change without notice.
T 1.800.621.6785 | T 519.822.4381 | F 519.822.4589
www.metalumen.com
RAIL 4
PAGE 1 OF 6
IS-0260-01 rev.00

Advertisement

loading
Need help?

Need help?

Do you have a question about the RAIL 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metalumen RAIL 4

  • Page 1 RAIL 4 INSTALLATION INSTRUCTIONS RM4DOD Recessed NOTE: The following instructions provide general guidelines for product installation. For additional information consult the applicable electrical codes or contact factory directly for support before attempting anything with uncertainty. CAUTION: Do not assemble fixture runs on floor.
  • Page 2: Installation Instructions

    RM4DOD Recessed RAIL 4 INSTALLATION INSTRUCTIONS PARTS LIST MAIN PARTS LIST A. Luminaire Enclosure B. Mounting Bracket C. End Plate D. Lens E. End Screw OTHER PARTS • Reflector • Lamp (supplied or by others) Important note: See fixture size and recommended ceiling/canopy opening diagram at page 6 of this document.
  • Page 3 RM4DOD Recessed RAIL 4 INSTALLATION INSTRUCTIONS STEP-BY-STEP INSTRUCTIONS STEP 1. Remove fixture packaging; note marked STEP 2. Remove end screws (E) and end plates (C). supply wires coming out at one end of the Keep all parts. luminaire. STEP 3. Remove lens (D) starting at one end. Pull STEP 4.
  • Page 4 RM4DOD Recessed RAIL 4 INSTALLATION INSTRUCTIONS STEP-BY-STEP INSTRUCTIONS STEP 5. Bring electrical supply to the fixture as STEP 6. Identify mounting screws (start at one needed. Make sure all mounting brackets (B) are end of the fixture). Begin tightening the mounting parallel to the luminaire enclosure (A) and insert screws.
  • Page 5 RM4DOD Recessed RAIL 4 INSTALLATION INSTRUCTIONS STEP-BY-STEP INSTRUCTIONS STEP 9. Re-attach lens. Start with one side STEP 10. Re-attach end plates with (4) end screws. first and close the other side starting from the corner. Make sure lens gaskets are in place and compressed between lens and fixture housing.
  • Page 6 RM4DOD Recessed RAIL 4 INSTALLATION INSTRUCTIONS Fixture size and recommended ceiling/canopy opening Diagram: Specifications and design subject to change without notice. PAGE 6 OF 6 570 Southgate Drive, Guelph, Ontario N1G 4P6 T 1.800.621.6785 | T 519.822.4381 | F 519.822.4589 IS-0260-01 rev.00...
  • Page 7: Joining Instructions

    RAIL 4 JOINING INSTRUCTIONS RM4DOD Recessed NOTE: The following instructions provide general guidelines for product installation. For additional information consult the applicable electrical codes or contact factory directly for support before attempting anything with uncertainty. CAUTION: Do not assemble fixture runs on floor.
  • Page 8 RM4DOD Recessed RAIL 4 JOINING INSTRUCTIONS PARTS LIST MAIN PARTS LIST A. Luminaire Enclosure B. Mounting Bracket C. End Plate D. Lens E. End Screw F. Joiner Plate (Middle and Start Units Only) OTHER PARTS • Reflector • Lamp (supplied or by others) Important note: See fixture size and recommended ceiling/canopy opening diagram at page 7 of this document.
  • Page 9 RM4DOD Recessed RAIL 4 JOINING INSTRUCTIONS STEP-BY-STEP INSTRUCTIONS STEP 1. Remove fixture packaging; note marked STEP 2. Install Start luminaire following standard supply wires coming out at one end of the installation instructions. Do not apply power to Start luminaire and wires for row mounting the fixture.
  • Page 10 RM4DOD Recessed RAIL 4 JOINING INSTRUCTIONS STEP-BY-STEP INSTRUCTIONS STEP 5. Remove lens (D) from the next fixture to STEP 6. Remove reflector mounting screws and be installed in the row (Middle or End luminaire). reflector. Note fixtures with optional emergency Starting at one end;...
  • Page 11 RM4DOD Recessed RAIL 4 JOINING INSTRUCTIONS STEP-BY-STEP INSTRUCTIONS STEP 9. Begin tightening the mounting screws. STEP 10. Perform electrical wiring inside the Mounting brackets will swing out and retain fixture and re-attach reflector with (2) mounting the luminaire in place. Continue to tighten the screws.
  • Page 12 RM4DOD Recessed RAIL 4 JOINING INSTRUCTIONS STEP-BY-STEP INSTRUCTIONS STEP 13. Re-attach joiner plate with (4) end STEP 14. Joined luminaires. Complete remaining screws. fixtures installation as needed. Specifications and design subject to change without notice. PAGE 6 OF 7 570 Southgate Drive, Guelph, Ontario N1G 4P6 T 1.800.621.6785 | T 519.822.4381 | F 519.822.4589...
  • Page 13 RM4DOD Recessed RAIL 4 JOINING INSTRUCTIONS Fixture size and recommended ceiling/canopy opening Diagram: Specifications and design subject to change without notice. PAGE 7 OF 7 570 Southgate Drive, Guelph, Ontario N1G 4P6 T 1.800.621.6785 | T 519.822.4381 | F 519.822.4589 IS-0260-02 rev.00...
